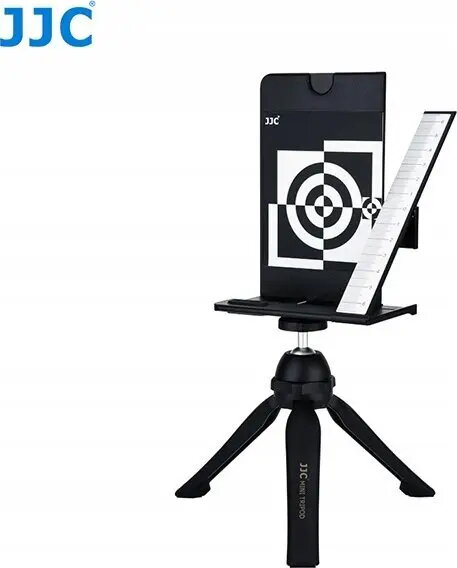

Calibration/Autofocus Fine-Tuning Card for Camera JJC SB4710

The Calibration/Autofocus Fine-Tuning Card for Camera JJC SB4710 is a flat, high-contrast reference target designed to assist with autofocus calibration and verification for DSLR and mirrorless cameras. The card features clear center target markings, distance scales and contrasting patterns that make it easier to detect front- or back-focus tendencies and to perform micro-adjustments on compatible camera bodies and lenses. It is a portable, low-profile tool suitable for studio benches or field use and helps achieve consistent sharpness across focal lengths and apertures when performing AF fine-tuning procedures.

Advantages

The card provides precise visual cues with high-contrast printing that improve repeatability when testing autofocus. Its compact, rigid construction ensures the target remains flat and stable during measurements. The marked center and graduated scale enable consistent positioning and allow photographers and technicians to quantify focus error for informed micro-adjustments. Because it is non-electronic and easy to transport, the card is suitable for use in a variety of lighting conditions and setups.

Suitable for

• AF calibration and micro-adjustment of DSLR and mirrorless camera bodies
• Troubleshooting lenses for front-focus or back-focus issues
• Regular maintenance checks for rental, studio, and pro-gear inventories
• Technical training and workshops on autofocus accuracy

Key specifications

• High-contrast printed target with central focus marker and graduated scale
• Rigid, flat construction to maintain stable reference surface
• Portable, low-profile design for studio and field use
• Suitable for use with a wide range of focal lengths and apertures
• Non-electronic, durable material resistant to light handling

How to use

Place the card on a stable, level surface at a recommended distance appropriate for the lens focal length being tested (consult the camera or lens manual for suggested ranges). Align the camera so the central autofocus point targets the card’s center marker, and ensure the card fills a suitable portion of the frame to evaluate focus precisely. Use a tripod and mirror lock-up or electronic shutter where available to minimize camera movement. Take a sequence of test shots, check focus on the resulting images at 100% magnification, and record any consistent front- or back-focus offset. Apply micro-adjustments in the camera’s AF fine-tune menu or service calibration procedures until the focus aligns with the central target.

Usage recommendations

Allow the card and camera to acclimate to ambient temperature and avoid extreme angles of incidence from directional light. For repeatable results, perform tests using the same focal length, aperture and focus point, and keep the camera on a tripod at a fixed distance. Re-check calibration after changing major lenses or if working across a broad range of apertures or focal lengths.
