Jonsbo FR-502 ARGB 120 mm case fan

Name: Jonsbo FR-502 ARGB 120 mm FR-502
Brand: Jonsbo
SKU: 7210269
Price: 15.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Jonsbo FR-502 ARGB 120 mm PC case fan — 120×25 mm, 600–1500 RPM, 52.4 CFM, 0.95 mmH2O

Jonsbo FR-502 ARGB 120 mm case fan Photo 1

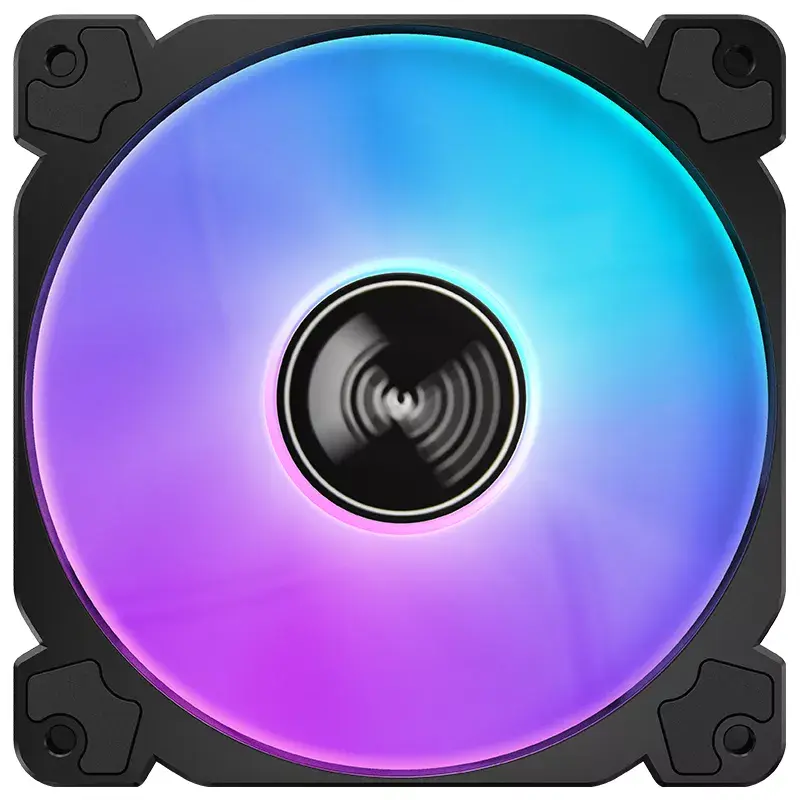

Jonsbo FR-502 ARGB 120 mm case fan Photo 2

Jonsbo FR-502 ARGB 120 mm case fan Photo 3

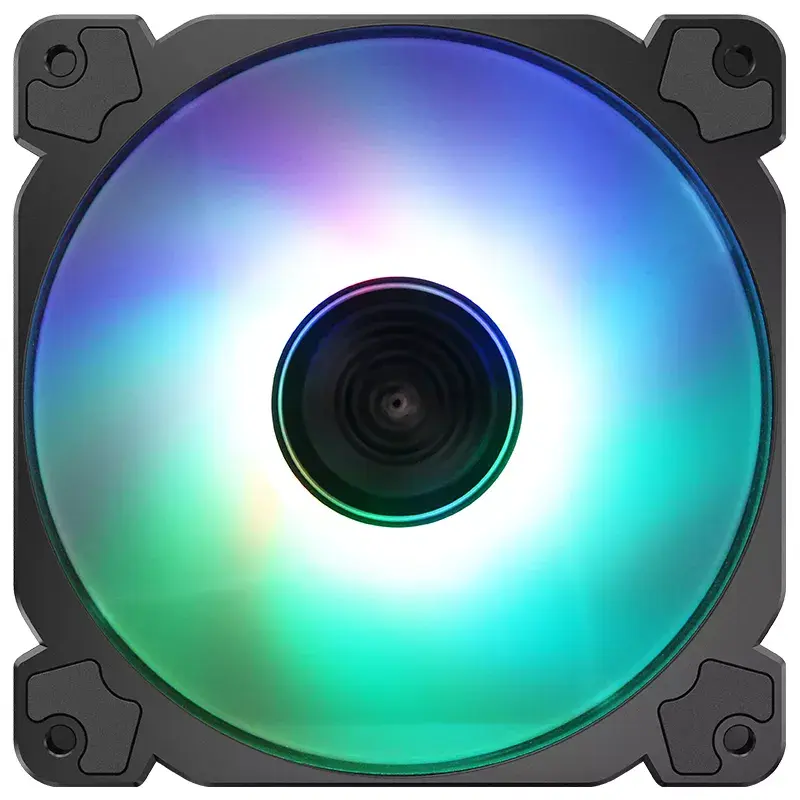

Jonsbo FR-502 ARGB 120 mm case fan Photo 4

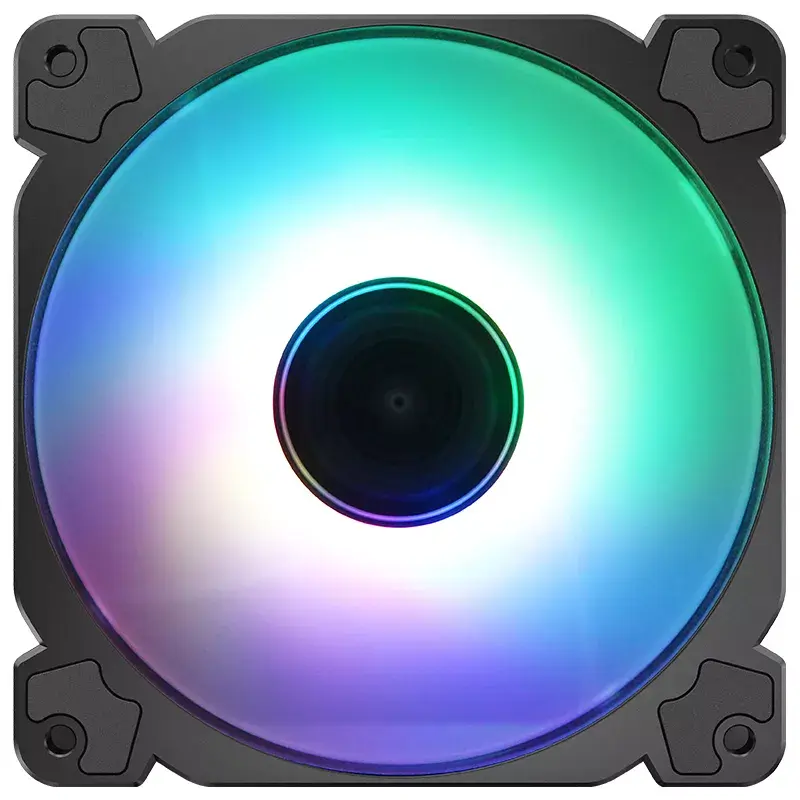

Jonsbo FR-502 ARGB 120 mm case fan Photo 5

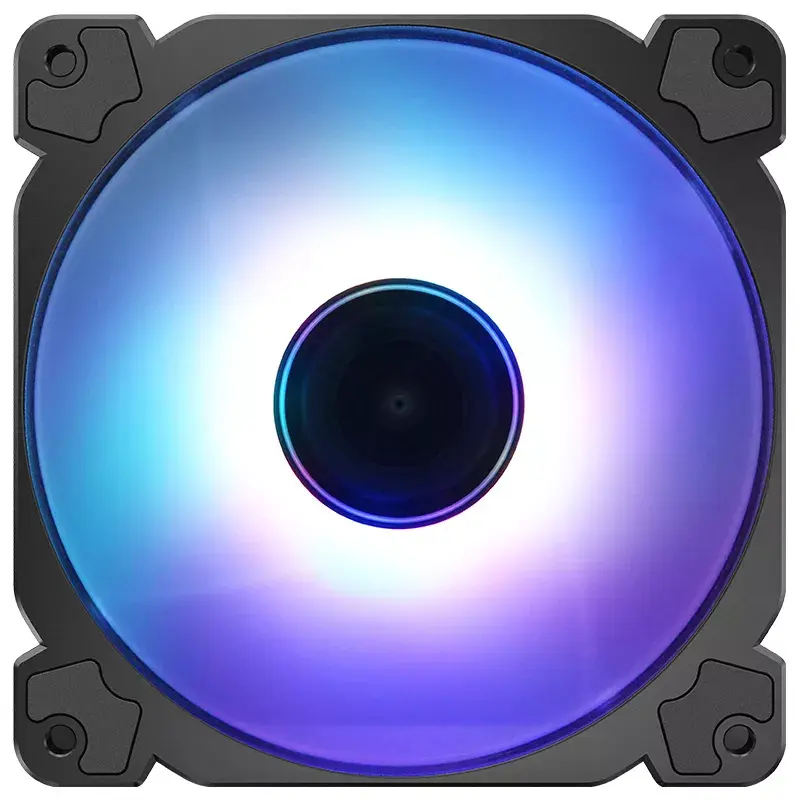

Jonsbo FR-502 ARGB 120 mm case fan Photo 6

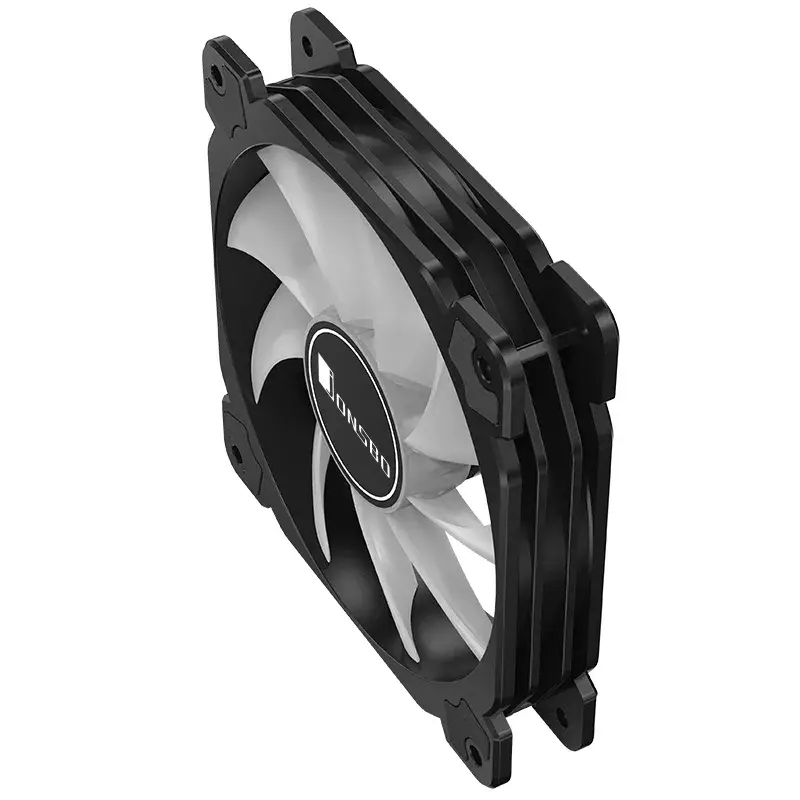

Jonsbo FR-502 ARGB 120 mm case fan Photo 7

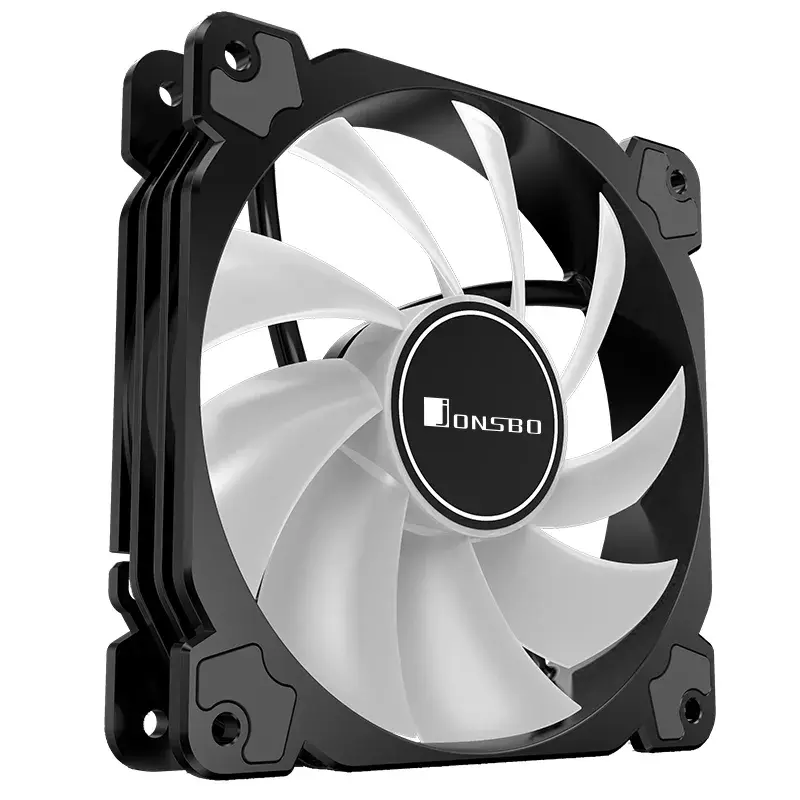

Jonsbo FR-502 ARGB 120 mm case fan Photo 8

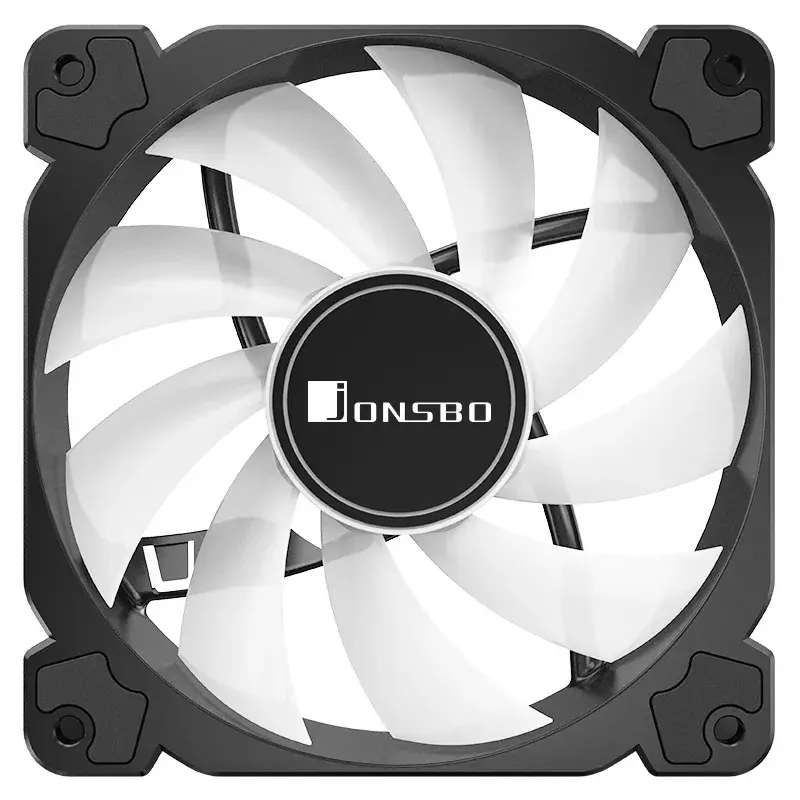

Jonsbo FR-502 ARGB 120 mm case fan Photo 9

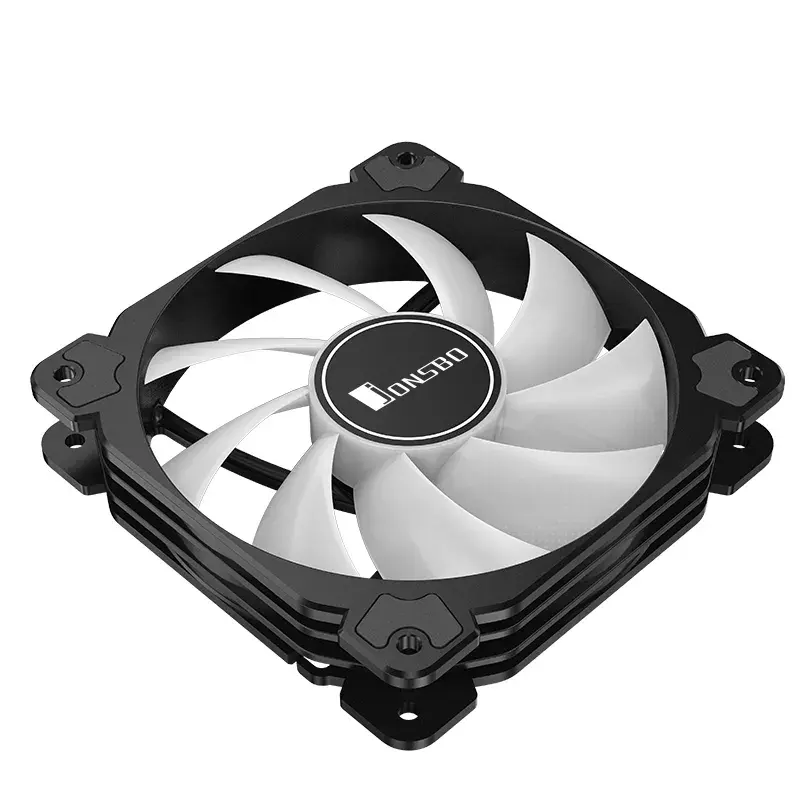

Jonsbo FR-502 ARGB 120 mm case fan Photo 10

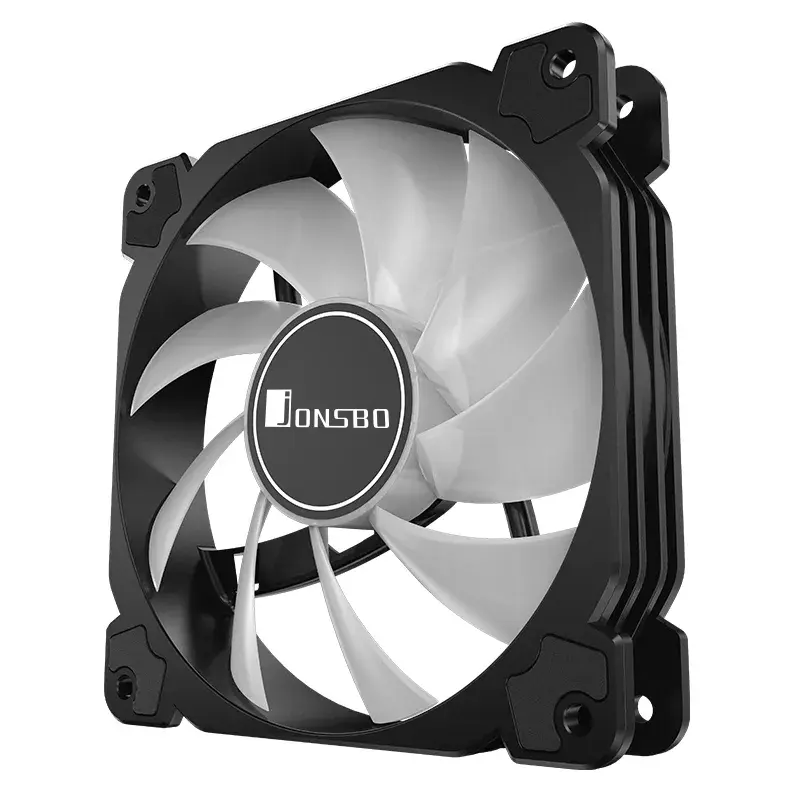

Jonsbo FR-502 ARGB 120 mm case fan Photo 11

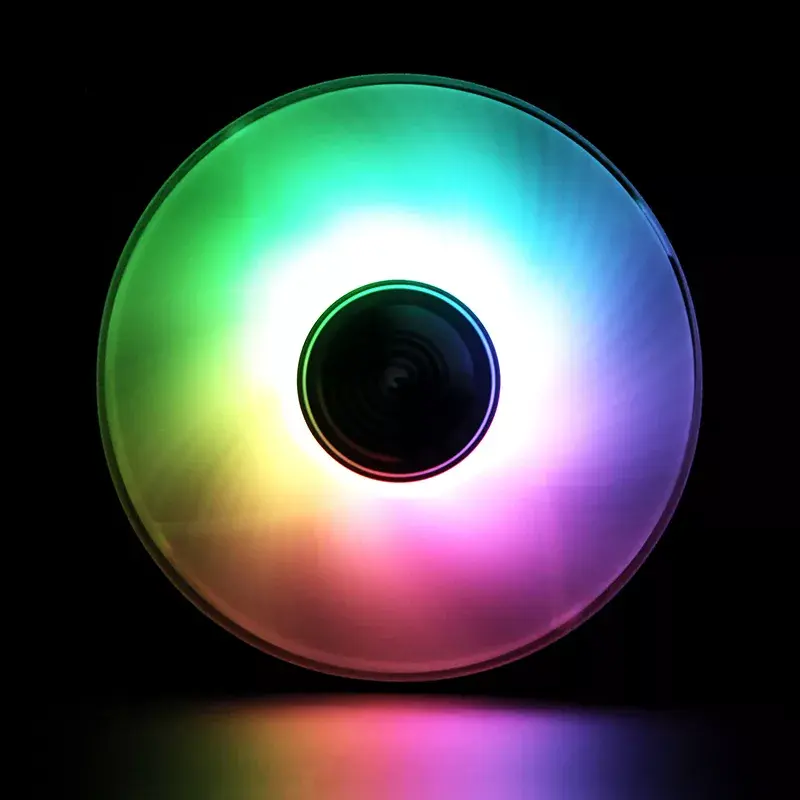

Jonsbo FR-502 ARGB 120 mm case fan Photo 12

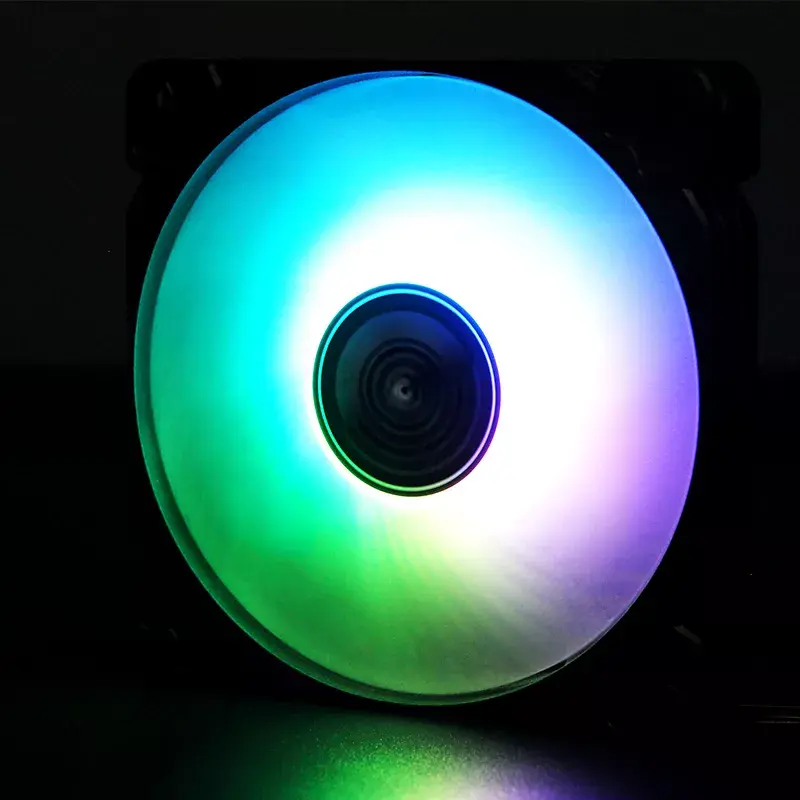

Jonsbo FR-502 ARGB 120 mm case fan Photo 13

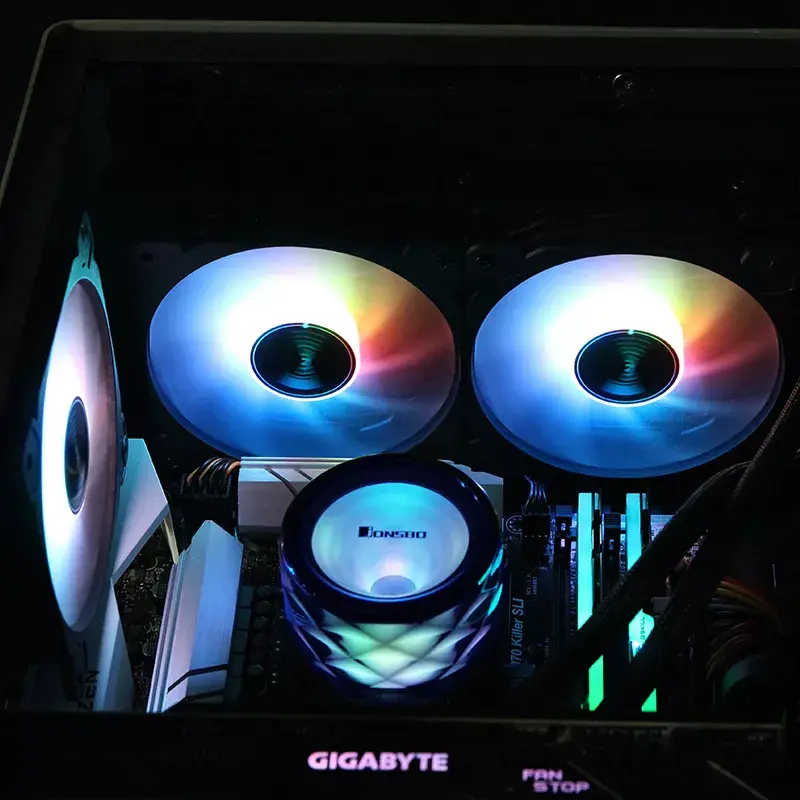

Jonsbo FR-502 ARGB 120 mm case fan Photo 14

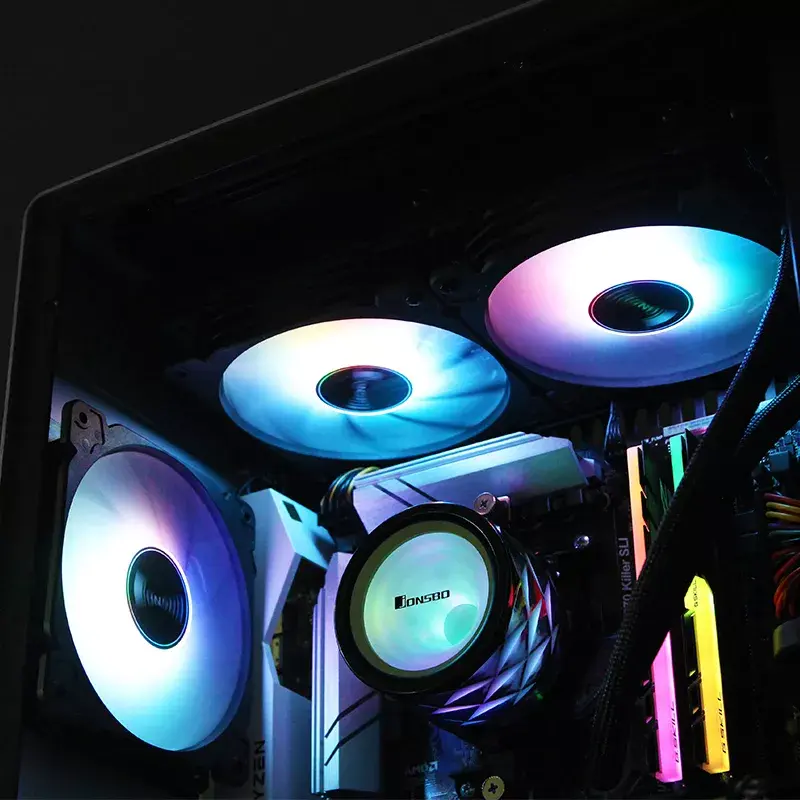

Jonsbo FR-502 ARGB 120 mm case fan Photo 15

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Jonsbo FR-502 ARGB is a 120 mm computer case fan with ARGB lighting, 120×25 mm frame and 12 V DC supply. It operates between 600 and 1500 RPM, delivering up to 52.4 CFM airflow and 0.95 mmH2O static pressure. Noise ranges from 17.5 to 31.2 dB. Suited for case ventilation, intake/exhaust roles and improving system airflow in desktop PCs.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 7210269

Manufacturer: Jonsbo

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.19 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Jonsbo FR-502 ARGB is a 120 mm computer case fan designed for desktop PC ventilation and chassis airflow management. The fan uses a 120×25 mm frame and a 12 V DC supply, with a speed range of 600–1500 RPM. It provides up to 52.4 CFM of airflow and a maximum static pressure of 0.95 mmH2O, while acoustic output ranges from 17.5 to 31.2 dB. The model features addressable RGB (ARGB) lighting and is available in black and white finishes.

Advantages

The FR-502 ARGB combines a standard 120 mm form factor with ARGB illumination for visual customization while maintaining performance-focused airflow and static pressure figures suitable for general chassis cooling. Its broad RPM range allows quieter operation at low loads and increased cooling capacity when needed. The compact 120×25 mm profile ensures compatibility with most PC cases and radiator installations that accept 120 mm fans.

Suitable for

Case intake and exhaust in desktop towers
Supplementary cooling for GPUs and CPU coolers with 120 mm mounting
Replacing or upgrading standard 120 mm chassis fans
Systems where ARGB lighting integration is required

Key specifications

Fan diameter: 120 mm
Frame thickness: 25 mm
Speed range: 600–1500 RPM
Maximum airflow: 52.4 CFM
Maximum static pressure: 0.95 mmH2O
Noise level: 17.5–31.2 dB
Power supply: 12 V DC
Available colours: Black, White
Net weight: 0.131 kg

How to use

Install the Jonsbo FR-502 ARGB in any standard 120 mm mounting location inside the PC case, ensuring correct airflow direction for intake or exhaust according to system design. Connect the fan power to a 3- or 4-pin fan header or compatible hub that provides 12 V DC, and connect the ARGB lighting cable to an addressable RGB header or controller compatible with your motherboard or lighting hub. Secure the fan with the supplied screws or suitable mounting hardware and verify the fan spins freely before powering the system.

Usage recommendations

For balanced performance and acoustics, operate the fan at lower RPM during light workloads and allow higher speeds during gaming or heavy rendering. When installing multiple fans, maintain consistent airflow orientation to create clear intake and exhaust paths. Use motherboard fan control or a PWM hub to adjust speeds based on temperature thresholds; ensure the ARGB controller is compatible with your system's addressable RGB standard.

Specifications

Type:: Fan
Fan diameter:: 120 mm
Weight:: 0.131 kg
Product colour:: Black, White

All features

Performance

Type:: Fan
Fan diameter:: 120 mm
Noise level (low speed):: 17.5 dB
Noise level (high speed):: 31.2 dB
Rotational speed (min):: 600 RPM
Rotational speed (max):: 1500 RPM
Maximum airflow:: 52.4 cfm
Minimum airflow (imperial):: 19.6 cfm
Maximum air pressure:: 0.95 mmH2O
Suitable location:: Computer case
Quantity per pack:: 1 pc(s)

Design

Product colour:: Black, White
Fan connector:: 3-pin + 4-pin

Weight & dimensions

Weight:: 0.131 kg
Height:: 25 mm
Width:: 120 mm
Depth:: 120 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 4.2 W
Rated current:: 0.35 A
Voltage:: 12 DC
