Heatsink Jonsbo HX6250

Name: Heatsink Jonsbo HX6250 14 cm HX-6250
Brand: Jonsbo
SKU: 10820735
Price: 61.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Heatsink Jonsbo HX6250 14 cm Black 700-1800 RPM 28-38 dB

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Jonsbo HX6250 is a black heatsink featuring a 14 cm fan with a speed range of 700 to 1800 RPM. It operates quietly at noise levels between 28 dB and 38 dB, providing a maximum airflow of 90.2 CFM. With dimensions of 121 mm width, 144 mm depth, and 162 mm height, it is suitable for various PC builds.

Available for order: 50 pcs.

Warranty: 2 Years

SKU: 10820735

Manufacturer: Jonsbo

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.30 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

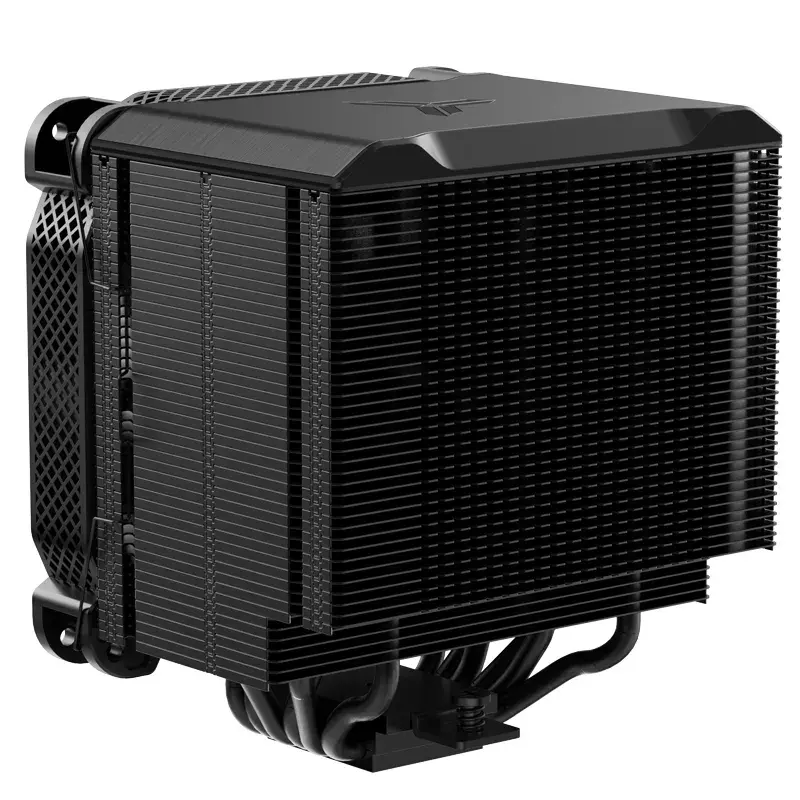

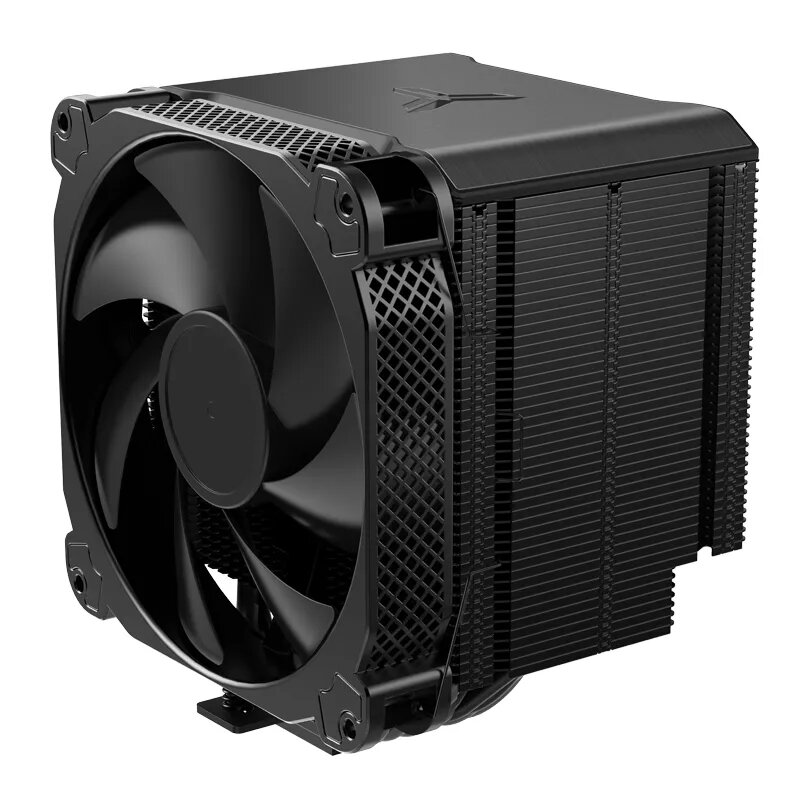

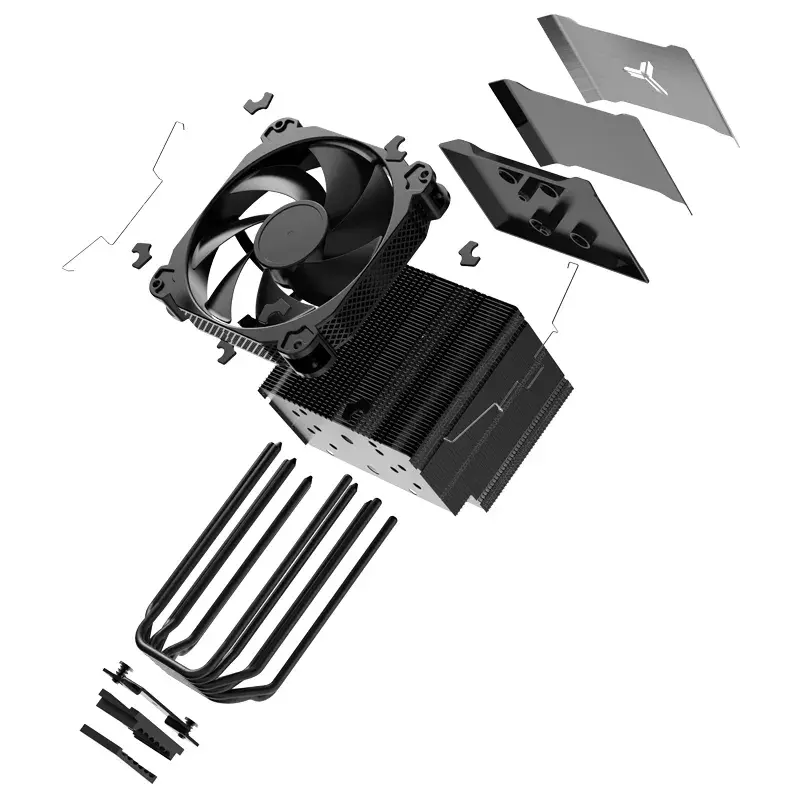

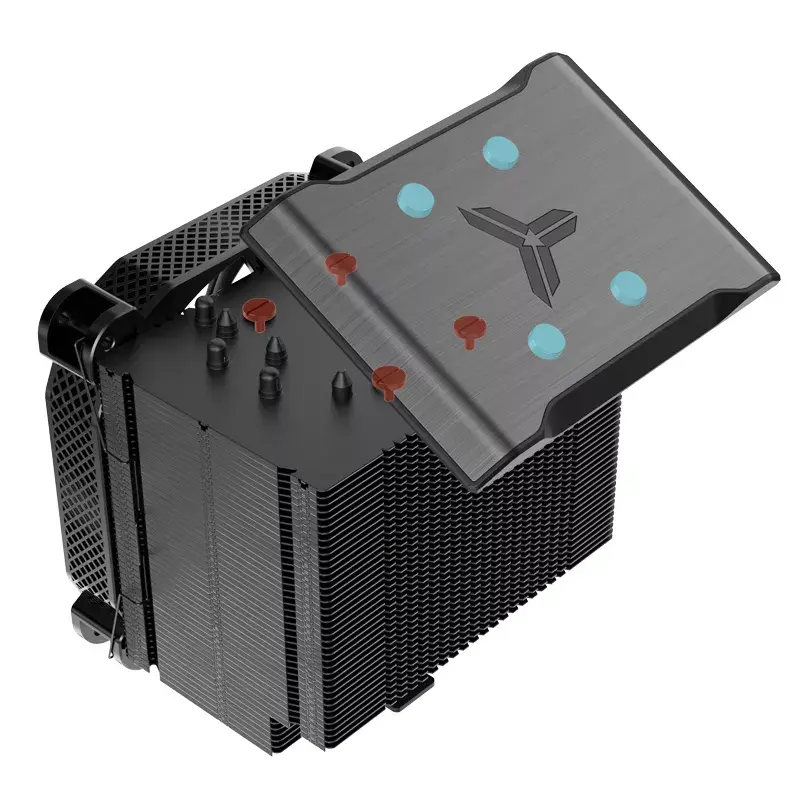

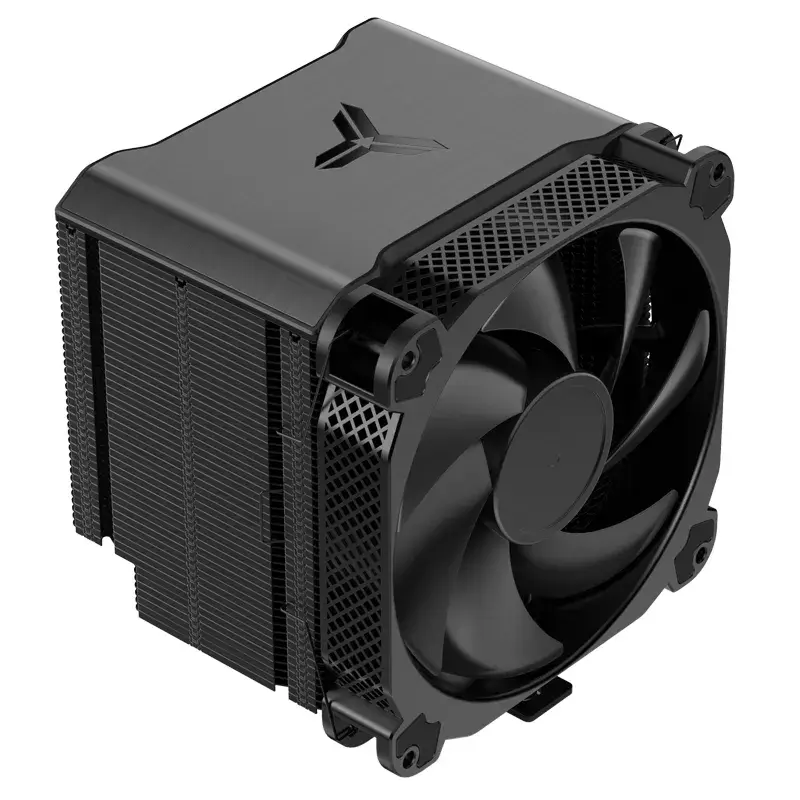

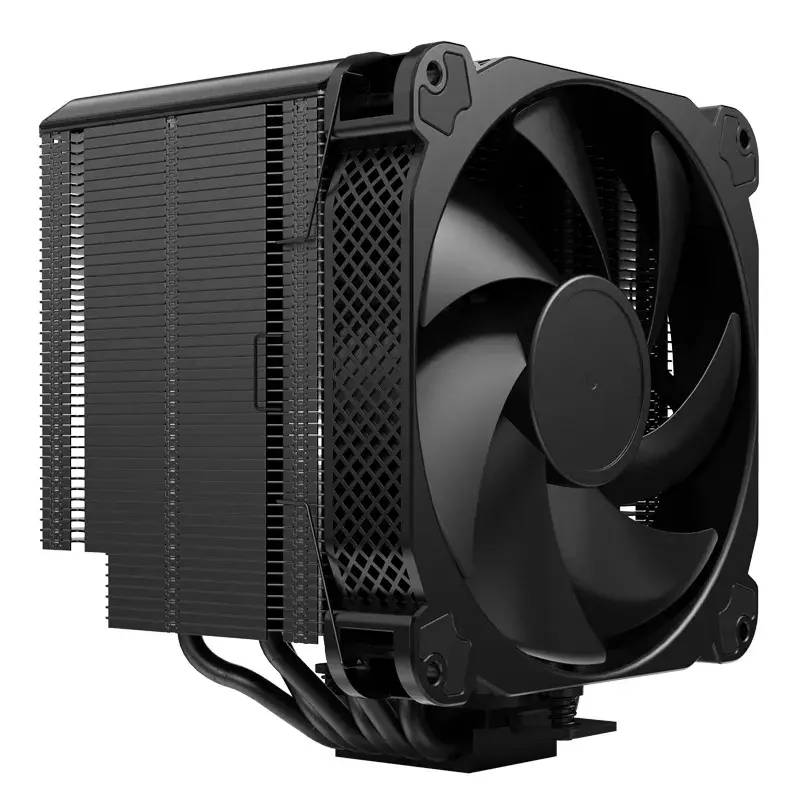

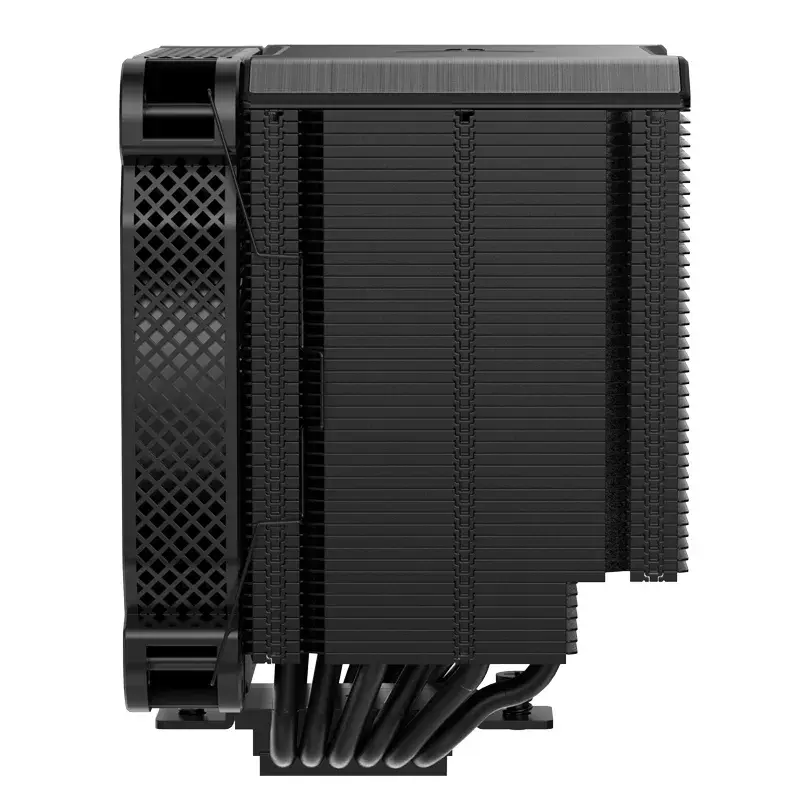

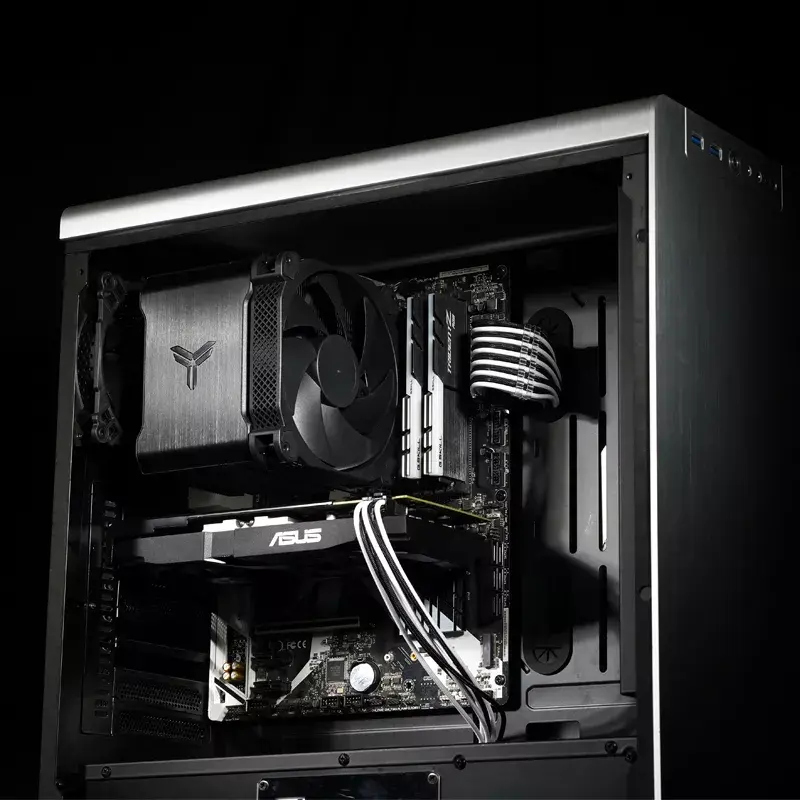

Jonsbo HX6250 is a single-tower black heatsink designed for CPU cooling in a variety of PC builds. The cooler uses six heat pipes, an all-copper brazed base and a graphene coating across the cooler to support a thermal design power (TDP) of up to 250 W. It includes a 140 mm fan with a variable speed range from 700 to 1800 RPM, a maximum airflow of 90.2 CFM and measured noise levels between 28 and 38 dB. The heatsink dimensions are 121 mm (width) × 144 mm (depth) × 162 mm (height) and the total weight is 1.15 kg. The eccentric tower layout increases clearance for memory modules while the 140 mm fan balances airflow and acoustic performance.

Advantages

The heatsink combines six heat pipes and an all-copper brazed base for effective heat transfer, while the graphene coating helps with surface thermal conductivity and corrosion resistance. The 140 mm fan achieves relatively high airflow up to 90.2 CFM at the upper RPM range while keeping operating noise within 28–38 dB. Its single-tower, offset design improves RAM compatibility in compact builds and the supplied fan speed range allows tuning between quiet and higher-performance operation. Compact external dimensions make the unit suitable for many standard mid-tower and compact cases.

Suitable for

Cooling desktop CPUs in gaming and workstation builds where up to 250 W TDP cooling is required
Systems requiring a 140 mm fan solution with a balance of airflow and low noise

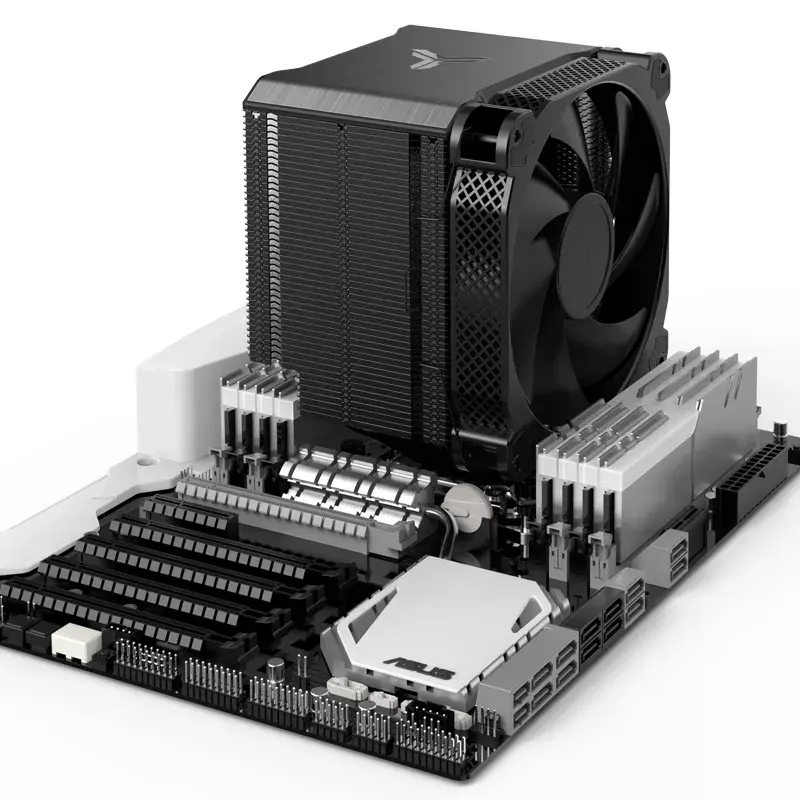

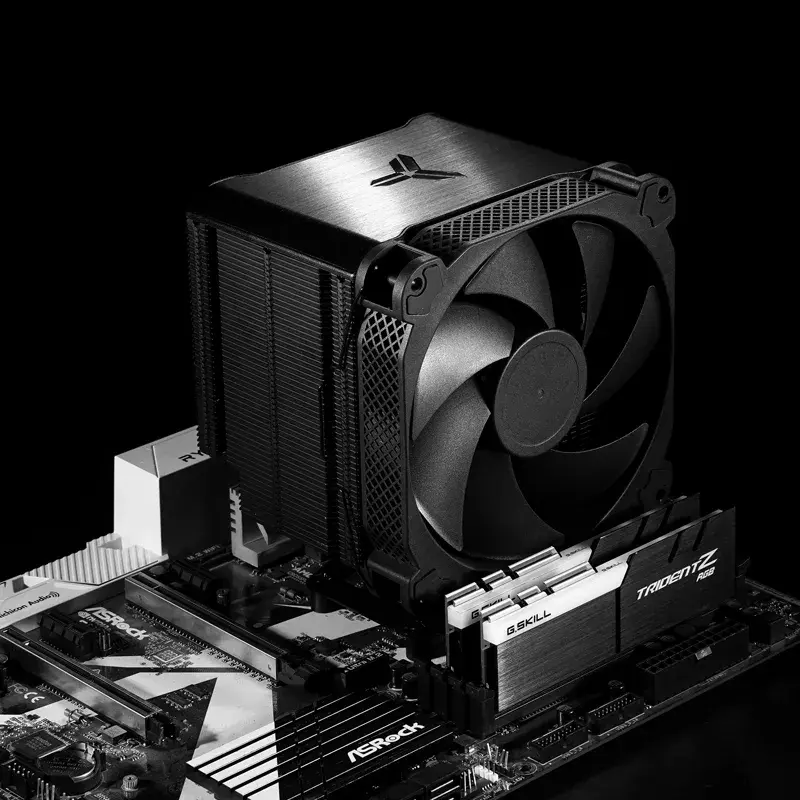

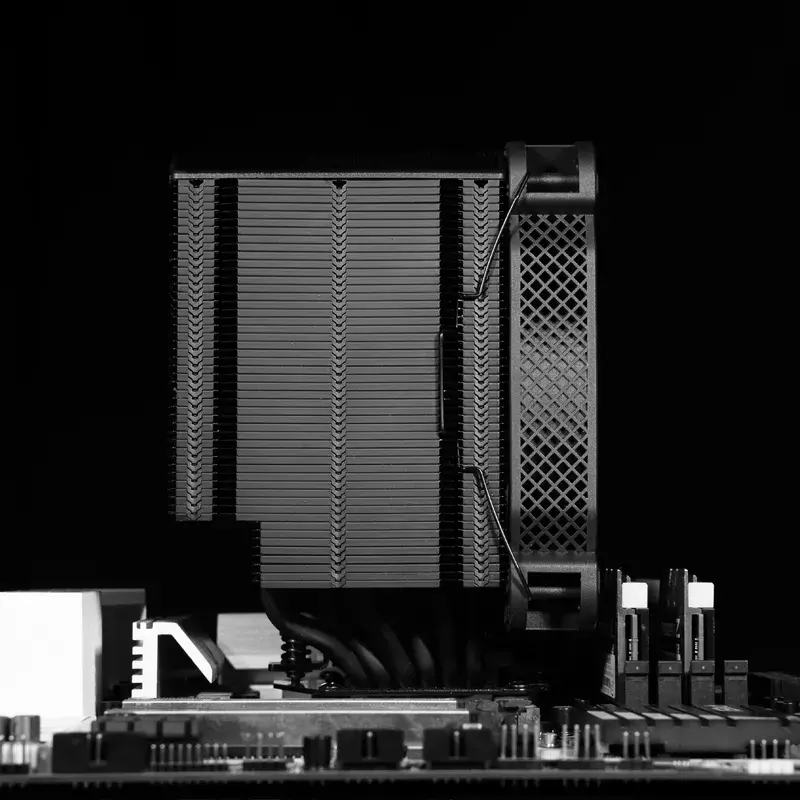

Builds that need additional RAM clearance provided by an eccentric tower layout
PC upgrades where a compact cooler with a 162 mm height is needed

Key specifications

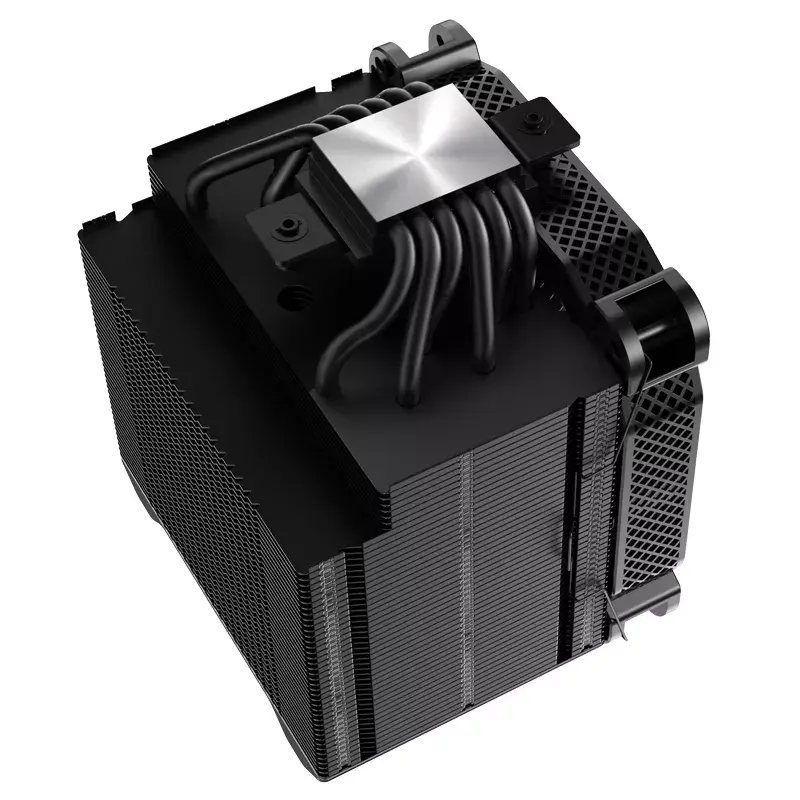

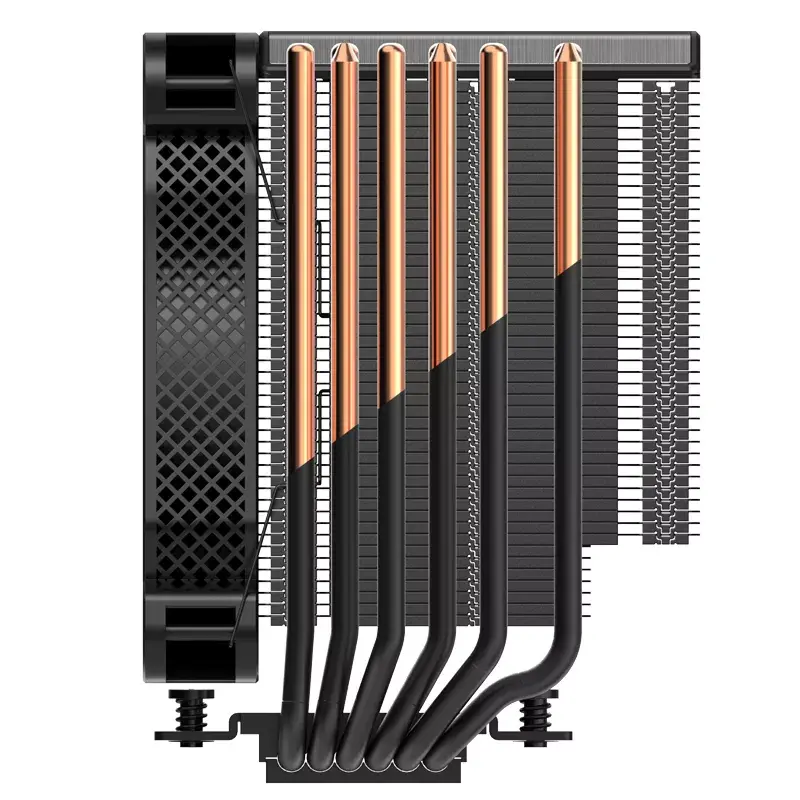

Type: single-tower heatsink with 6 heat pipes and all-copper brazed base

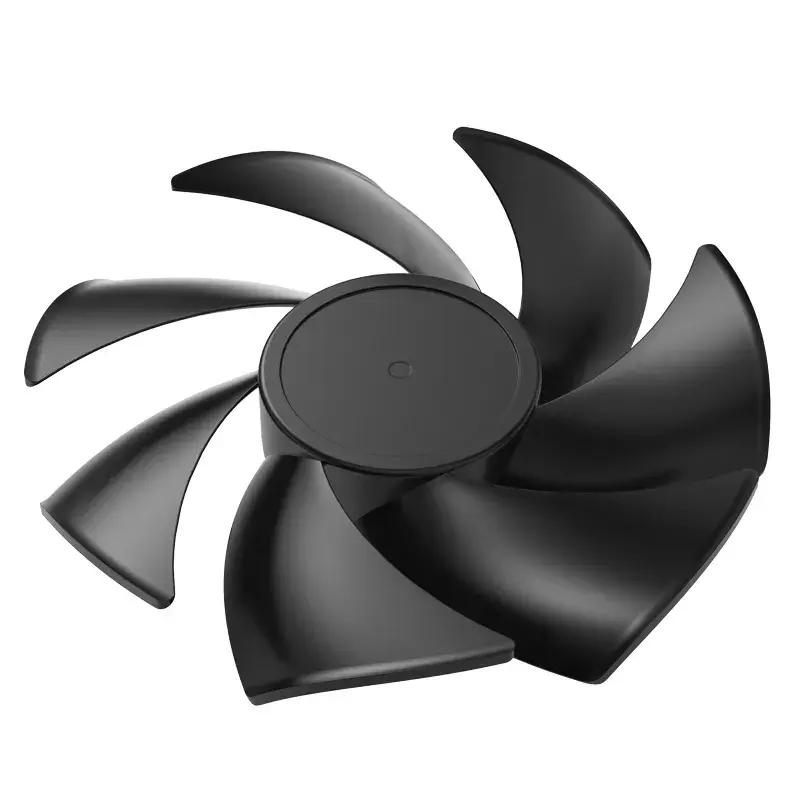

Fan diameter: 140 mm, speed 700–1800 RPM
Maximum airflow: 90.2 CFM
Noise level: 28–38 dB
Thermal Design Power (TDP): 250 W
Dimensions (W×D×H): 121 × 144 × 162 mm
Weight: 1.15 kg
Colour: black
Compatibility: supports a wide range of modern CPU sockets including AM4, AM5, LGA 1700, LGA 2011 and LGA 1200/115x series

How to use

Install the heatsink following the motherboard and cooler mounting instructions: prepare the CPU surface by cleaning old thermal paste, apply a thin, even layer of new thermal paste, mount the heatsink onto the socket using the supplied brackets and screws, and secure it evenly to ensure good contact. Connect the 4-pin fan power cable to the CPU_FAN or AIO_FAN header on the motherboard to enable PWM control of fan speed. Ensure the cooler orientation provides sufficient clearance for memory modules and case side panels before finalizing installation.

Usage recommendations

For optimal results, use PWM fan control in the BIOS or the motherboard software to balance noise and cooling performance. Monitor CPU temperatures under load after installation and, if necessary, adjust fan curves to maintain target temperatures. Ensure adequate case airflow and clean dust filters regularly to preserve cooling efficiency and keep noise levels low.

Specifications

Type:: Heatsink/Radiatior
Fan diameter:: 140 mm
Weight:: 1.15 kg
Thermal Design Power (TDP):: 250 W
Supported processor sockets:: Socket AM4, LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1150 (Socket H3), Socket AM5
Product colour:: Black

All features

Performance

Type:: Heatsink/Radiatior
Fan diameter:: 140 mm
Supported processor sockets:: Socket AM4, LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1150 (Socket H3), Socket AM5
Noise level (low speed):: 28 dB
Noise level (high speed):: 38 dB
Rotational speed (min):: 700 RPM
Rotational speed (max):: 1800 RPM
Maximum airflow:: 90.2 cfm
Minimum air pressure:: 0.46 mmH2O
Maximum air pressure:: 2.74 mmH2O
Suitable location:: Processor
Fan speed (max):: 1800 RPM
Fan speed (min):: 700 RPM
Quantity per pack:: 1 pc(s)
Fan noise level (min):: 28 dB
Fan noise level (max):: 38 dB

Design

Product colour:: Black
Number of fans:: 1 fan(s)
Number of heat pipes:: 6
Fan connector:: 4-pin
Number of fan blades:: 7

Weight & dimensions

Fan thickness:: 25 mm
Weight:: 1.15 kg
Height:: 162 mm
Width:: 121 mm
Depth:: 144 mm
Fan dimensions (W x D x H):: 140 x 140 x 25

Power

Thermal Design Power (TDP):: 250 W
