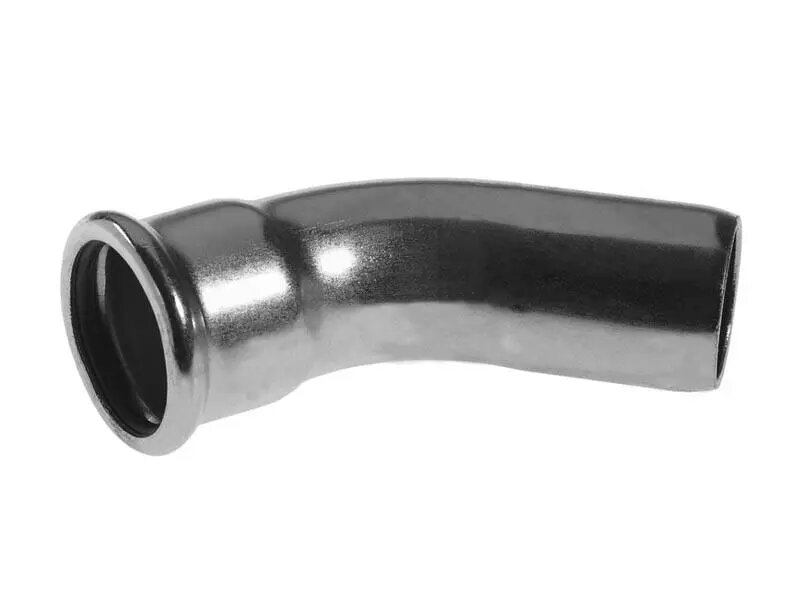

KAN-therm elbow 45° 22×22 mm steel – model 6240465

The KAN-therm elbow 45° 22×22 mm steel (model 6240465) is a compact metal fitting designed to connect two 22 mm pipes with a 45-degree angle change. Manufactured for use in plumbing and heating systems, this steel elbow provides a reliable, space-efficient directional transition where metal fittings are specified. It is suitable for potable water and central heating installations that require durable steel components and precise alignment between pipe sections.

Advantages

This steel 45° elbow offers strength and corrosion resistance typical of steel fittings used in heating and plumbing. Its 22×22 mm dimensions make it compatible with standard 22 mm pipework, providing a tight and stable connection. The compact design reduces the space needed for directional changes and supports the mechanical stability of the pipeline. As a metal fitting, it withstands higher temperatures and mechanical stress compared with many plastic alternatives.

Suitable for

• Domestic and commercial central heating pipe runs
• Potable water distribution where steel fittings are specified
• Tight or confined installation spaces requiring compact directional change
• Plumbing systems that require durable, mechanically robust joints

Key specifications

• Connection angle: 45 degrees
• Nominal pipe size: 22 mm × 22 mm
• Material: steel fitting designed for plumbing and heating use
• Application: potable water and central heating systems
• Design: compact elbow for space-efficient direction change

How to use

Install the elbow by preparing the ends of the 22 mm pipes according to the installation method required for the specific steel fitting (e.g., threading, compression, or welding if applicable). Align the pipes to achieve the desired 45° change and secure the connections following the manufacturer's recommended tightening and sealing procedures. Ensure that thread sealant or appropriate sealing materials are used where needed, and verify the alignment and mechanical support of the pipeline to avoid undue stress on the joint.

Usage recommendations

Confirm material compatibility with the rest of the piping system and with the transported medium. When used in potable water systems, follow local plumbing codes and water quality guidelines. Support nearby pipe sections to reduce strain on the elbow and perform pressure testing after installation to check for leaks.
