header-product Satellite Multiswitch Kathrein EXD 158 Twin 5 Inputs 2 Outputs
341.99 €

Satellite Multiswitch Kathrein EXD 158 Twin 5 Inputs 2 Outputs

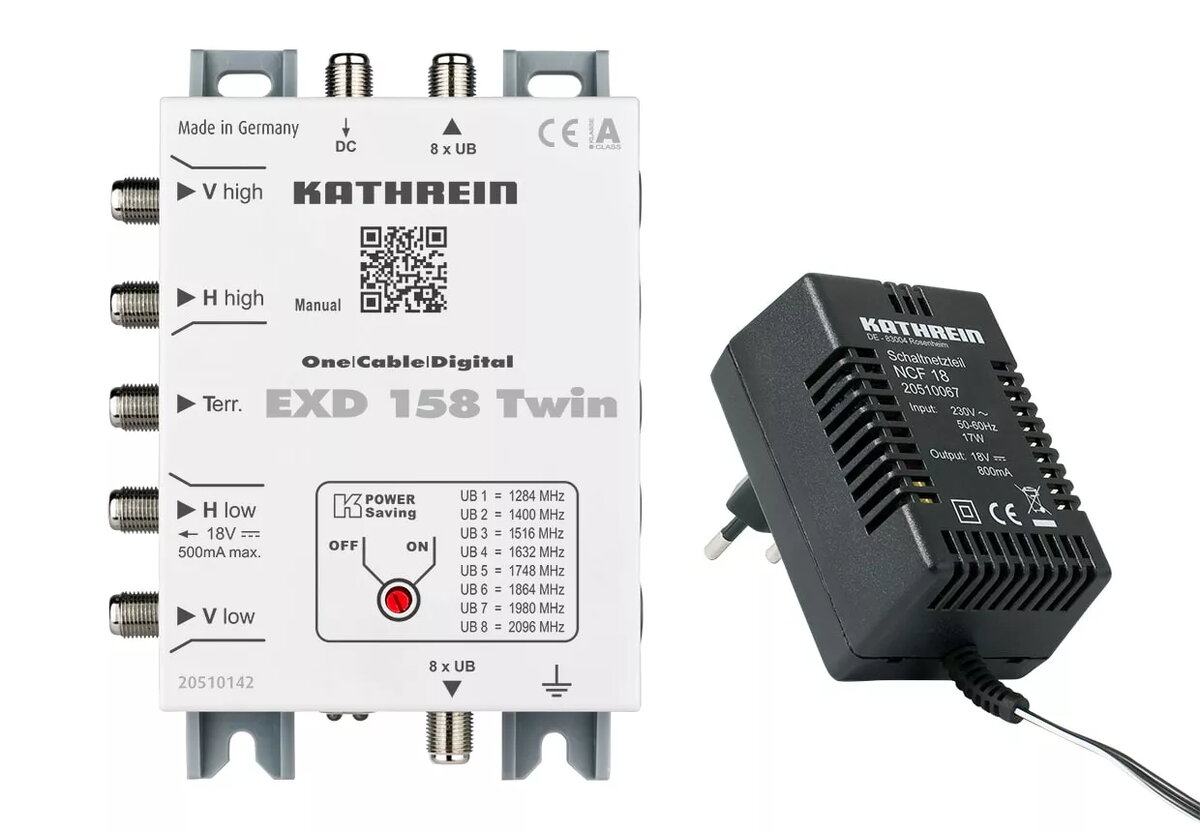

Satellite Multiswitch Kathrein EXD 158 Twin Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Satellite Multiswitch Kathrein EXD 158 Twin 5 Inputs 2 Outputs

{{email}}
You keep track of price changes

Satellite Multiswitch Kathrein EXD 158 Twin 5 Inputs 2 Outputs

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Kathrein EXD 158 Twin satellite multiswitch features 5 inputs and 2 outputs, supporting a frequency range of 950 - 2150 MHz. It operates on an input voltage of 230 V and frequency of 47 / 63 Hz, delivering an output voltage of 94 dBμV. Compact dimensions of 102.8 mm width, 148 mm depth, and 44 mm height make it ideal for various installations. This multiswitch is designed for reliable signal distribution in satellite systems.
Available for order: 2 pcs.
Warranty: 2 Years
SKU: 3900331
Manufacturer: Kathrein
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
03.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
06.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.51 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
06.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Kathrein EXD 158 Twin satellite multiswitch provides distribution of satellite signals with 5 inputs and 2 outputs. It supports a frequency range of 950–2150 MHz and delivers an output level of 94 dBµV. The unit operates from a 230 V mains input at 47/63 Hz and has compact dimensions (102.8 mm × 148 mm × 44 mm), allowing installation in limited spaces. The device is intended for reliable signal routing in domestic or small commercial satellite installations where two separate receivers or tuners need independent access to multiple LNB feeds.

Advantages

The multiswitch offers a wide frequency range suitable for standard DVB-S and DVB-S2 satellite reception and maintains a specified output level to ensure adequate signal strength to connected receivers. Its compact size enables flexible mounting in cabinets or on walls. The EXD 158 Twin's five input ports allow integration of multiple LNB polarities and bands, while two outputs provide independent feeds for two receivers or twin-tuner devices. The model’s electrical specifications are compatible with common European mains supplies.

Suitable for

  • Residential satellite installations with up to two receivers or twin-tuner set-top boxes
  • Small commercial locations requiring independent satellite feeds for two endpoints
  • Setups combining multiple LNB outputs (polarities/bands) into two consumer receivers

Key specifications

  • Inputs: 5 satellite inputs for LNB signals
  • Outputs: 2 independent outputs for receivers or tuners
  • Frequency range: 950–2150 MHz
  • Output level: 94 dBµV
  • Supply voltage: 230 V AC
  • Supply frequency: 47/63 Hz
  • Dimensions: 102.8 mm (W) × 148 mm (D) × 44 mm (H)

How to use

Install the multiswitch in a dry, ventilated location near the incoming LNB cable runs and the power source. Connect the five LNB outputs to the multiswitch inputs following the LNB polarity and band assignment used in your satellite system. Connect the two multiswitch outputs to the receiver or twin-tuner inputs using appropriate coaxial cables and F-type connectors. Apply mains power (230 V, 47/63 Hz) to the device and verify signal presence at each receiver. Adjust receiver settings as needed to lock onto satellite transponders.

Usage recommendations

Use high-quality, weather-rated coaxial cables and properly tightened F-connectors to minimize signal loss. Ensure the installation location avoids excessive moisture, heat, or direct sunlight. If signal levels are marginal, check cable lengths and connections before adding amplification; maintain compatible LNB and receiver settings for correct polarity and band selection.

All features
Input voltage:
230
Input frequency:
47 / 63
RF connector type:
F
Number of inputs:
5 inputs
Number of outputs:
2 outputs
Connection loss (terrestrial):
11 dB
Decoupling (horizontal/vertical):
30 dB
Output voltage:
94 dBμV
Current consumption:
20 mA
Input frequency range (terrestrial):
5 - 862
Input frequency range (satellite):
950 - 2150

Weight & dimensions

Height:
44 mm
Width:
102.8 mm
Depth:
148 mm

Operational conditions

Operating temperature (T-T):
-20 - 55
