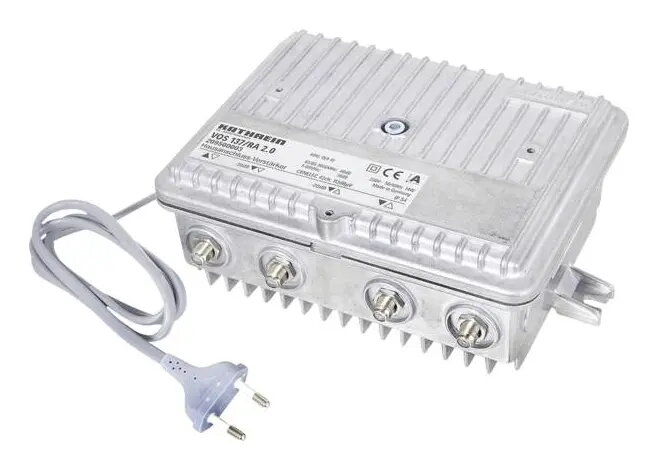

TV signal amplifier Kathrein VOS 137/RA 2.0 F connector AC 230V

Ports quantity: The number of ports or external interfaces to which other equipment can be connected.

1

Input voltage: The voltage (V) which is required to power the product.

230

Input frequency: The frequency (Hz) which is required to power the product.

50/60

Protection class:

I

Frequency range (forward path):

47 - 1006

Frequency range (return path):

5 - 65

Gain (forward path):

40 dB

Gain (return path):

30 dB

Packaging data

Package height: The distance from the top to the bottom of the packaging.

96 mm

Package depth: The distance from the front to the back of the packaging.

235 mm

Package width: The distance from one side of the packaging to the other.

172 mm

Package weight: Weight of the packaged product.

1460 g

Quantity: The number of products there are.

1

Technical details

Certification:

EN 60728-11, EN 50083-2, EN 62368-1

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP54

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE

Antenna

Noise figure:

5 dB

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.3 kg

Height: The measurement of the product from head to foot or from base to top.

150 mm

Depth: The distance from the front to the back of something.

80 mm

Width: The measurement or extent of something from side to side.

218 mm

Power

Power source type: What the power source is.

AC

Features

Connector(s):

F

Product colour: The colour e.g. red, blue, green, black, white.

Metallic
