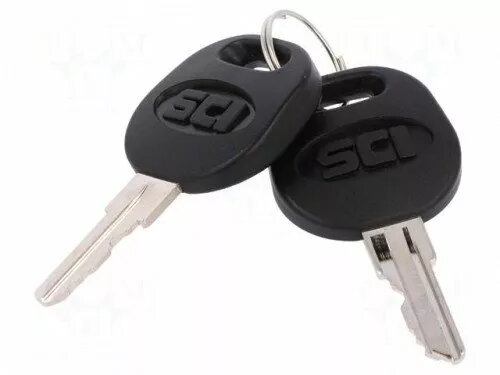

Key Switch (Flat Key) — EB1367777791#, Toggle OFF–ON, Stable Position 2

This key switch with a flat key provides a two-position OFF–ON control with a stable position 2, designed for panel or equipment mounting. The keyed operation prevents accidental switching and ensures deliberate control of circuits in environments where access must be restricted. The compact form factor and clear actuation positions make it suitable for integration into industrial control panels, security equipment, and machinery control interfaces.

Advantages

The keyed flat key design reduces the risk of unintended operation by requiring a dedicated key to change states. Its two-position OFF–ON mechanism with a stable second position offers predictable, tactile feedback for reliable manual control. Built for panel mounting, the switch enables neat installation and secure retention in control enclosures. The construction supports repetitive actuation and is compatible with typical control wiring practices for industrial and security applications.

Suitable for

• Industrial control panels and operator consoles
• Security systems and access-control equipment
• Machinery power enable/disable circuits
• Test benches and service panels requiring restricted switching
• Electrical cabinets and control enclosures

Key specifications

• Actuation: flat key operated, two positions (OFF–ON) with stable position 2
• Mounting: panel/equipment mountable with front mounting retention
• Contact configuration: single-pole two-position switching (SPST-style operation)
• Operation: keyed control to prevent accidental switching
• Build: compact form factor suitable for control panels and enclosures
• Electrical interface: screw or terminal connections compatible with standard control wiring

How to use

Install the key switch in a prepared panel cutout and secure it according to the panel mounting method. Connect the switch contacts to the control circuit using appropriate wire sizes and secure terminal connections. Insert the flat key to change the switch state between OFF and ON; remove the key if needed to lock the switch in the current position. Ensure wiring is performed with power removed and verify correct operation by operating the key and checking the controlled circuit response.

Usage recommendations

Use the key switch where controlled, deliberate switching is required and limit key distribution to authorized personnel. Periodically inspect mounting and terminal connections for tightness and signs of wear. Avoid exposure to excessive moisture or corrosive atmospheres unless the installation provides appropriate environmental protection.
