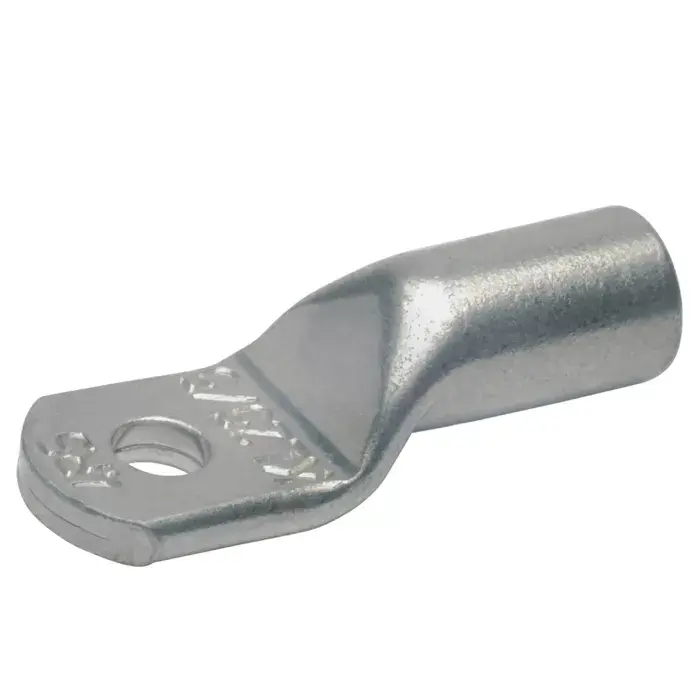

Klauke 2R5 Tubular Ring Lug Straight Tin Plated for 10 mm² Copper and Stainless Steel Electrical Terminals

The Klauke 2R5 tubular ring lug is a professional electrical component designed to create secure and reliable connections in demanding electrical systems. Engineered with a straight connector type and high-quality tin plating, this terminal ensures optimal electrical conductivity while protecting against corrosion and wear over extended periods of use. It is specifically built to accommodate 10 mm² conductors, making it a dependable choice for standard cabling tasks in various professional and industrial environments. Manufactured with precision, this tubular ring lug provides a stable attachment point for electrical studs and screws, maintaining low contact resistance and mechanical stability.

Advantages

This tubular ring lug offers exceptional reliability and durability for critical electrical installations. The tin plating provides a robust barrier against environmental factors, preventing oxidation and ensuring consistent conductivity over time. Its straight design facilitates straightforward alignment and positioning during installation. Designed specifically for copper and stainless steel materials, it supports versatile application needs while maintaining a secure and firm grip on the conductor. The robust construction minimizes the risk of joint failure under normal operational stresses.

Suitable for

• Industrial electrical installations and control panels
• Commercial electrical wiring and distribution boards
• Professional maintenance and repair of electrical equipment
• Connecting 10 mm² copper and stainless steel conductors

When it may not be suitable

This tubular ring lug is not designed for conductors with cross-sections significantly larger or smaller than 10 mm², as an improper fit can compromise the electrical and mechanical integrity of the connection. It may also be unsuitable for specialized environments requiring high-temperature alloys or coatings other than tin plating.

Key specifications

• Product type: Tubular ring lug
• Connector type: Straight
• Connector contacts plating: Tin
• Conductor cross-section compatibility: 10 mm²
• Compatible conductor materials: Copper and stainless steel

How to use

To use the Klauke 2R5 tubular ring lug, first prepare the conductor by stripping the insulation to the appropriate length corresponding to the barrel of the terminal. Insert the stripped end of the 10 mm² copper or stainless steel conductor fully into the tubular barrel. Secure the connection by applying the correct crimping tool designed for tubular ring lugs to ensure a tight, deformation-free mechanical bond. Finally, mount the ring end onto the designated terminal stud or screw and fasten it securely.

What to consider before purchase

• Verify that your conductor cross-section strictly matches 10 mm²
• Confirm compatibility with copper or stainless steel conductor materials
• Ensure you have the correct crimping tool for tubular ring lugs
• Check the stud or screw size of your application to ensure the ring diameter is appropriate

Usage recommendations: Always use calibrated crimping tools recommended by the manufacturer to ensure a secure and durable electrical connection. Inspect the installed terminal periodically for signs of mechanical wear or environmental degradation.
