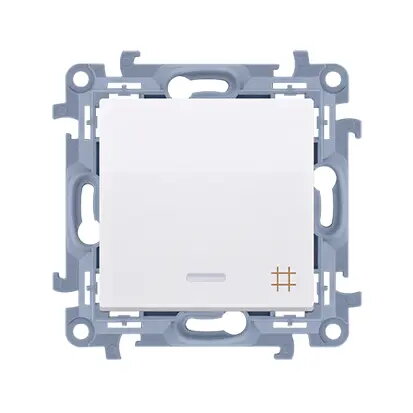

Electrical switch Kontakt-Simon CW7L.01/11 White — 10 A, 250 V, IP20/IP44, plastic housing

Kontakt-Simon CW7L.01/11 is a white cross (four-way) electrical switch in a plastic housing, rated 10 A at 250 V AC. It includes an integrated LED indicator and has IP20/IP44 protection levels, making it suitable for standard indoor locations and areas with occasional splashes. The unit is intended for flush wall mounting and is designed to be used in multi-way lighting circuits where a light or group of lights is controlled from three or more locations.

Advantages

The switch combines four-way switching functionality with a built-in LED indicator that helps locate the switch in low light or provides visual status feedback. Its 10 A (10AX) rating is appropriate for most residential lighting loads and many light commercial applications. The white plastic finish provides a neutral appearance that fits common interiors, and the compact, flush-mount form factor allows installation in standard switch boxes without major modification. IP20/IP44 ratings extend applicability to typical indoor and splash-prone areas when installed according to recommendations.

Suitable for

• Multi-way lighting circuits in corridors, staircases, and large rooms
• Residential homes and apartments requiring coordinated switching from several locations
• Commercial interiors such as offices, hotels, and hospitality areas where an indicator is useful

When it may not be suitable

This cross switch is specifically intended for inclusion in three-or-more-point switching arrangements and is not a direct replacement for a simple single-pole or two-way switch where only two switching points are needed. It is rated for 10 A and should not be used to directly control high-power inductive loads, heavy heaters, or industrial machinery that exceed its specified current or require special switching devices.

Key specifications

• Switch type: Cross (four-way) switch with integrated LED indicator
• Rated voltage: 250 V AC
• Rated current: 10 A (10AX)
• Protection rating: IP20 / IP44 (model-dependent and based on installation)
• Housing material: Plastic
• Colour/finish: White
• Mounting: Flush wall mounting, compatible with standard switch boxes
• Application: Multi-way lighting circuits and visible status indication

How to use

Install the Kontakt-Simon CW7L.01/11 in series with existing two-way and intermediate switches as part of a multi-point lighting circuit. Before installation, isolate the circuit and follow local electrical safety regulations. Verify the wiring layout required for a cross (intermediate) connection and secure the device in the switch box according to the mounting instructions. The LED indicator behaviour depends on the wiring and supply; consult the manufacturer wiring diagram if specific indicator operation is needed. After wiring, restore supply and test the switch and LED to confirm correct operation.

What to consider before purchase

• Confirm that your installation requires a cross (four-way) switch and that wiring supports three or more switching points
• Ensure the 10 A (10AX) rating is adequate for your lighting load, including any LED drivers or dimmers in the circuit
• Check compatibility with existing switch frames and standard flush mounting boxes
• Consider IP20/IP44 requirements based on the intended room and installation method

Usage recommendations

Use the switch within its 10 A rating and combine it with appropriate two-way and intermediate switches from the same series when possible. Have installation performed or checked by a qualified electrician and verify the LED indicator after wiring to ensure it provides the expected status feedback.
