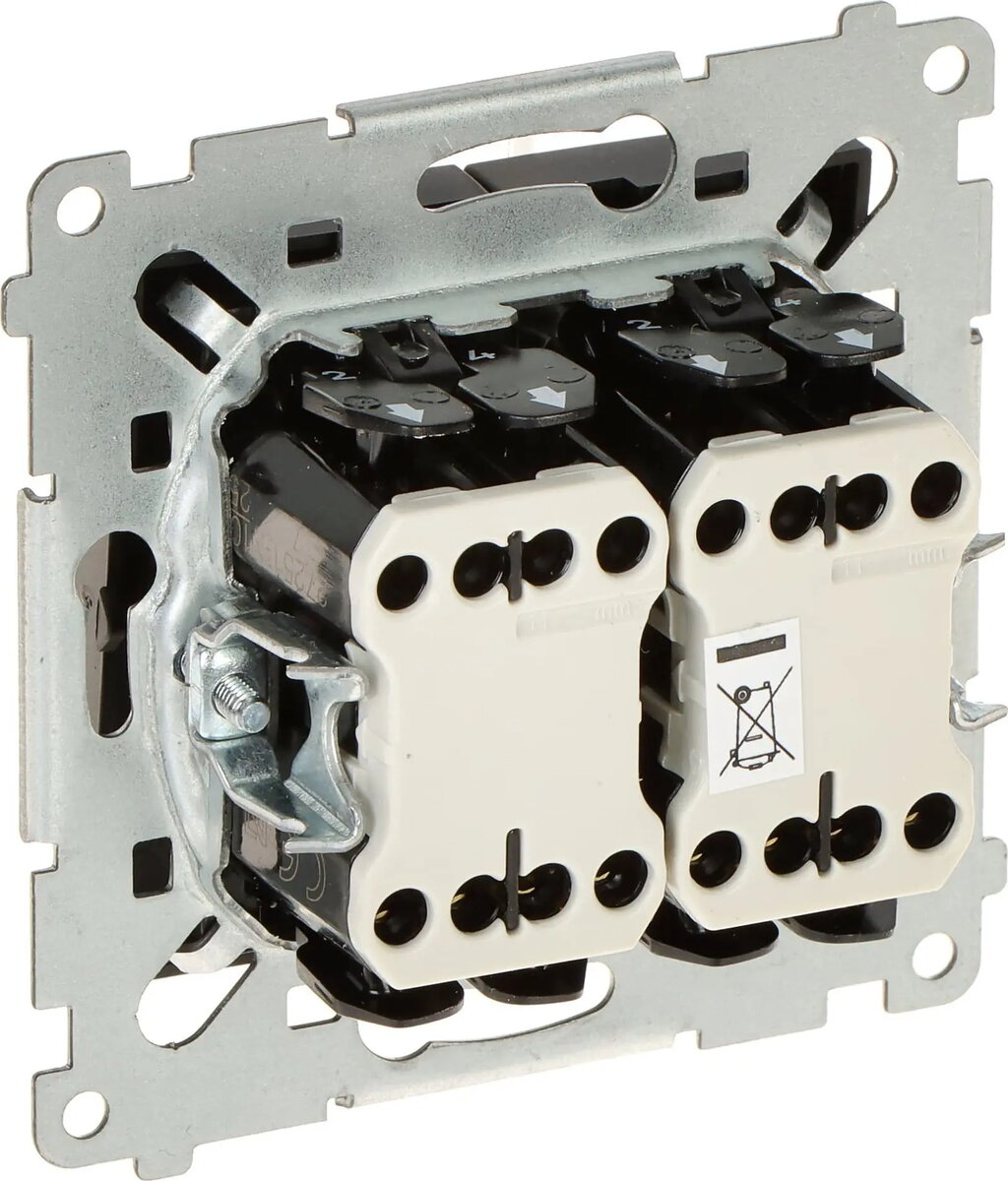

Double cross switch Kontakt-Simon SIMON54 DW7/2.01/X/49-SIMON54 250V 10A

Kontakt-Simon double cross switch DW7/2.01/X/49-SIMON54 is a two-channel intermediate (cross) switch designed for multi-way lighting control. Rated for 250 V and 10 A, this double module integrates two independent cross-switch circuits in a single unit, allowing control of lighting from multiple locations. The model suits installations in homes, offices and commercial spaces where flexible multi-point switching is required and is compatible with standard wall switch mounting systems.

Advantages

The double cross switch combines two intermediate switching channels in one compact unit, reducing the number of wall modules needed and simplifying wiring in multi-way circuits. Its 250 V/10 A rating provides compatibility with common lighting circuits, while the Kontakt-Simon build ensures consistent mechanical operation for repeated switching. The dual-channel format supports independent control of two separate lighting circuits from multiple switch points.

Suitable for

• Multi-way lighting circuits requiring an intermediate (cross) switching function
• Rooms or corridors with three or more switch locations
• Residential and commercial lighting installations where two independent circuits are controlled from shared switch locations

Key specifications

• Function: double intermediate (cross) switch with two independent channels
• Rated voltage: 250 V
• Rated current: 10 A
• Mounting: wall switch module format for standard switch boxes
• Intended use: control of lighting circuits in multi-way configurations

How to use

Install the double cross switch in place of existing intermediate switch modules following the wiring diagram appropriate for cross (intermediate) switching. Each channel acts as an independent cross switch and must be wired into the corresponding multi-way circuit runs. Installation, wiring and any configuration should be performed by a qualified electrician in accordance with local electrical regulations and safety standards. Ensure power is disconnected before carrying out any wiring work.

Usage recommendations

Use the switch only within its rated limits (250 V, 10 A). For reliable operation, pair the module with compatible frames and mounting boxes, and verify wiring continuity and correct traveller connections in multi-way circuits. Do not exceed the rated current and consult a qualified electrician for complex multi-point control setups.
