AV transmitter Kramer Electronics DIP-20

Name: AV transmitter Kramer Electronics DIP-20 20-80356090
Brand: Kramer
SKU: 434048
Price: 1325.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Kramer Electronics DIP-20 is a high-performance AV transmitter supporting a maximum resolution of 3840 x 2160 pixels and a transfer distance of up to 180 meters. With wired connectivity and an input current of 0.63 A, it ensures reliable signal transmission. Compact dimensions of 187.5 x 115 x 25.4 mm and a weight of 500 g make it easy to integrate into various setups. Ideal for professional AV applications.

Available for order: 12 pcs.

Warranty: 2 Years

SKU: 434048

Manufacturer: Kramer

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.94 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 46.14 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

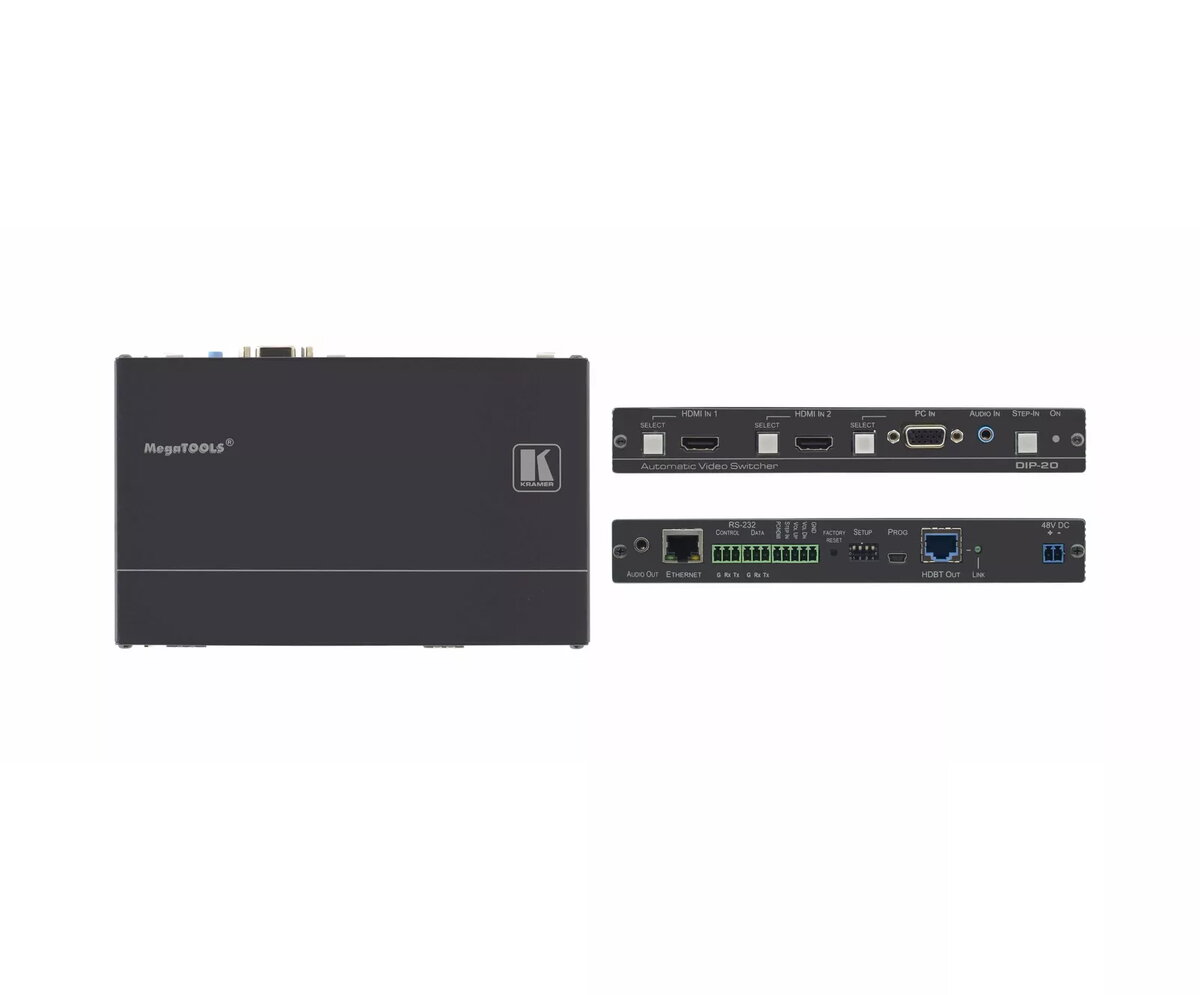

The Kramer Electronics DIP-20 is an AV transmitter and Step-in commander that transmits HDMI or VGA video, unbalanced stereo audio and control data over HDBaseT twisted-pair cable. It supports up to 4K@60Hz (4:2:0) resolution and can deliver signals up to 180 meters when paired with a compatible HDBaseT receiver. The unit accepts HDMI and VGA inputs, an Ethernet signal, serial data and an unbalanced stereo audio input that can be embedded into the output stream. The DIP-20 also functions as a PoE (Power over Ethernet) provider to power compatible PoE receivers.

Advantages

The DIP-20 provides extended-reach 4K transmission over HDBaseT with support for both HDMI and VGA sources, allowing legacy and modern devices to be connected. Its integrated audio embedding and de-embedding simplify signal routing without additional converters. Built-in PoE capability reduces the need for separate power supplies for compatible receivers, and the compact, lightweight housing eases installation into professional AV setups.

Suitable for

Professional AV installations requiring long-distance video distribution
Conference rooms and lecture halls combining HDMI and VGA sources
Setups that require embedded stereo audio and serial/ethernet control over a single cable

Key specifications

Maximum resolution: 3840 x 2160 (4K) at 60Hz (4:2:0)
Transmission distance: up to 180 m over HDBaseT twisted pair
Inputs: HDMI, VGA, unbalanced stereo audio, Ethernet, serial data
Outputs: HDBaseT to compatible receivers
Power: PoE provider (powers compatible PoE acceptors)
Dimensions: 187.5 x 115 x 25.4 mm; Weight: 0.5 kg
Colour: Black
Brand / MPN / EAN: Kramer / 20-80356090 / 7291063075897

How to use

Connect an HDMI or VGA source and, if required, the unbalanced stereo audio input and Ethernet/serial control lines to the DIP-20 inputs. Run a single HDBaseT twisted-pair cable from the DIP-20 output to a compatible HDBaseT receiver (for example TP-588D or TP-580RXR). Configure the receiver and display as needed and ensure the receiver supports 4K@60Hz (4:2:0) if using that resolution. If the receiver is PoE-capable, the DIP-20 can provide power over the same ethernet cable, eliminating the need for a separate power adapter at the receiver end.

Usage recommendations

For reliable 4K transmission, use high-quality shielded twisted-pair cable and keep connectors clean. Verify compatibility between the DIP-20 and the chosen HDBaseT receiver for supported resolutions and PoE functionality before installation.

Specifications

Weight:: 0.5 kg
Product colour:: Black

All features

Connectivity technology:: Wired

Ports & interfaces

VGA (D-Sub) ports quantity:: 1
Audio (L/R) out:: 1
HDMI in:: 2
VGA (D-Sub) input ports:: 1
DisplayPorts in:: 1
HDBaseT port:: Yes

Audio

Signal-to-Noise Ratio (SNR):: 75 dB

Technical details

Type:: AV transmitter
Material:: Aluminium
Size (imperial):: 19 "
Maximum transfer distance:: 180 m

Power

Input current:: 0.63

Weight & dimensions

Weight:: 0.5 kg

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40

Packaging data

Package dimensions (WxDxH):: 345 x 165 x 52
Package weight:: 1200 g

Packaging content

Cables included:: DC, DisplayPort

Features

Maximum resolution:: 3840 x 2160
Product colour:: Black
Supported video modes:: 1080p, 2160p

Other features

Dimensions (WxDxH):: 187.5 x 115 x 25.4
