header-product AV transmitter Kramer Electronics TP-583T 4096x2160 70m Wired
417.99 €

AV transmitter Kramer Electronics TP-583T 4096x2160 70m Wired

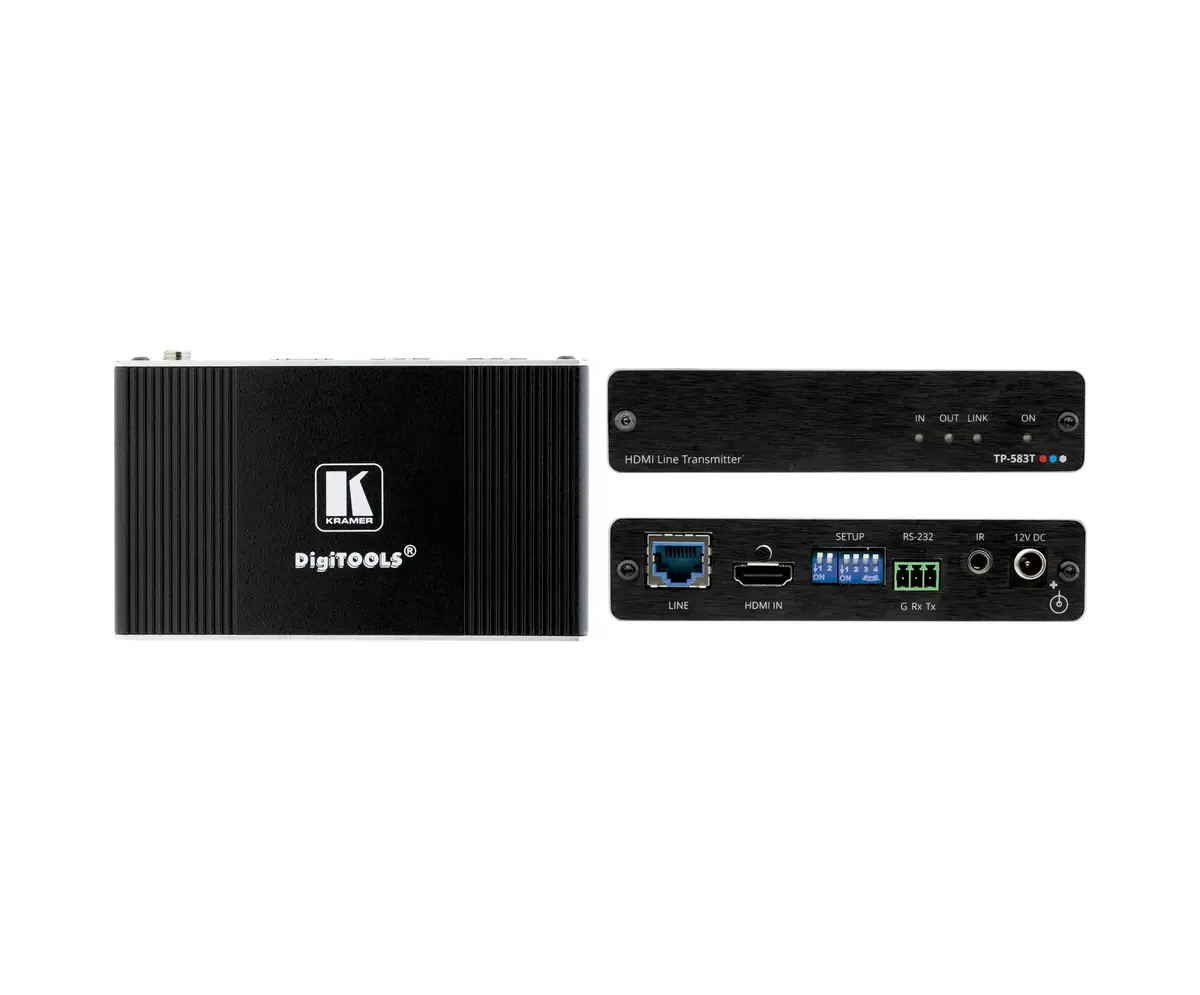

AV transmitter Kramer Electronics TP-583T Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

AV transmitter Kramer Electronics TP-583T 4096x2160 70m Wired

{{email}}
You keep track of price changes

AV transmitter Kramer Electronics TP-583T 4096x2160 70m Wired

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Kramer Electronics TP-583T is an AV transmitter supporting a maximum resolution of 4096 x 2160 pixels and a transfer distance of up to 70 meters. It features wired connectivity and an RS-232 serial interface. Operating on 12V DC with a maximum power consumption of 480 mA, its compact dimensions of 120 x 71.5 x 24.4 mm and weight of 300 g make it suitable for various AV applications.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 4977807
Manufacturer: Kramer
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

TP−583T is a high-performance AV transmitter by Kramer Electronics that converts HDMI, RS‑232 and IR inputs into an HDBaseT signal for long‑reach distribution over twisted‑pair copper. The unit supports up to 4096×2160 (4K) video and extends signals to distances of up to 70 m (230 ft) over Kramer copper cables. It is compatible with standard HDBaseT extenders and can operate with compressed or uncompressed HDBaseT depending on the connected extender.

Advantages

The TP−583T delivers visually lossless 4K@60Hz (4:4:4) and HDR video using low‑level compression to nearly double extension reach versus uncompressed transmission while maintaining near‑zero latency. It is backward compatible with HDBaseT‑compliant extenders and automatically detects and adapts to the compression capabilities of the connected unit. The transmitter passes EDID and CEC, supports HDCP 2.2, multi‑channel audio up to 32 channels, and provides bidirectional RS‑232 and IR control. Status LEDs and local firmware upgrade via RS‑232 simplify maintenance.

Suitable for

  • Long‑reach 4K HDR HDMI distribution over twisted‑pair copper
  • Integration with professional AV extenders and matrix systems
  • Remote device control via RS‑232 and IR in presentations and control rooms

Key specifications

  • Maximum resolution: 4096×2160 (4K)
  • Extension distance: up to 70 m (230 ft) over Kramer copper cables
  • HDBaseT compatibility: standard HDBaseT (auto‑adapts compression)
  • HDMI features: HDR, HDCP 2.2, HDMI 2.0 features (deep color, x.v.Color™, 3D)
  • Audio: up to 32 channels digital uncompressed
  • Control interfaces: bidirectional RS‑232 and IR
  • Power: 12V DC, max 480 mA
  • Dimensions (W×D×H): 120 × 71.5 × 24.4 mm; Weight: 300 g
  • Manufacturer MPN: 50-80023090; EAN: 7291063085148

How to use

Connect the HDMI source to the TP−583T HDMI input, connect the HDBaseT output to a compatible HDBaseT receiver using Kramer copper cable, and supply 12V DC power. Connect RS‑232 or IR lines as required for remote control. The unit will auto‑detect the connected extender and enable or disable compression accordingly; EDID and CEC information are passed through from source to display. Use the status LEDs to verify link and HDMI activity and perform local firmware updates via the RS‑232 interface when necessary.

Usage recommendations

For maximum distance and best image fidelity at 4K@60Hz (4:4:4) use high‑quality Kramer copper cable and verify the connected receiver’s compression support. In mixed‑vendor setups, allow the TP‑583T to auto‑negotiate compression and confirm EDID settings to ensure proper resolution and HDR metadata.
All features
Type:
AV transmitter
Certification:
WEEE, CE, RoHs, UL
Audio system:
stereo
Operating relative humidity (H-H):
10 - 90
Storage temperature (T-T):
-40 - 70
Package weight:
700 g
Material:
Aluminium
Operating temperature (T-T):
0 - 40
Serial interface type:
RS-232
AC adapter included:
Yes
Ethernet LAN:
Yes
LED indicators:
Y
Video in:
1
Connectivity technology:
Wired
Maximum resolution:
4096 x 2160
Product colour:
Black
DC-in jack:
Yes
Bandwidth:
18 Gbit/s
Package depth:
120 mm
Package height:
87 mm
Package width:
157 mm
Supported video modes:
1080p, 2160p
HDCP:
Yes
Maximum refresh rate:
60 Hz
Baud rate:
115.2 Kbit/s
HDMI in:
1
Power source type:
DC
Transmitter dimensions (WxDxH):
120 x 71.5 x 24.4
Transmitter weight:
300 g
Maximum transfer distance:
70 m
Remote (IR) output:
1
RJ-45 output ports:
1
RS-232 input ports:
1
Quantity per pack:
1 pc(s)
Power consumption (transmitter) (max):
480 mA
HDBaseT certified:
Yes
Operating voltage (transmitter):
12 V
Compliance certificates:
RoHS
