AV receiver Kramer Electronics TP-583RXR

Name: AV receiver Kramer Electronics TP-583RXR 50-80026090
Brand: Kramer
SKU: 3660865
Price: 603.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

AV receiver Kramer Electronics TP-583RXR Black

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Kramer Electronics TP-583RXR is a high-performance AV receiver supporting a maximum resolution of 4096 x 2160 pixels. It offers a maximum transfer distance of 200 meters and operates on a 12V power supply with a maximum current of 2A. Compact in size with dimensions of 120mm x 71.5mm x 24.4mm, it is designed for easy integration into various setups. Ideal for professional AV applications, it ensures reliable wired connectivity and efficient power consumption.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 3660865

Manufacturer: Kramer

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

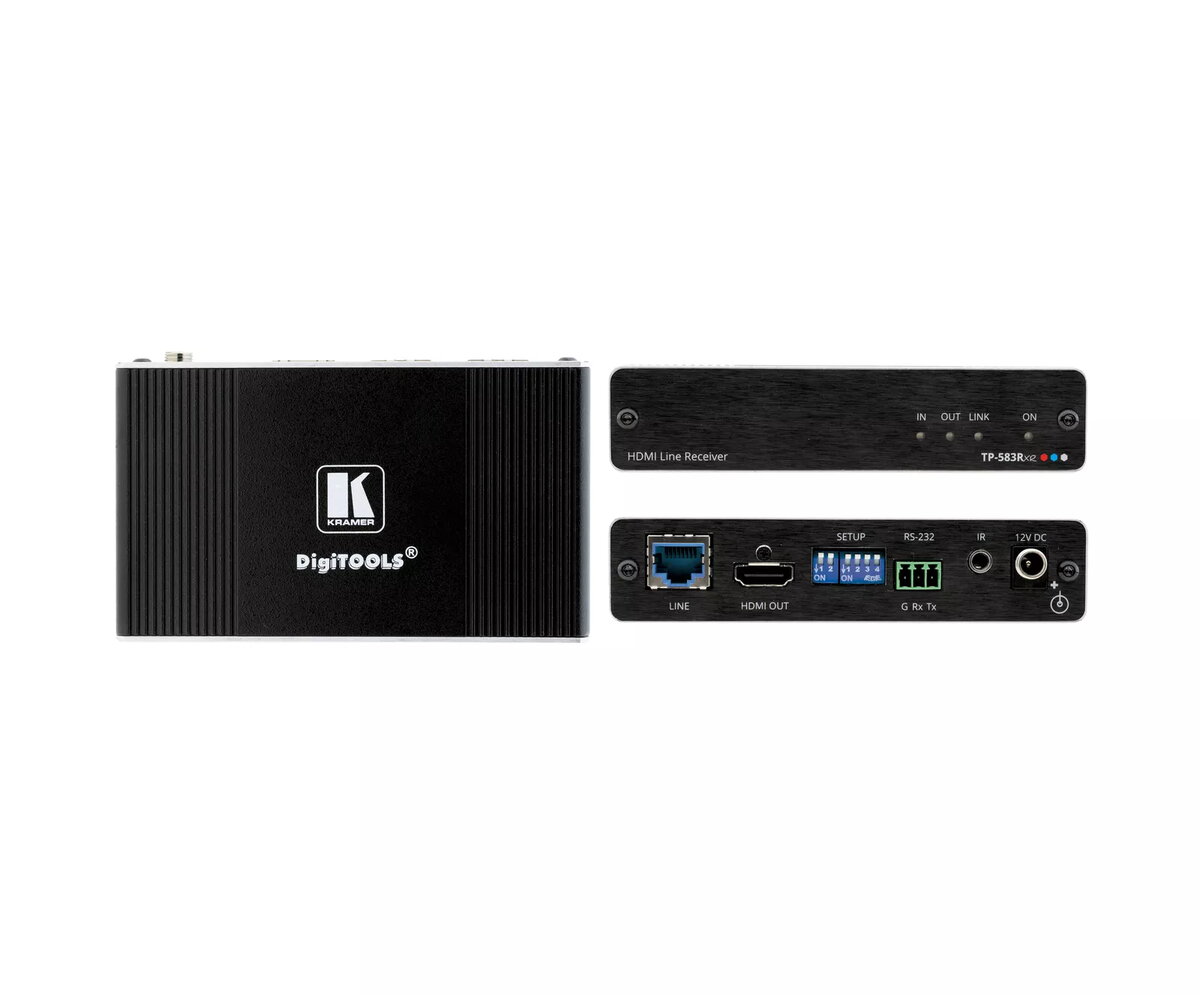

TP−583Rxr is a high−performance, extended−reach HDBaseT receiver for 4K HDR HDMI, RS−232 and IR signals over twisted pair. TP−583Rxr converts the HDBaseT signal and outputs it to its HDMI and control ports. It enables extending video signal up to 100m (330ft) at 4K@60Hz (4:4:4) video resolution, up to 180m (590ft) at 4K@30Hz (4:4:4), and up to 200m (650ft) at HD video resolution over Kramer copper cables. It is compatible with standard HDBaseT−compliant extenders at 4K@30Hz and HD video resolutions.

High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. It employs low–level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near–zero latency. This high–quality compressed signal is extended to almost double the extension reach of the uncompressed signal.
Future–proof, Standard Extender — TP–583Rxr is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto–adapting to the compression capabilities of its connected extender. This enables it to be connected to any market–available HDBaseT–compliant extension product.
Intelligent Compression Handling — Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender.
HDMI Signal Extension — HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–Effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
Easy Installation — Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

Specifications

Weight:: 0.3 kg
Product colour:: Black

All features

Type:: AV receiver
Material:: Aluminium
LED indicators:: Y
Connectivity technology:: Wired
Maximum resolution:: 4096 x 2160
Bandwidth:: 18 Gbit/s
Input current:: 2
Supported graphics resolutions:: 3840 x 2160, 4096 x 2160
Operating voltage:: 12 V
Number of HDMI outputs:: 1
Maximum transfer distance:: 200 m
RJ-45 input ports:: 1
RS-232 input ports:: 1
Power consumption (receiver) (max):: 600 mA

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40

Certificates

Certification:: CE, UL, WEEE

Ports & interfaces

DC-in jack:: Yes

Packaging data

Package weight:: 700 g
Package depth:: 186 mm
Package height:: 588 mm
Package width:: 490 mm

Weight & dimensions

Weight:: 0.3 kg
Height:: 24.4 mm
Width:: 120 mm
Depth:: 71.5 mm

Features

Product colour:: Black

Video

Supported video modes:: 2160p, 1080p
