AV transmitter & receiver Kramer Electronics PT-872XR

Name: AV transmitter & receiver Kramer 50-8038701190
Brand: Kramer
SKU: 3981685
Price: 327.49 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Out of stock.
View similar!

Short description

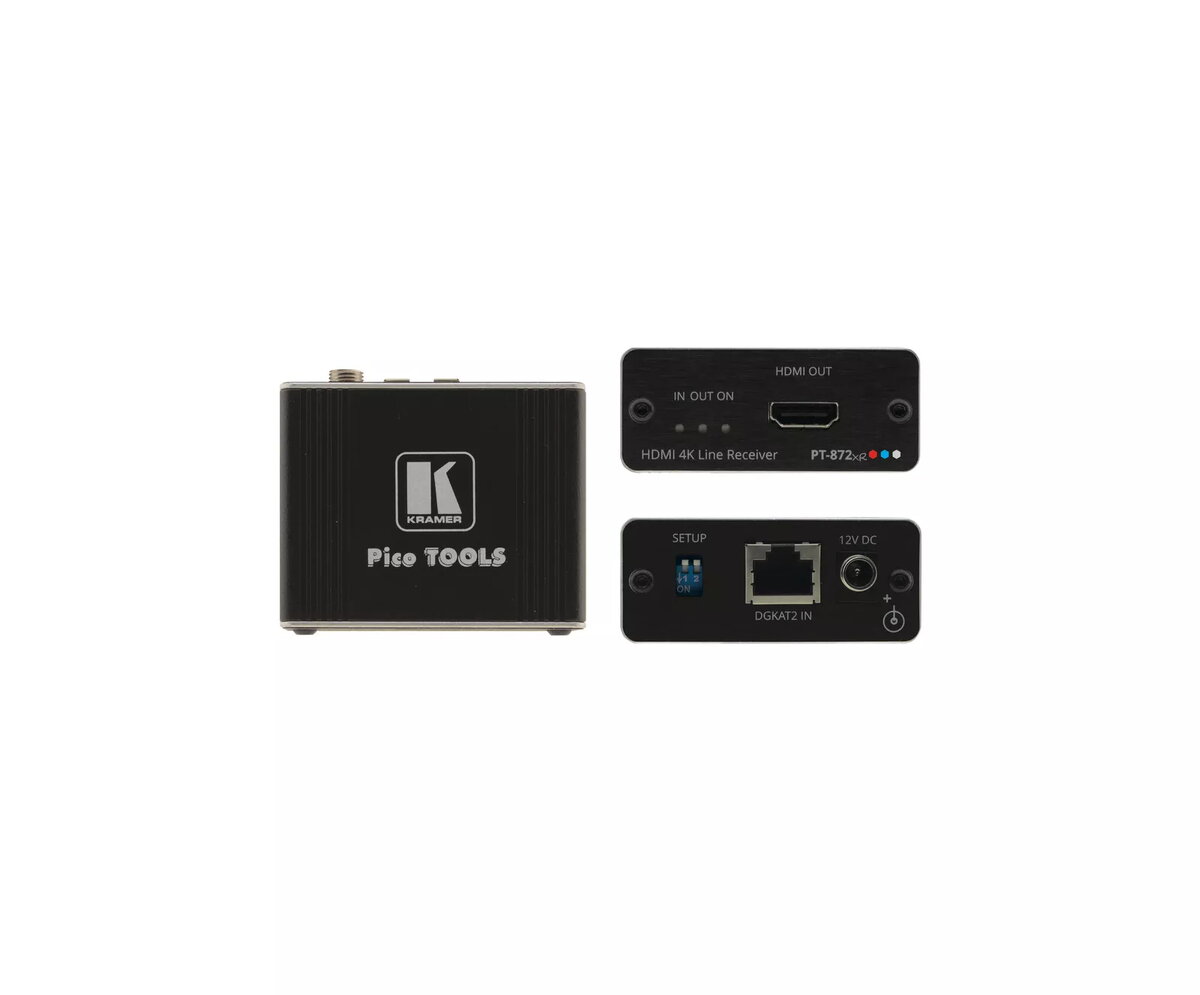

The Kramer Electronics PT-872XR is an AV transmitter and receiver supporting a maximum resolution of 4096 x 2160 pixels. It features HDR10 technology for enhanced image quality. With wired connectivity and powered by a 12V DC source, it operates efficiently with a current input of 2A. Compact dimensions of 62.2mm x 51.8mm x 24.4mm make it suitable for various setups.

Warranty: 2 Years

SKU: 3981685

Manufacturer: Kramer

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PT−872xr is a high-performance, long-reach DGKat™ 2.0 receiver that converts DGKat™ 2.0 signals into HDMI for 4K@60Hz (4:4:4) HDR HDMI sources with HDCP 2.2 compatibility. The unit supports two-way power over twisted pair and extends video up to 60 m (200 ft) at 4K@60Hz (4:4:4) and up to 70 m (230 ft) at 4K@30Hz (4:4:4) 24 bpp when used with Kramer shielded cable. The compact black housing measures 62.2 × 51.8 × 24.4 mm and the device is powered by 12 V DC, 2 A input.

Advantages

The PT−872xr provides long-distance transmission of high-resolution HDR video while maintaining HDCP 2.2 compliance and full 4:4:4 chroma sampling at supported resolutions. Two-way power over twisted pair simplifies installation by allowing the receiver to be powered from the transmitter or a compatible power source over the same cable. Small size and light weight make it easy to install in tight spaces or mount near display equipment.

Suitable for

Extending 4K@60Hz HDR HDMI signals over long distances in professional AV installations
Conference rooms and lecture halls where centralized sources feed remote displays
Digital signage and control rooms requiring HDCP 2.2-compatible distribution
Installations using Kramer shielded twisted-pair cable for reliable transmission

Key specifications

Maximum resolution: 4096 × 2160 (4K)
Supported formats: 4K@60Hz (4:4:4) HDR, HDCP 2.2
Distance: up to 60 m (200 ft) at 4K@60Hz; up to 70 m (230 ft) at 4K@30Hz (24 bpp) with Kramer shielded cable
Signal type: DGKat™ 2.0 receiver to HDMI output
Power: 12 V DC input (receiver supports two-way powering over twisted pair; transmitter/host may provide power)
Dimensions: 62.2 × 51.8 × 24.4 mm
Weight: 0.1 kg
Colour: Black

How to use

Connect the DGKat™ 2.0 twisted-pair cable from the compatible transmitter to the PT−872xr receiver RJ‑45 input, then connect an HDMI cable from the receiver HDMI output to the display. Ensure the transmitter and receiver are powered: either supply 12 V DC to the receiver or enable two-way powering from the transmitter if supported. Verify source and display support HDCP 2.2 and HDR where required, and use Kramer shielded twisted-pair cable to achieve the specified maximum distances.

Usage recommendations

For reliable long-reach 4K@60Hz (4:4:4) HDR performance, use Kramer shielded twisted-pair cable, confirm both source and display support HDCP 2.2, and keep cable runs within the specified distance limits. If powering over the cable, verify the transmitter supplies appropriate two-way power or provide the receiver with its 12 V DC supply.

All features

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Power source type: What the power source is.: DC

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 588 mm
Package width: The distance from one side of the packaging to the other.: 490 mm
Package weight: Weight of the packaged product.: 500 g
Package depth: The distance from the front to the back of the packaging.: 186 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.1 kg
Height: The measurement of the product from head to foot or from base to top.: 24.4 mm
Depth: The distance from the front to the back of something.: 51.8 mm
Width: The measurement or extent of something from side to side.: 62.2 mm

Technical details

Type: Characteristics of the device.: AV transmitter & receiver
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: WEEE, RoHS, CE

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Features

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 4096 x 2160
Maximum refresh rate:: 60 Hz
HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.: Yes
Product colour: The colour e.g. red, blue, green, black, white.: Black
High Dynamic Range (HDR) technology:: High Dynamic Range 10 (HDR10)

Ports & interfaces

RJ-45 input ports:: 1
Number of HDMI outputs: Port (socket) for HDMI output.: 1

Power

Input current:: 2
Operating voltage: Defines the range of operating voltages available: 12 V
