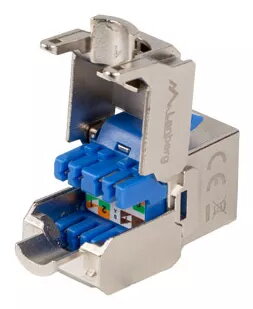

Keystone Module Lanberg KSFA-3000 Flat RJ-45 Blue Silver

The Lanberg KSFA-3000 is a high-performance flat keystone module designed for reliable RJ-45 network connections. Featuring a sleek blue and silver finish, this component is engineered for seamless integration into structured cabling systems. Its compact design and standardized dimensions ensure it fits perfectly into a wide range of modular panels, wall plates, and electrical fixture frames, providing a professional and organized networking infrastructure.

Advantages

This keystone module offers exceptional versatility due to its compatibility with standard keystone adapters, including 45x45 socket frames and various modular patch panels. The inclusion of an IDC connector cover enhances protection and signal integrity, while the clear color-coded connection sequence for both 568A and 568B standards simplifies the wiring process. Its tool-compatible design allows for efficient installation using standard LSA tools, ensuring a secure and stable connection for high-speed data transmission.

Suitable for

• Structured cabling systems in office and home environments
• Modular patch panels and wall-mounted network outlets
• 45x45 socket adapters and electrical fixture frames
• High-speed data network installations requiring CAT.6A performance

When it may not be suitable

This module is specifically designed for standard keystone-compatible hardware and may not fit into proprietary or non-standard modular systems. It is not intended for outdoor use without appropriate protective enclosures, as it lacks weatherproofing features.

Key specifications

• Connector type: RJ-45
• Category: CAT.6A
• Shielding: FTP
• Dimensions: 14.5 mm width, 34 mm depth, 19.6 mm height
• Wiring standards: 568A/B color-coded
• Termination: IDC connector compatible with LSA tools

How to use

To install the module, strip the outer jacket of your network cable and arrange the individual wires according to the color-coding scheme printed on the module for either the 568A or 568B standard. Insert the wires into the IDC slots and use an LSA punch-down tool to seat the wires and trim the excess. Once the wires are connected, snap the IDC cover into place to secure the connection and provide strain relief. Finally, insert the module into your chosen keystone adapter or patch panel until it clicks into position.

What to consider before purchase

• Verify that your existing wall plates or patch panels support the standard keystone dimensions of 16.10 x 14.50 mm.
• Ensure your cabling infrastructure meets CAT.6A requirements to fully utilize the module's performance capabilities.
• Confirm that you have an LSA-compatible punch-down tool available for installation.

Usage recommendations

For optimal network performance, ensure that the cable shielding is properly grounded when using FTP modules and avoid excessive bending of the cables near the termination point to maintain signal integrity.
