Firewall Lancom Systems LANCOM R&S Unified Firewall UF-760 — 49.83 Gbit/s throughput, IPSec 19.7 Gbit/s, 1U, 4 fans

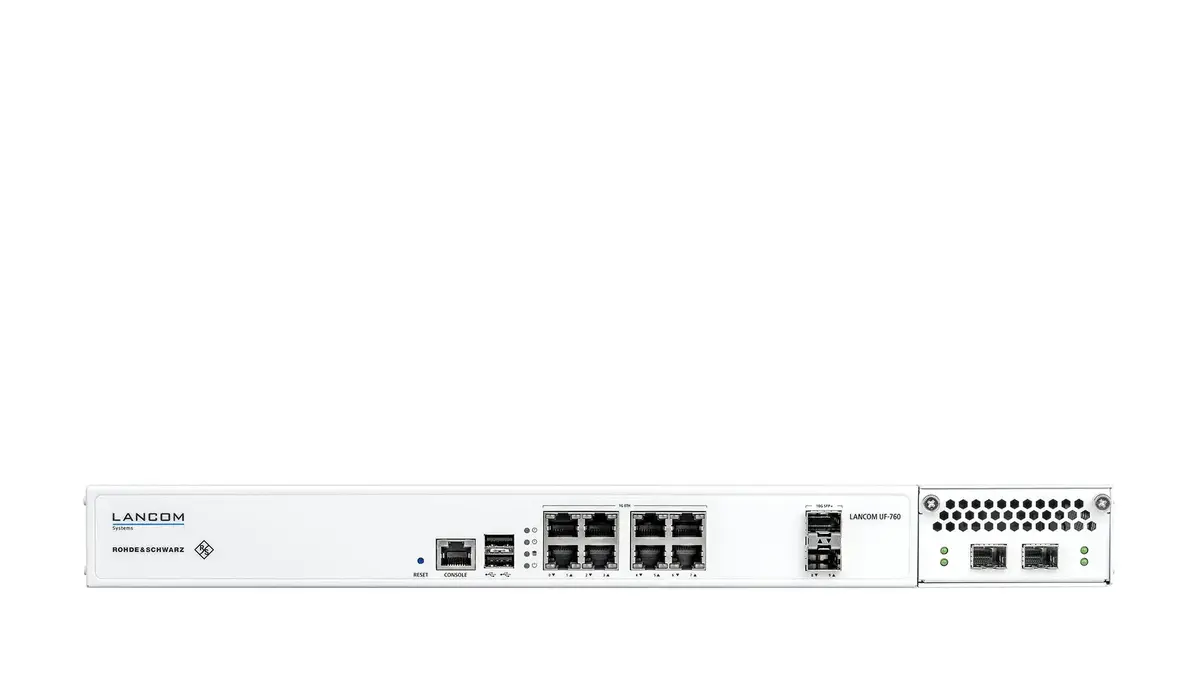

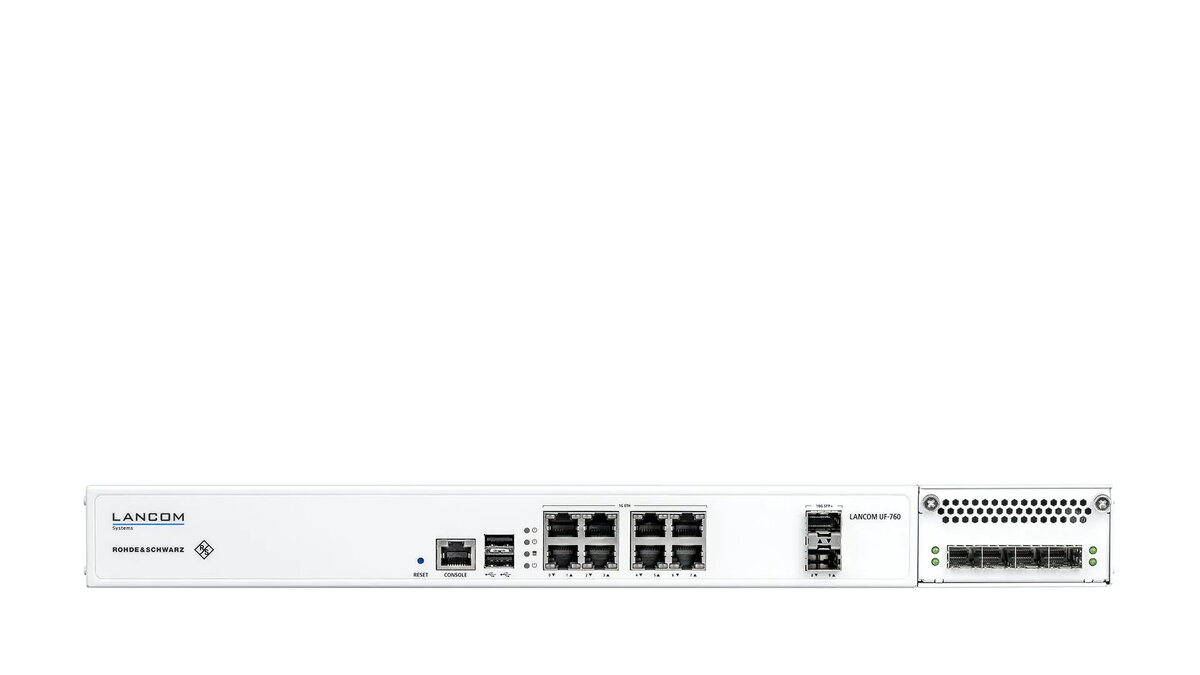

The LANCOM R&S Unified Firewall UF-760 is a 1U rack-mounted network firewall designed for enterprise edge and data-center environments. It offers a firewall throughput of 49.83 Gbit/s, IPSec VPN throughput of 19.7 Gbit/s and IPS/IDS throughput of 13,000 Mbit/s. The device supports IEEE 802.1Q VLAN tagging, BGP/IP routing and wired Ethernet at 10/100/1000 Mbit/s. Built for continuous operation, the UF-760 includes redundant cooling with four fans and an RJ-45 console port for local management.

Advantages

The UF-760 delivers high aggregated throughput suitable for large, distributed networks while providing integrated UTM and NGFW features such as deep packet inspection, SSL inspection and sandboxing. Developed in Germany and guaranteed free from backdoors, it combines high performance with compliance-focused design. Redundant storage and power concepts increase operational availability, and multiple management options allow centralized or cloud-based administration.

Suitable for

• Enterprise edge firewalling in data centers and campus networks
• Headquarters or central sites protecting multiple branch offices
• Educational institutions with high concurrent user counts
• Environments requiring IPSec VPN concentrator functionality
• Networks needing scalable UTM/NGFW services like DPI and SSL inspection

Key specifications

• Form factor: 1U rack-mount
• Firewall throughput: 49.83 Gbit/s
• IPSec VPN throughput: 19.7 Gbit/s
• IPS/IDS throughput: 13,000 Mbit/s
• Wired Ethernet speeds: 10/100/1000 Mbit/s
• VLAN support: IEEE 802.1Q
• Routing: BGP and IP routing capabilities
• Management interfaces: RJ-45 console port; web-based GUI and cloud management support
• Cooling: four internal fans for redundant cooling
• High-availability support and cluster operation without additional licenses
• Integrated security: deep packet inspection, SSL inspection, sandboxing, content filtering and application management

How to use

Install the UF-760 in a standard 19-inch server rack using the provided mounting hardware and connect power and network interfaces according to your network design. Use the RJ-45 console port for initial configuration or access the web-based GUI for step-by-step setup. Configure interfaces, VLANs, routing (BGP or static routes) and IPSec tunnels as required. Enable UTM features such as DPI, SSL inspection and sandboxing selectively to balance security and throughput based on your traffic profile. For multi-device environments, integrate the appliance with LANCOM Management Cloud or the LANCOM R&S UF Command Center for centralized administration and automated policy rollout.

Usage recommendations

For optimal performance, enable processor-intensive UTM functions (for example SSL inspection and sandboxing) selectively and monitor throughput and CPU load. Use high-availability clustering and redundant power/storage configurations in critical installations. Keep firmware and threat signature updates current and follow vendor configuration guides or tutorial videos when deploying complex VPN or routing scenarios.
