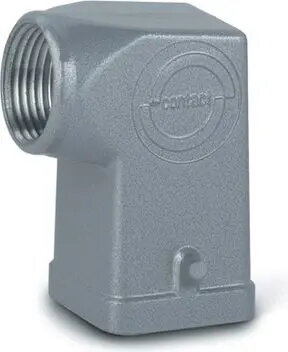

Lapp EPIC H-A 3 MTs Angled Connector Housing PG11 IP65

The Lapp EPIC H-A 3 MTs is a high-quality angled connector housing engineered for demanding industrial environments. This robust component is designed to provide a secure and reliable interface for electrical connections, ensuring that your automation and control systems remain operational even in challenging conditions. With its precise construction and durable materials, it offers a dependable solution for professional electrical installations.

Advantages

The primary benefit of this connector housing is its exceptional build quality, which guarantees long-term performance and resistance to mechanical stress. The angled design allows for efficient cable routing in tight spaces, preventing unnecessary strain on the connection points. Furthermore, the housing is rated IP65, meaning it is fully protected against dust ingress and low-pressure water jets, making it suitable for use in environments where environmental exposure is a concern.

Suitable for

• Industrial automation and control systems
• Machine building and manufacturing equipment
• Electrical installations in dusty or damp environments
• Applications requiring space-saving angled cable entry

When it may not be suitable

This housing is not intended for use in high-pressure washdown areas or environments requiring full submersion, as it is rated for IP65 protection rather than IP67 or IP68. Additionally, it is not suitable for applications requiring cable entries larger than the PG11 standard.

Key specifications

• Housing type: Angled connector housing
• Cable entry: PG11
• Protection rating: IP65
• Series: EPIC H-A 3
• Material: Robust industrial-grade construction

How to use

To install the Lapp EPIC H-A 3 MTs, ensure the cable is properly stripped and prepared for the connector insert. Feed the cable through the PG11 entry point and secure it using a compatible cable gland to maintain the IP65 seal. Once the internal connections are made, align the housing with the corresponding panel-mount base or connector insert and lock it securely into place. Verify that all seals are correctly positioned to ensure the integrity of the protection rating.

What to consider before purchase

• Verify that the PG11 cable entry size matches your specific cable diameter requirements.
• Ensure the mating connector is compatible with the H-A 3 series standard.
• Check that the IP65 rating is sufficient for your specific environmental conditions.

Usage recommendations

Always use a compatible cable gland to ensure the IP65 rating is maintained. Regularly inspect the housing for signs of physical damage or degradation of the seal to ensure continued protection against dust and moisture.
