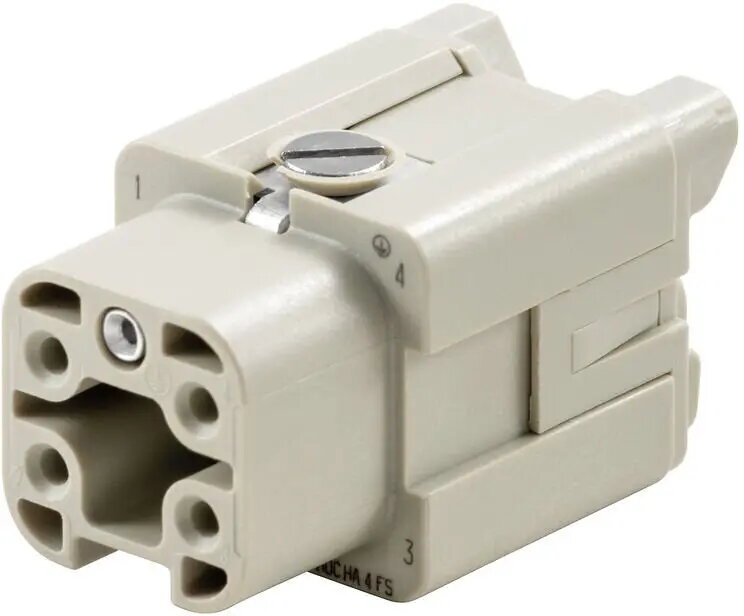

Lapp HDC HA 4 FS Contact Insert 1498400000

The Lapp HDC HA 4 FS contact insert is a professional-grade industrial connector component engineered to provide secure and reliable electrical connectivity. Designed as part of the robust HA series, this insert is built to withstand the rigors of demanding industrial environments, ensuring consistent signal and power transmission for critical machinery and automation systems. Its compact design and precise engineering facilitate easy integration into various connector housings, offering a dependable solution for complex electrical installations.

Advantages

This contact insert stands out due to its high-quality construction, which ensures long-term durability and resistance to mechanical stress in harsh operating conditions. The design prioritizes ease of assembly and secure contact, minimizing the risk of signal loss or connection failure. By utilizing high-grade materials, the component maintains stable electrical performance even in environments subject to vibration or temperature fluctuations, making it an essential element for maintaining operational uptime in industrial settings.

Suitable for

• Industrial automation and control systems
• Machinery and equipment manufacturing
• Electrical cabinet and panel building
• Robotics and motion control applications

This component may not be suitable for applications requiring high-density pin configurations, as it is designed for a specific number of connections. It is also not intended for use in environments exceeding its specified voltage or current ratings, or in areas requiring specialized explosion-proof certifications unless housed in an appropriate enclosure.

Key specifications

• Series: HA
• Number of contacts: 4
• Gender: Female
• Connection type: Screw termination
• Material: High-performance thermoplastic

To use the Lapp HDC HA 4 FS contact insert, first ensure that the corresponding male insert is selected for your specific application. Strip the wires to the appropriate length as indicated by the technical documentation and secure them firmly into the screw terminals. Once the wiring is complete, insert the contact block into the compatible industrial connector housing, ensuring it clicks or locks into place to guarantee a secure connection. Always verify that the housing is properly sealed to protect the internal contacts from environmental factors.

What to consider before purchase

• Verify compatibility with your existing connector housing series
• Check the current and voltage requirements of your electrical circuit
• Ensure the wire gauge used is compatible with the screw terminals
• Confirm the environmental conditions of the installation site

Usage recommendations: Always perform a continuity test after installation to ensure all connections are secure and correctly wired. Regularly inspect the connector housing for signs of wear or environmental ingress to maintain optimal performance over the lifespan of the equipment.
