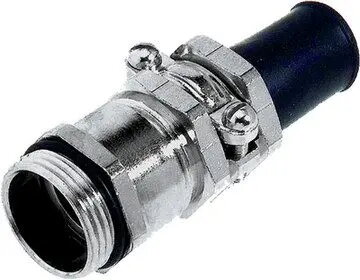

Lapp SKINDICHT SR PG 13/9 Brass Cable Gland PG13.5 IP65

The Lapp SKINDICHT SR PG 13/9 is a high-quality brass cable gland engineered for secure cable entry and effective strain relief in demanding industrial environments. Constructed from robust nickel-plated brass, this component provides excellent mechanical stability and long-term durability for various electrical installations. With its PG13.5 thread size and an IP65 protection rating, it ensures a reliable seal against dust and water spray, maintaining the integrity of your electrical connections.

Advantages

The primary benefit of this cable gland is its superior mechanical strength, which is achieved through the use of high-grade brass materials. This construction offers excellent resistance to corrosion and physical impact, making it suitable for harsh industrial settings. Furthermore, the integrated strain relief feature prevents cables from being pulled out or damaged at the entry point, significantly extending the lifespan of the cable assembly. The design allows for easy installation and provides a consistent, reliable seal that meets professional standards for industrial safety.

Suitable for

• Industrial machinery and equipment
• Electrical control cabinets and enclosures
• Automation systems
• General electrical installations requiring strain relief

When it may not be suitable

This cable gland is not intended for use in high-pressure washdown environments or areas requiring complete submersion, as it is rated for IP65 protection rather than higher levels like IP68 or IP69K. Additionally, it is not suitable for applications involving extreme chemical exposure that could degrade the brass material or the sealing components.

Key specifications

• Material: Nickel-plated brass
• Thread size: PG13.5
• Protection rating: IP65
• Function: Cable entry with strain relief

How to use

To install the cable gland, first ensure the mounting hole is properly sized for the PG13.5 thread. Insert the gland body through the enclosure wall and secure it firmly using the appropriate locknut. Once the gland is mounted, pass the cable through the opening. Tighten the compression nut to secure the cable and activate the internal sealing and strain relief mechanism. Ensure that the nut is tightened sufficiently to achieve the required seal without damaging the cable jacket.

What to consider before purchase

• Verify that the PG13.5 thread size matches your existing enclosure or mounting hole.
• Check the cable diameter to ensure it falls within the clamping range of the gland.
• Confirm that the IP65 rating meets the environmental requirements of your specific application.

Usage recommendations

For optimal performance and safety, always ensure that the cable gland is tightened to the manufacturer's recommended torque specifications. Regularly inspect the connection for signs of wear or loosening, especially in environments subject to vibration.
