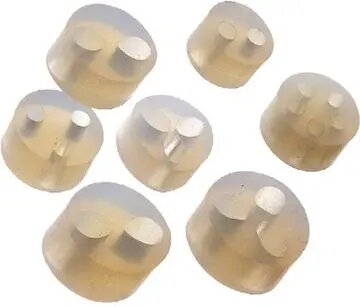

Lapp Skintop DIX Sealing Insert for Cable Glands, PG16, 4x6mm Holes, IP54

The Lapp Skintop DIX sealing insert is a specialized component engineered for integration with PG16 cable glands. This high-quality insert allows for the passage of multiple cables through a single gland, ensuring that each individual line is securely sealed and protected. Designed for industrial applications, it provides an effective barrier against environmental factors while maintaining organized cable routing.

Advantages

This sealing insert offers significant benefits for complex electrical installations by enabling the management of multiple cables within a single entry point. Its robust construction ensures reliable strain relief, which helps prevent accidental cable pull-out and reduces mechanical stress on connections. The design facilitates a clean and professional installation, contributing to better cable organization and long-term durability of the electrical system.

Suitable for

• Industrial control cabinets and electrical enclosures
• Multi-cable routing in automation systems
• Applications requiring organized cable management
• Environments where protection against dust and water spray is necessary

When it may not be suitable

This product is not intended for high-pressure washdown environments or full submersion, as it is rated for IP54 protection. It is also not compatible with cable glands other than the specified PG16 size.

Key specifications

• Compatibility: PG16 cable glands
• Number of holes: 4
• Hole diameter: 6 mm
• Protection rating: IP54
• Material: Durable sealing compound

How to use

To install the Lapp Skintop DIX sealing insert, first ensure that the cable gland is properly mounted to the enclosure. Remove the standard sealing ring from the gland and insert the DIX multi-hole seal. Feed the individual cables through the designated 6mm holes. Once the cables are positioned, tighten the cap nut of the cable gland to compress the insert, which will seal the gaps around the cables and provide the necessary strain relief.

What to consider before purchase

• Verify that your cable diameter is exactly 6 mm for a proper seal
• Ensure your existing cable gland is a PG16 size
• Confirm that the IP54 rating meets the environmental requirements of your installation site

Usage recommendations

For optimal performance and to maintain the IP54 rating, ensure that all four holes are occupied by cables. If a hole is not in use, it must be sealed with a suitable dummy plug to prevent moisture and dust ingress.
