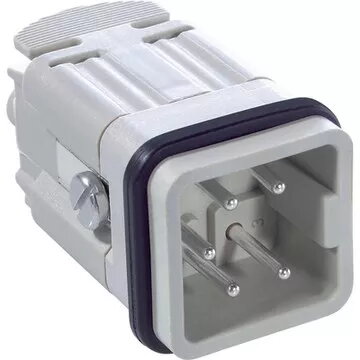

Connector Lapp EPIC KIT H-A 4 SS TGV M20 — crimp, flush mount, M20 thread, 23 A

Lapp EPIC KIT H-A 4 SS TGV M20 — crimp, flush mount, M20 thread, 23 A is a complete connector kit for creating sealed panel-mounted electrical connections. The kit is intended for crimp termination and installation into a flush mounting cutout with an M20 thread. Rated for 23 A, it provides a compact single-point solution for machinery, control cabinets and industrial equipment where a robust, panel-mounted electrical interface is required.

Advantages

The kit offers a ready-to-install assembly for crimped terminations, minimizing on-site preparation and ensuring repeatable contact quality. Its M20 threaded coupling enables secure flush mounting in panels, reducing the risk of mechanical strain on the cable entry. Designed for industrial use, the connector supports currents up to 23 A and delivers reliable electrical continuity and mechanical stability in confined installation spaces.

Suitable for

• Panel-mounted power and signal connections in industrial machinery
• Control cabinet cable entry points requiring sealed M20 connectors
• Applications where crimp termination and flush mount installation are preferred
• Retrofit or new installations with compact space and 23 A current needs

Key specifications

• Mounting type: flush mount with M20 thread
• Termination method: crimp contacts
• Rated current: 23 A
• Contact arrangement: 4 positions
• Intended environment: industrial and machinery panel installations

How to use

Prepare conductor ends by stripping insulation to the recommended length for the crimp contacts supplied with the kit. Use an appropriate crimping tool to attach contacts to conductors according to the manufacturer’s contact crimping specifications. Insert crimped contacts into the connector housing until they lock into place, then install the connector through the panel cutout and secure it using the M20 threaded coupling and associated sealing elements. Verify contact retention and correct mating with the counterpart connector before applying power.

Usage recommendations

Use only crimp contacts and tools specified for the connector family to ensure reliable electrical and mechanical performance. Observe recommended torque values for the M20 coupling and maintain proper cable bend radius at the entry to prevent strain. For installations exposed to harsh environments, confirm the selected sealing and gasket components are appropriate for the ambient conditions.
