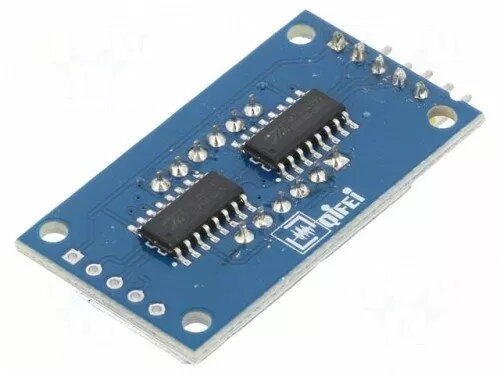

LED display module TM1637, 3.3–5 V DC, dimensions 46×22×10 mm

Compact LED display module based on the TM1637 driver, designed for numerical and basic segment indications in embedded projects, clocks, counters and measurement panels. The module accepts 3.3–5 V DC supply and presents four 7-segment digits in a 46×22×10 mm housing. Communication uses a simple two-wire interface compatible with common microcontroller platforms, providing straightforward control of digits, colon/dot segments and brightness through the TM1637 protocol.

Advantages

The module combines a small physical footprint with low power consumption and easy integration into breadboard or PCB-mounted projects. Its TM1637 driver handles multiplexing and brightness control internally, reducing microcontroller pin usage and firmware complexity. Operating across a 3.3–5 V supply range ensures compatibility with both 3.3 V and 5 V systems. The compact 46×22×10 mm dimensions make it suitable for tight enclosures and compact instrument panels.

Suitable for

• Digital clocks and timers
• Counters and event displays
• Simple measurement panels and readouts
• Prototyping with microcontrollers (Arduino, ESP, STM32)

Key specifications

• Driver: TM1637 LED driver with integrated multiplexing and brightness control
• Display format: 4-digit 7-segment plus colon/dot indicators
• Supply voltage: 3.3–5 V DC
• Typical power consumption: low-power operation depending on brightness
• Interface: two-wire serial interface (clock and data lines)
• Physical dimensions: 46 × 22 × 10 mm

How to use

Provide a stable 3.3–5 V DC supply to the module and connect the module’s data and clock lines to the corresponding microcontroller GPIO pins. Use a TM1637-compatible library or implement the TM1637 timing protocol in firmware to send digit and segment data. Control brightness and enable/disable the display via the driver commands. Place the module on a breadboard or mount it on a panel using appropriate fastening; ensure the module is not exposed to voltages beyond the specified supply range.

Usage recommendations

For reliable operation, use decoupling capacitors near the supply pins and keep signal lines short to reduce interference. Adjust brightness to suit ambient lighting and to limit power draw. Confirm voltage levels when interfacing with 5 V or 3.3 V microcontrollers; add level shifting if required. When used in enclosures, provide adequate ventilation to avoid heat accumulation from adjacent components.
