header-product Legrand TX3 Miniature Circuit Breaker 1P 2A Type B 6kA
13.99 €

Legrand TX3 Miniature Circuit Breaker 1P 2A Type B 6kA

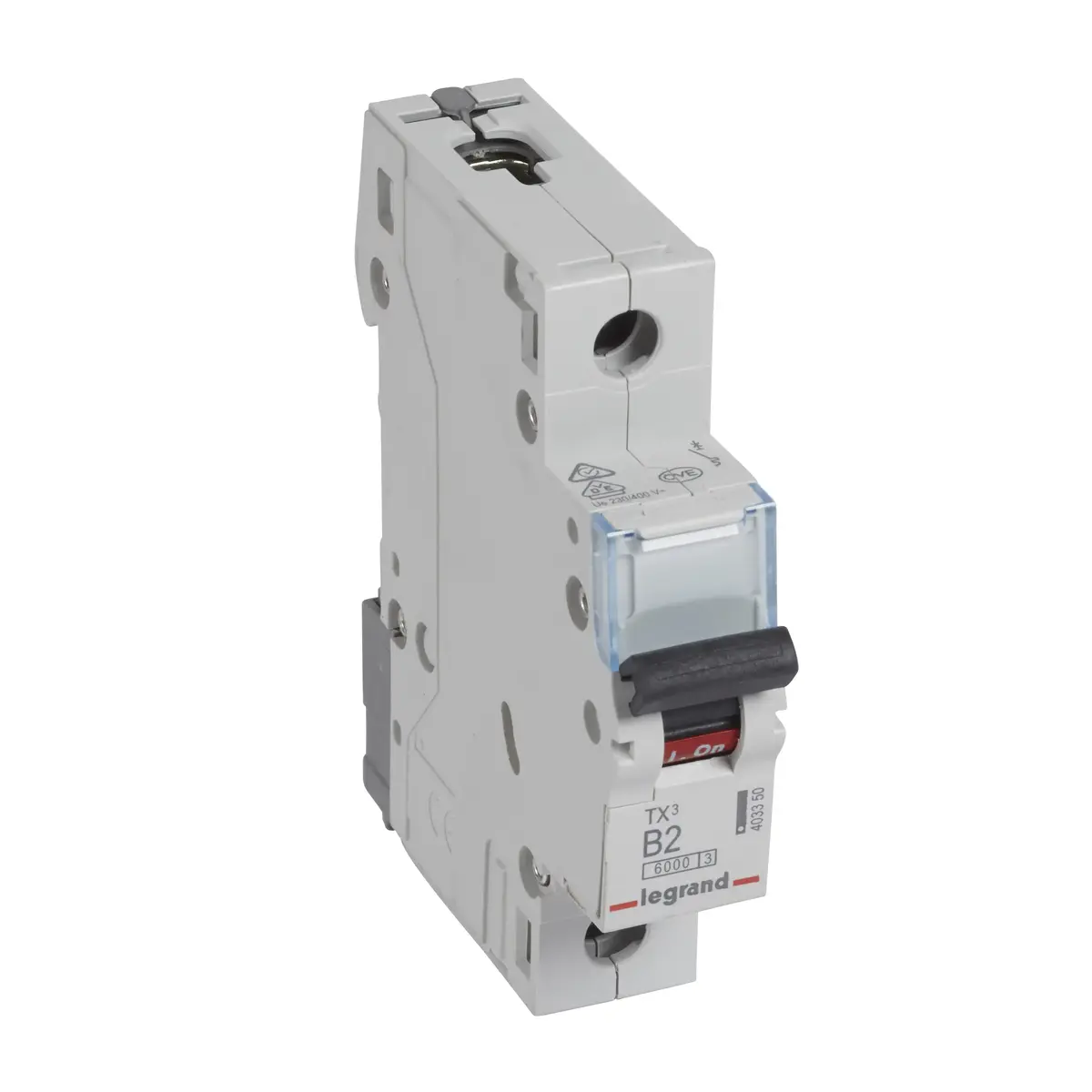

Legrand TX3 1P 2A Type B Miniature Circuit Breaker Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Legrand TX3 Miniature Circuit Breaker 1P 2A Type B 6kA

{{email}}
You keep track of price changes

Legrand TX3 Miniature Circuit Breaker 1P 2A Type B 6kA

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Legrand TX3 is a 1-pole miniature circuit breaker designed for electrical protection with a rated current of 2 A and a breaking capacity of 6 kA. Operating at 240-415 V and 50-60 Hz, this Type B device ensures reliable circuit safety in residential and commercial installations. It features an IP20 protection rating and is engineered for standard DIN rail mounting, providing efficient overload and short-circuit protection for various electrical systems.
Available for order: 38 pcs.
Warranty: 2 Years
SKU: 12538505
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
12.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
15.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Legrand TX3 Miniature Circuit Breaker is a high-quality electrical protection device designed to safeguard residential and commercial circuits against overloads and short circuits. With a rated current of 2 A and a breaking capacity of 6 kA, this single-pole device provides reliable performance in standard electrical installations. It is engineered to operate efficiently within a voltage range of 240-415 V at 50-60 Hz, ensuring consistent safety for connected equipment.

Advantages

This circuit breaker offers exceptional reliability and ease of installation due to its compact design and compatibility with standard DIN rail mounting systems. The Type B tripping characteristic makes it ideal for protecting circuits with low inrush currents, such as lighting and general-purpose outlets. Its robust construction ensures long-term durability, while the clear design allows for quick integration into existing distribution boards, providing essential protection for modern electrical systems.

Suitable for

  • Residential lighting circuits
  • General-purpose power outlets
  • Small electrical appliances
  • Commercial distribution boards

This device may not be suitable for circuits with high inrush currents, such as those powering large motors or heavy industrial machinery, where a Type C or Type D breaker would be required to prevent nuisance tripping. It is also not intended for outdoor use without a suitable protective enclosure, as it carries an IP20 rating.

Key specifications

  • Rated current: 2 A
  • Breaking capacity: 6 kA
  • Number of poles: 1
  • Tripping characteristic: Type B
  • Voltage rating: 240-415 V
  • Frequency: 50-60 Hz
  • Mounting: DIN rail
  • Protection rating: IP20
  • Dimensions: 17.8 mm x 77.8 mm x 88 mm

How to use

The Legrand TX3 should be installed by a qualified electrician onto a standard DIN rail within a distribution board. Ensure that the power supply is disconnected before installation. The device is snapped onto the rail and connected to the electrical circuit according to the wiring diagram. Once installed, the toggle switch can be used to manually open or close the circuit, and it will automatically trip in the event of an electrical fault.

What to consider before purchase

  • Verify that the 2 A rated current is appropriate for your specific circuit load.
  • Ensure the Type B characteristic matches the requirements of your connected devices.
  • Check that your distribution board has sufficient space for a 17.8 mm wide module.
  • Confirm that the installation environment meets the IP20 protection requirements.

Usage recommendations

Always ensure that the circuit breaker is correctly sized for the wiring and the load it is intended to protect to prevent fire hazards and equipment damage. Regularly inspect the distribution board for any signs of wear or loose connections.
All features
Type: Characteristics of the device.
Type B
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Height: The measurement of the product from head to foot or from base to top.
88 mm
Input voltage: The voltage (V) which is required to power the product.
240 - 415
Width: The measurement or extent of something from side to side.
17.8 mm
Depth: The distance from the front to the back of something.
77.8 mm
Rated current:
2 A
Input frequency: The frequency (Hz) which is required to power the product.
50 - 60
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP20
Number of poles:
1
Installation type: The way in which the product is being installed.
DIN-rail
Rated voltage:
230 V
Pollution degree:
2
Circuit breaker type:
Miniature circuit breaker
Dielectric strength:
4000 V
Doesn't contain:
Halogen
Energy limiting class:
3
