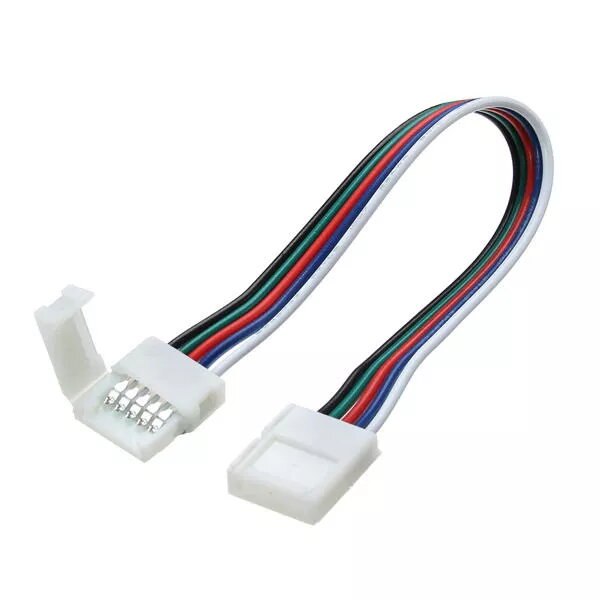

LED strip joint connector LEMLUX LED-JOINT-RGBW15 12 mm for RGBW strips with 15 cm wire

LEMLUX LED-JOINT-RGBW15 is a joint connector for 12 mm RGBW LED strips that includes a 15 cm attached wire. It is designed to establish a reliable electrical and mechanical connection between two RGBW strip segments or between a strip and power/control cabling, offering a short flexible lead to bridge gaps, bypass obstacles, or reach controllers and power supplies during LED lighting installations.

Advantages

The connector provides a compact and secure connection without soldering, reducing installation time and the need for specialized tools. Its fixed 15 cm cable allows flexible placement and easy routing around corners or obstacles while maintaining stable contact for all RGBW channels. The device is compatible with standard 12 mm RGBW strips and simplifies linking strips to controllers or power sources, ensuring consistent signal and power transfer for multicolor and white channels.

Suitable for

• Joining two 12 mm RGBW LED strip segments where a short flexible cable is required
• Connecting a 12 mm RGBW LED strip to a controller or power supply positioned away from the strip
• Routing LED strip connections around corners, behind fixtures, or through small gaps
• Temporary or permanent installations where solderless connection is preferred

Key specifications

• Compatibility: 12 mm RGBW LED strips
• Cable length: 15 cm attached flexible wire
• Contact type: multi-conductor connection for RGBW channels plus common positive/ground as applicable
• Connection method: solderless crimp/clip joint designed for strip pad alignment
• Use case: indoor LED strip installations and controller/power wiring
• Mechanical: compact inline housing to minimize profile at connection points

How to use

Prepare the LED strip ends by ensuring the copper pads are clean and the strip width matches the 12 mm connector. Align the strip pads with the connector contacts and insert the strip fully into the connector until the contact plate engages. Close or secure the connector according to its design to establish electrical contact. Use the 15 cm attached wire to route and connect to the controller or power supply; ensure correct polarity and channel mapping for RGBW (match channels R, G, B, W and the common positive/ground). After connection, test the strip with low power to confirm proper color and white channel operation before finalizing installation.

Usage recommendations

Use in dry, indoor environments and avoid exposing the connector to moisture unless it is specified as waterproof. Verify strip compatibility (12 mm RGBW) and observe correct channel wiring. For permanent or load-critical installations, consider additional mechanical support or protective tubing over the joint and avoid exceeding the current rating of the strip and controller to prevent overheating.
