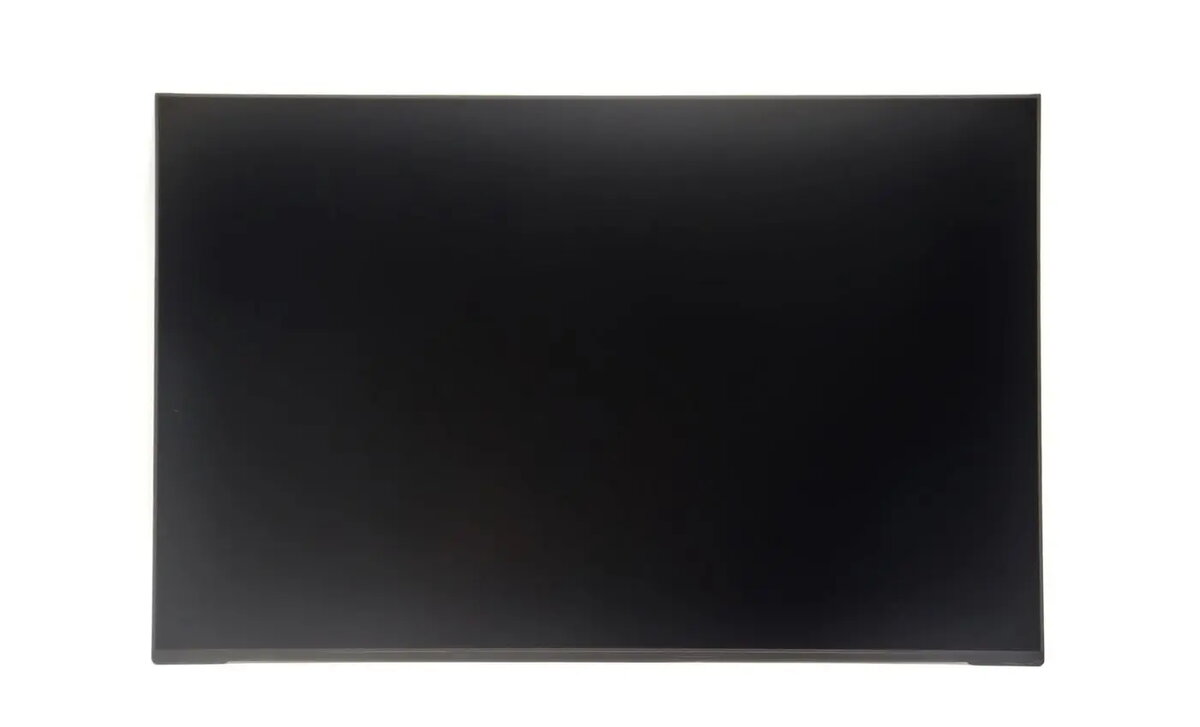

Notebook display panel for Lenovo 16-inch models (replacement screen, MPN 5D11U28614)

This replacement 16-inch notebook display panel is designed for compatible Lenovo laptop models and serves as a direct-screen replacement for repairs and refurbishments. It restores visual output and display functionality to devices with cracked, damaged or non-functioning screens. The panel fits the same mounting points and connector types used in supported Lenovo 16-inch systems, enabling repair shops and end users to replace a faulty screen without modifying the host device.

Advantages

The display panel provides a like-for-like replacement that recovers the original viewing area and image clarity. It supports the same mechanical fit and electrical interface as the factory unit, helping to reduce repair time and maintain device integrity. Using a compatible panel avoids the need for full system replacement and can extend the usable life of the laptop.

Suitable for

• Repairing laptops with cracked or physically damaged screens.
• Replacing panels with dead pixels, backlight failure, or distorted images.
• Refurbishment projects where restoring the original screen size and fit is required.
• Technicians and repair centres performing component-level replacements.

When it may not be suitable

This panel is intended as a direct replacement for compatible Lenovo 16-inch models. It may not be suitable for laptops that use a different screen size, connector type or mounting arrangement. If the device has additional hardware issues such as graphics board failure, hinge damage that alters mounting points, or BIOS restrictions tied to original display identifiers, replacing the panel alone may not restore full functionality.

Key specifications

• Display diagonal: 16 inches (measured across the viewing area).
• Form factor: notebook LCD panel designed for 16-inch laptop chassis.
• Connector type: standard laptop display interface compatible with specified Lenovo 16-inch models.
• Mounting: designed to match original screw points and bezel alignment of supported systems.
• Functionality: restores visual output and display features present in the original panel; compatibility with touch features depends on original model configuration.

How to use

Power down the laptop, disconnect the battery and follow the manufacturer service instructions for display replacement. Remove the bezel and any screws securing the original panel, detach the display cable at the connector, and carefully lift the old panel from its frame. Position the replacement panel in the same orientation, reconnect the display cable ensuring a secure connection, and fasten the mounting screws. Reinstall the bezel and reconnect the battery, then power on the device and verify screen image, backlight and any touch functionality if applicable.

What to consider before purchase

• Confirm the exact model and display specifications of your Lenovo laptop to ensure mechanical and electrical compatibility.
• Check whether your original screen included touch functionality and whether the replacement supports touch on that model.
• Verify connector type and mounting arrangement against the original panel to avoid fitment issues.
• Consider professional installation if you are not familiar with laptop disassembly to prevent additional damage.

Usage recommendations

Handle the display panel by its edges, avoid touching the display surface and flexing the panel. Use anti-static precautions when working inside the laptop. After installation, run a screen test to check for dead pixels, uniform backlight and correct resolution settings. If any incompatibility is detected, power down and recheck connections or consult a qualified technician.
