AV transmitter LevelOne HDMI over Cat.5 Transmitter

Name: AV transmitter LevelOne HDMI over HVE-9118T
Brand: LEVELONE
SKU: 1101212
Price: 339.99 EUR
Availability: OutOfStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

AV transmitter LevelOne HDMI over Cat.5 Transmitter 300m 8 Channel Outputs

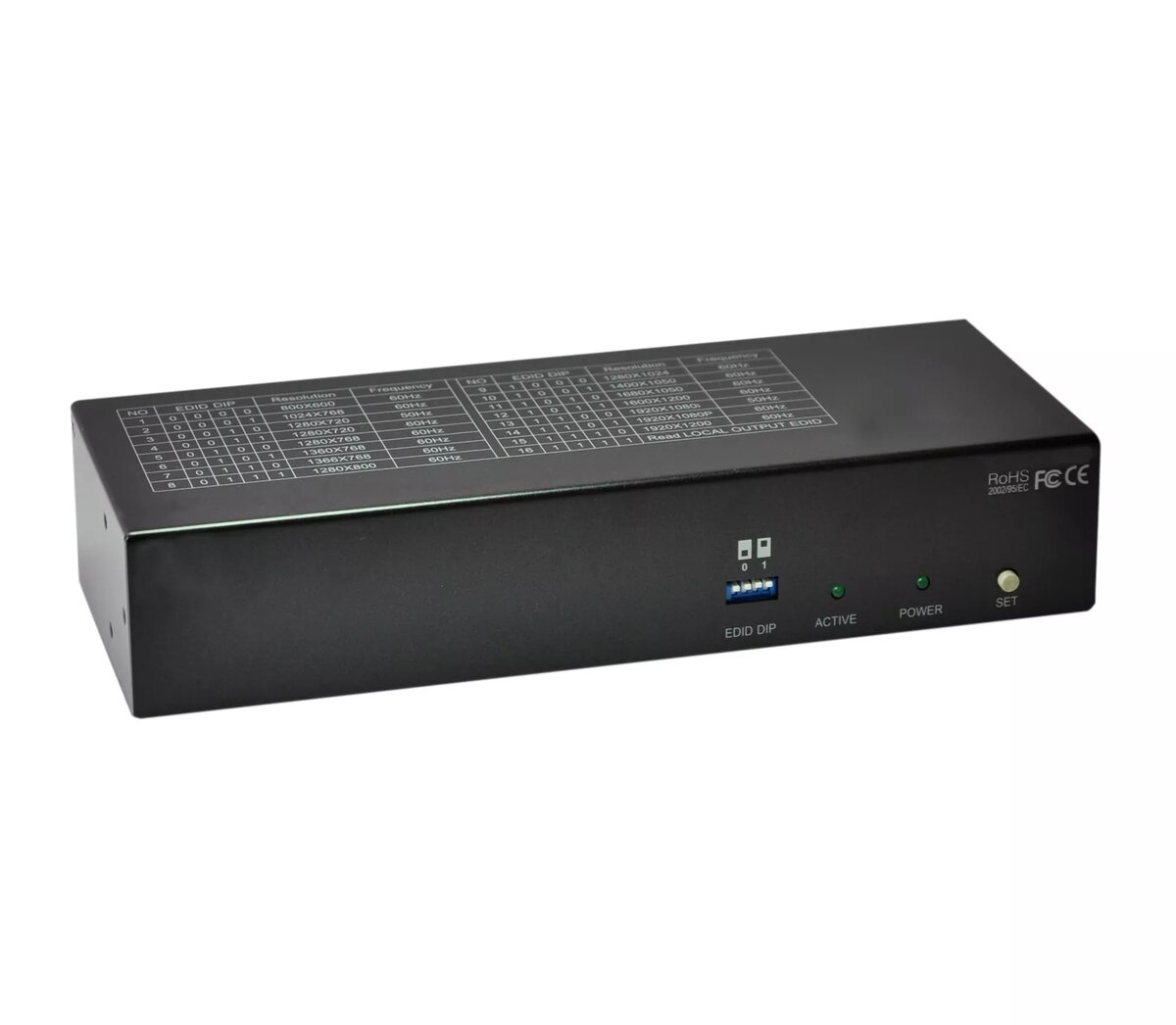

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 1

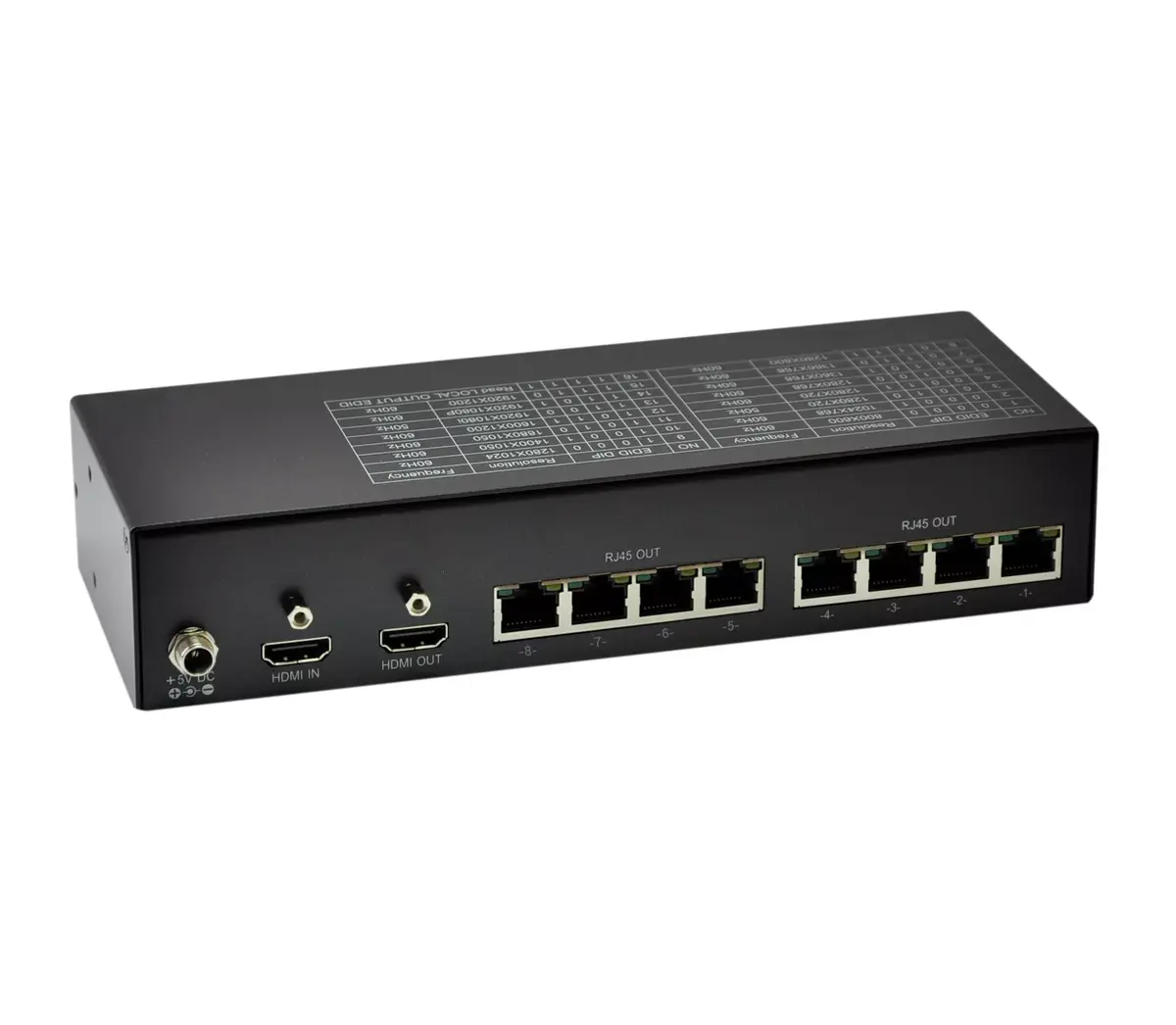

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 2

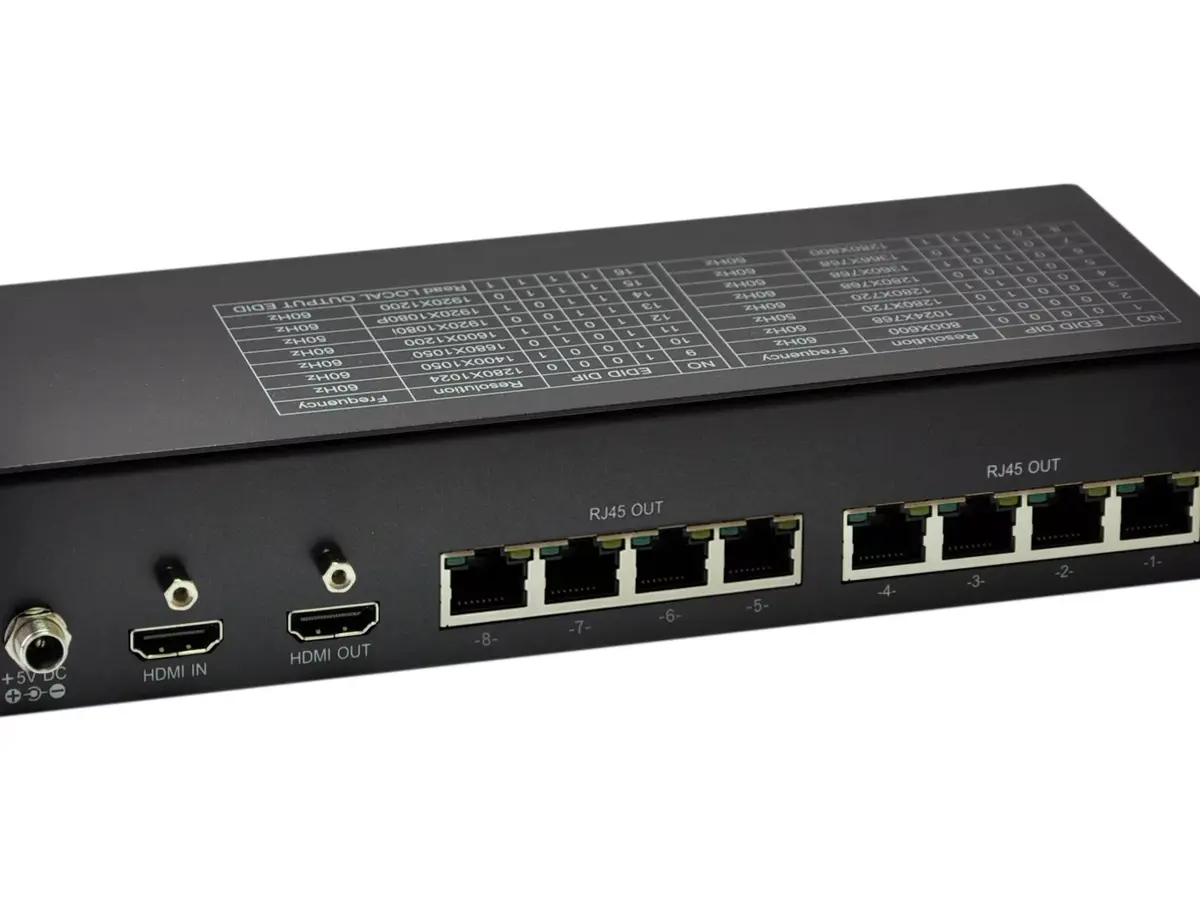

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 3

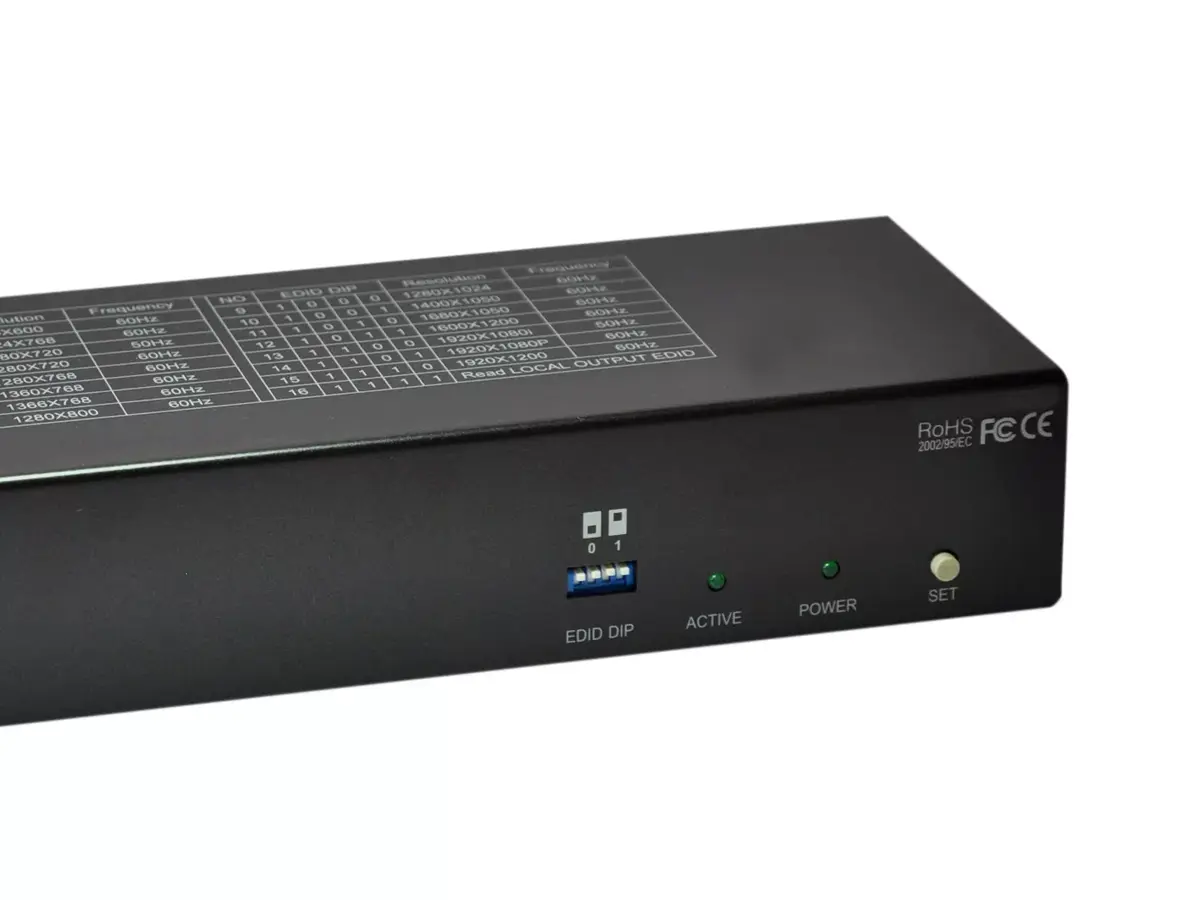

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 4

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 5

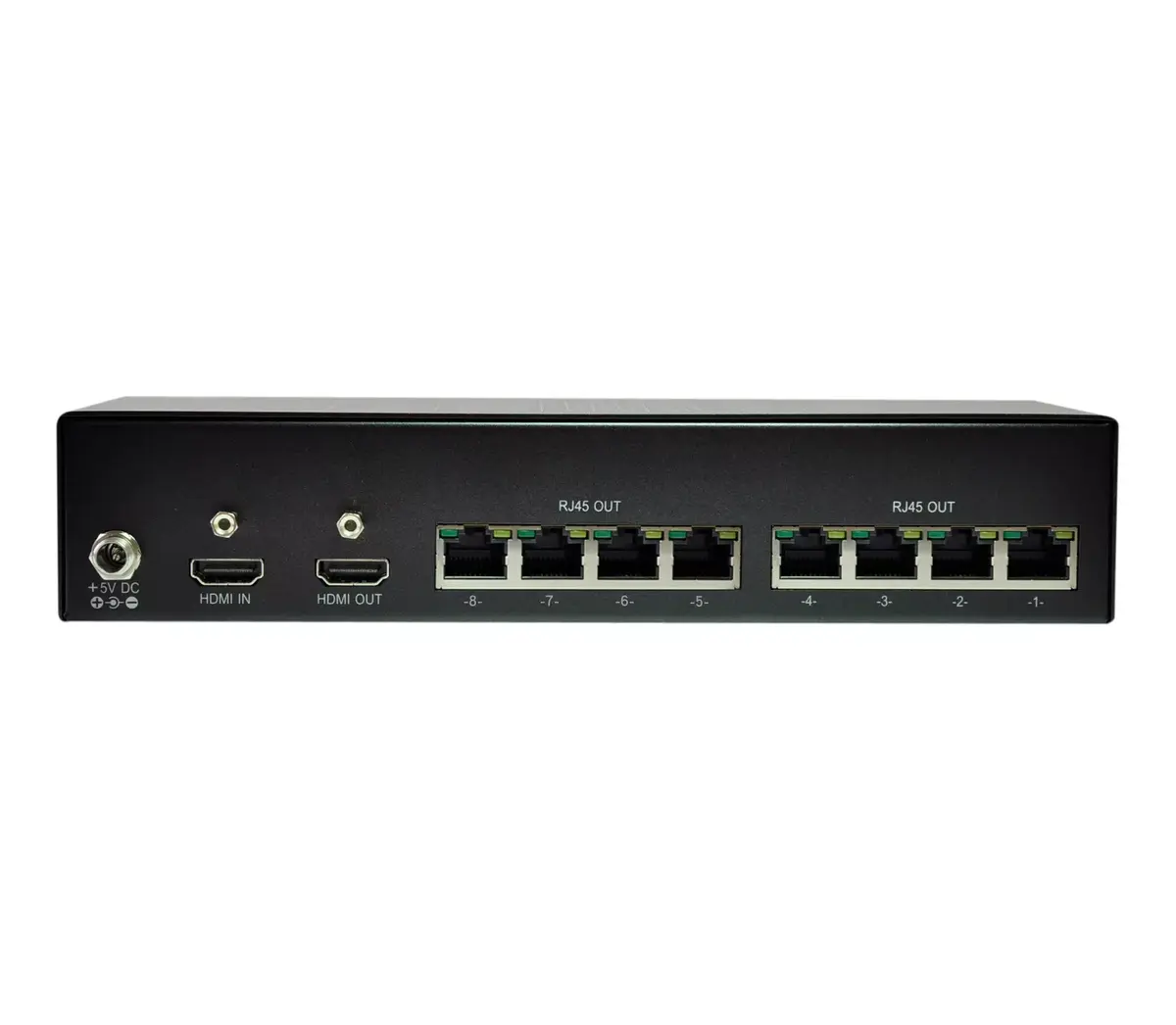

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 6

Short description

The LevelOne HDMI over Cat.5 Transmitter allows you to extend HDMI signals up to 300 meters with 8 channel outputs. It supports a maximum resolution of 1920 x 1200 pixels and is compatible with Cat5 cables. With a compact design (90mm x 220mm x 45mm) and low power consumption (max 900 mA), this device is ideal for various AV applications. It comes with an AC cable and is packaged in a sturdy box weighing 1.18 kg.

Warranty: 2 Years

SKU: 1101212

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne HVE-9118T HDMI Transmitter is part of the HVE-91 series, designed to extend Ultra/Full HD (4K/1080P) HDMI signals up to 300 metres over Ethernet cabling. It features an integrated 4K Ultra HD video scaler to automatically find and deliver the optimal signal regardless of input format, and provides one local HDMI output plus eight link ports to connect up to eight receivers for long-range distribution without fiber optics.

Advantages

The transmitter supports extended-range HDMI distribution over standard Ethernet cables, allowing 4K2K resolution at distances up to 300 m. Built-in 4K scaling ensures compatibility with varying input signals. The unit includes EDID management on HDMI outputs and a screw-in power socket for improved safety and secure power connection.

Key specifications

Model: LevelOne HVE-9118T
Series: HVE-91 HDMI Extender
Range: Up to 300 metres for 4K2K/1080P over Ethernet cable
Video scaler: Built-in 4K Ultra HD scaler
Outputs: 1 HDMI local output, 8 link ports to receivers
EDID management: Yes (on HDMI outputs)
Power connector: Screw-in power socket for added safety

How to use

Connect the source device to the transmitter’s HDMI input and attach a local display to the HDMI local output if required. Use CAT5e/6 Ethernet cables to connect the transmitter’s link ports to compatible receivers placed up to 300 m away. Ensure the transmitter is powered via the screw-in power socket and configure EDID settings on the HDMI outputs as needed to match display requirements. The built-in scaler will adjust output to an optimal resolution based on the input and connected displays.

Recommendations

For reliable performance at longer distances use high-quality shielded CAT6 cables and ensure receivers are compatible with the HVE-91 series. Verify EDID settings when connecting diverse displays and keep firmware of connected devices up to date.

Specifications

Weight:: 0.612 kg
Product colour:: Black

All features

Ports & interfaces

HDMI in:: 1
Number of HDMI outputs:: 1
RJ-45 output ports:: 8

Technical details

Type:: AV transmitter
Maximum transfer distance:: 300 m
HDCP & EDID bypass:: Yes

Power

Input current:: 2
AC input voltage:: 5
Power consumption (transmitter) (max):: 900 mA

Weight & dimensions

Weight:: 0.612 kg
Height:: 45 mm
Width:: 90 mm
Depth:: 220 mm
Transmitter dimensions (WxDxH):: 220 x 83 x 44
Transmitter weight:: 650 g

Operational conditions

Operating relative humidity (H-H):: 10 - 80
Operating temperature (T-T):: 0 - 48

Packaging data

Package dimensions (WxDxH):: 173 x 305 x 122
Package weight:: 1181 g
Package type:: Box

Packaging content

AC adapter included:: Yes
Cables included:: AC
Quick start guide:: Yes

Logistics data

Country of origin:: Taiwan
Master (outer) case height:: 630 mm
Master (outer) case width:: 400 mm
Master (outer) case gross weight:: 13000 g
Master (outer) case length:: 330 mm
Products per master (outer) case:: 10 pc(s)

Features

LED indicators:: Power, Activity
Maximum resolution:: 1920 x 1200
Product colour:: Black
Supported video modes:: 1080p
Bandwidth:: 340 MHz
Maximum refresh rate:: 60 Hz

Network

Cable types supported:: Cat5
