header-product AV transmitter LevelOne HDMI over Cat.5 Transmitter HDBaseT 100m 4 Channel Outputs 802.3af PoE
801.49 €

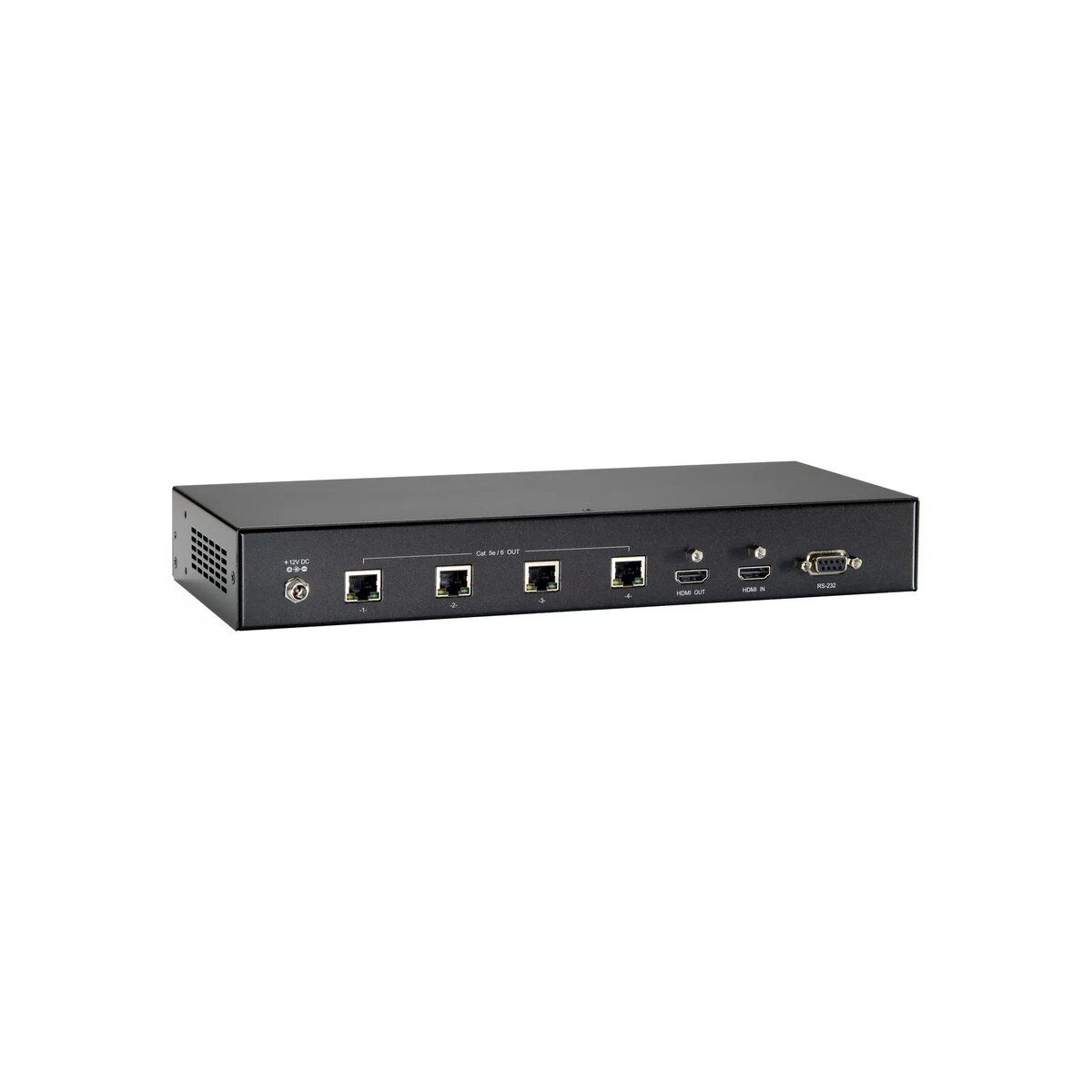

AV transmitter LevelOne HDMI over Cat.5 Transmitter HDBaseT 100m 4 Channel Outputs 802.3af PoE

AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 1
AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 2
AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 1
AV transmitter LevelOne HDMI over Cat.5 Transmitter Photo 2

Excellent choice

Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

AV transmitter LevelOne HDMI over Cat.5 Transmitter HDBaseT 100m 4 Channel Outputs 802.3af PoE

{{email}}
You keep track of price changes

AV transmitter LevelOne HDMI over Cat.5 Transmitter HDBaseT 100m 4 Channel Outputs 802.3af PoE

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The LevelOne HDMI over Cat.5 Transmitter supports HDBaseT technology, allowing transmission of high-definition video up to 3840 x 2160 pixels over distances of 100 meters. It features 4 channel outputs and is powered via 802.3af PoE, making installation easy and flexible. Compatible with Cat5e and Cat6 cables, it operates at 12V with a maximum power consumption of 5000 mA. Compact dimensions of 300 x 160 x 44 mm ensure it fits in various setups.
Available at price 801.49 €: 6 pcs.
Total available for order: 30 pcs.
Warranty: 2 Years
SKU: 628673
Charging device included Charging device included
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.27 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
29.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 267.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities
36 months installment: from 22.26 euros per month
Leasing for legal entities: from 27.89 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The HVE-92 series is an HDMI extension solution that uses HDBaseT technology to transmit HDMI video and multi-channel audio up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD over Cat5e or Cat6 cable at distances up to 100 m. The devices include EDID priority management for HDMI outputs with EDID Hot Plug Detection and provide bi-directional RS-232 and IR pass-through to control connected equipment from either the source or display location. Designed for straightforward installation, the HVE-92 series reduces cabling complexity while maintaining high video and audio quality for digital signage, trade shows, home theater setups, medical environments and other public displays.

Advantages

The HVE-92 supports IEEE 802.3af PoE for simplified deployment, plug-and-play operation and built-in EDID Hot Plug Detection to ensure compatibility between source and display. Its EDID-managed HDMI outputs, bi-directional RS-232 and IR control, and transmission range of up to 100 m make it suitable for installations that require remote control and long-distance signal distribution. The unit preserves HDCP compliance and supports modern audio formats including Dolby TrueHD and DTS-HD Master Audio.

Key specifications

  • HDBaseT transmission over Cat5e/Cat6 up to 100 m
  • Maximum video resolution: 3840 x 2160 (4K x 2K) @ 30Hz and 1080p Full HD
  • IEEE 802.3af PoE compliant
  • Built-in EDID Hot Plug Detection and EDID priority management for HDMI outputs
  • Bi-directional RS-232 pass-through and IR control
  • Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1
  • Supports 3D, CEC and lip sync pass-through
  • HDMI and HDCP compliant
  • Screw-in power socket for secure connection

How to use

Connect the HDMI source to the transmitter unit and link the transmitter to the receiver with Cat5e or Cat6 cable. If available, use PoE to power the remote unit according to the network switch capabilities; otherwise connect the power adapter using the screw-in power socket. Ensure EDID settings are managed via the built-in EDID priority and verify EDID Hot Plug Detection during initial setup. Use RS-232 or IR pass-through for remote control of source or display devices. Test video resolution and audio formats to confirm proper operation.

Recommendations

For best results use high-quality Cat5e or Cat6 cable and ensure network equipment supports IEEE 802.3af if you plan to use PoE. Verify the display and source devices support the intended 4K @ 30Hz resolution and the required audio codecs. For installations longer than typical office runs, check cable routing and shielding to minimize interference.
All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
Taiwan

Technical details

Audio system: System used to play music or speech.
Multichannel
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.
100 m
Carrier frequency:
38 kHz
HDCP & EDID bypass:
Yes
Type: Characteristics of the device.
AV transmitter
Material: The material from which a thing is or can be made e.g. wood, plastic.
Metal

Packaging data

Package height: The distance from the top to the bottom of the packaging.
120 mm
Package width: The distance from one side of the packaging to the other.
280 mm
Package weight: Weight of the packaged product.
2252 g
Package depth: The distance from the front to the back of the packaging.
160 mm
Package dimensions (WxDxH):
280 x 160 x 120
Package type: The type of product package e.g. box.
Box

Weight & dimensions

Transmitter dimensions (WxDxH):
300 x 160 x 44
Transmitter weight:
1272 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.38 kg
Height: The measurement of the product from head to foot or from base to top.
44 mm
Depth: The distance from the front to the back of something.
160 mm
Width: The measurement or extent of something from side to side.
300 mm

Packaging content

AC adapter included:
Yes
Cables included:
AC
Manual:
Yes

Audio

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1

Video

Bandwidth:
10.2 Gbit/s
Colour depth:
36 bit

Ports & interfaces

RS-232 input ports:
1
DC-in jack: The socket/plug where the DC electricity supply connects to the device.
Yes
Consumer Electronics Control (CEC) support:
Yes
3.5 mm (1/8-inch) out:
Yes
3.5 mm (1/8-inch) in:
Yes
RJ-45 output ports:
4
Number of HDMI outputs: Port (socket) for HDMI output.
1
HDMI in: Port (socket) for HDMI input.
1

Power

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Current:
6.6 A
Power consumption (transmitter) (max):
5000 mA
Operating voltage: Defines the range of operating voltages available
12 V

Network

Cable types supported:
Cat5e, Cat6

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
LED indicators:
Power, PoE, Link
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160
Supported video modes: The video modes that can be displayed by the device.
1080p
Baud rate:
115.2 Kbit/s
HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Yes
Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Yes
3D: The device can be used with 3D technology.
Yes
