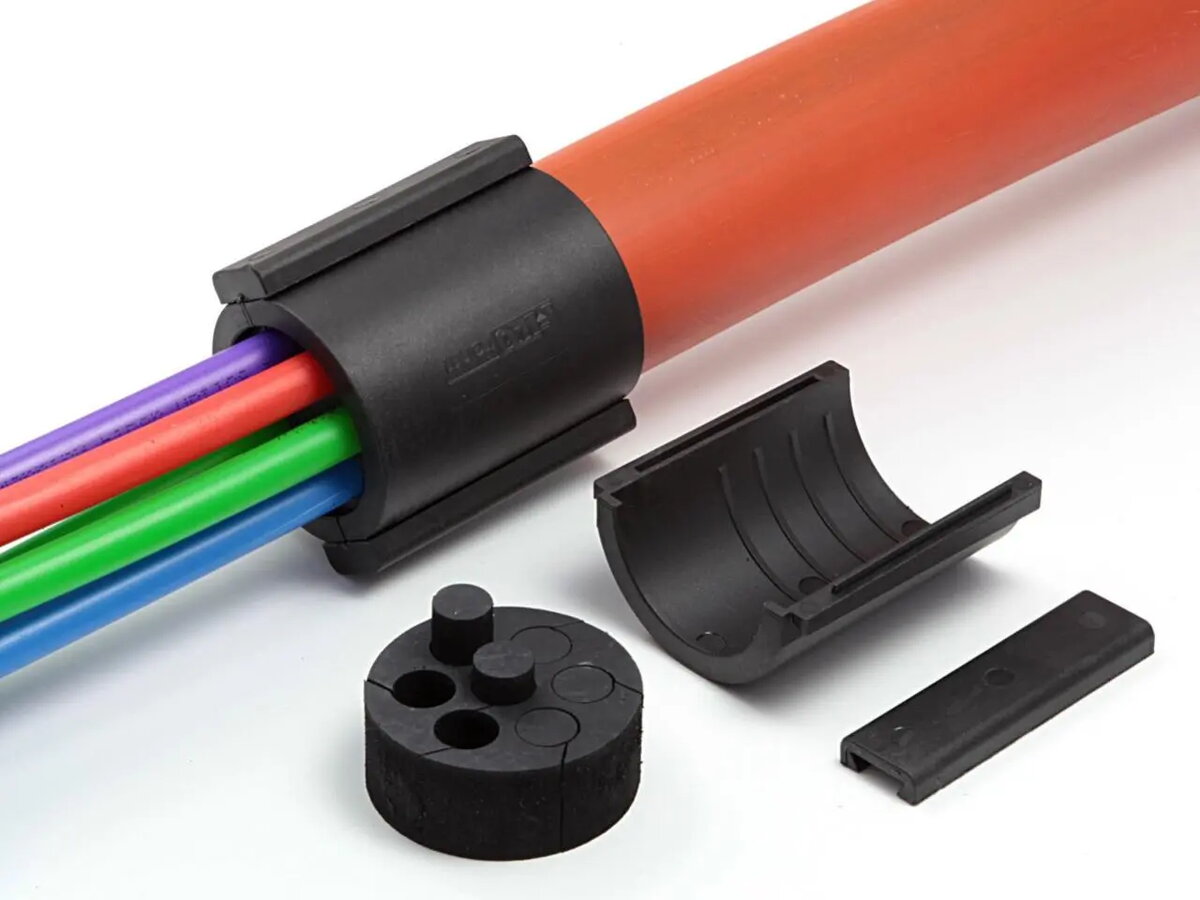

Connector & Cable Seals Lightwin 822683F, Black Polyamide, Max Water Pressure 0.25 bar

Lightwin 822683F connector and cable seals are black polyamide housings engineered to provide waterproofing for cable and connector entries in network and FTTx installations. Rated for a maximum water pressure of 0.25 bar, these seals are intended for indoor and sheltered outdoor environments where protection against moisture, dust and drafts is required. The split design enables installation around pre-terminated cables and connectors and supports tidy routing and secure environmental sealing without full re-termination.

Advantages

The polyamide construction offers chemical and mechanical resistance while remaining lightweight. A split housing design allows retrofitting around existing cables and connectors, reducing installation time. The product's water pressure rating of 0.25 bar provides a defined protection level suitable for applications that do not require high-pressure submersion. Its compact form factor contributes to neat cable management in enclosures, junctions and entry points.

Suitable for

• Indoor network and patch panel entries
• FTTx drop and building entry points under sheltered conditions
• Retrofit installations where cables and connectors are already terminated
• Cable routing through enclosures and wall penetrations with limited exposure to water pressure

When it may not be suitable

This seal is not intended for continuous immersion or applications requiring high water pressure resistance above 0.25 bar. Environments with heavy mechanical impact, extreme temperatures outside the material specification for polyamide, or outdoor locations exposed to full weather without additional protection may require more robust sealing solutions or IP-rated enclosures.

Key specifications

• Material: black polyamide
• Maximum water pressure resistance: 0.25 bar
• Split housing design for retrofit installation
• Designed for cable and connector entry sealing in network/FTTx contexts
• Compact, lightweight form for easy cable routing

How to use

Open the split housing and place it around the cable or connector to be sealed, then close the housing so the two halves engage securely. Position the assembled seal at the entry point and ensure a snug fit against the surrounding surface or enclosure opening. Where applicable, combine with compatible grommets, clamps or additional sealing agents following enclosure manufacturer guidelines to achieve the desired environmental protection. Verify that cable bend radius and connector clearance are maintained after installation.

What to consider before purchase

• Confirm compatibility with your cable diameter and connector dimensions
• Assess whether 0.25 bar water pressure resistance meets your environmental requirements
• Check if additional mechanical protection or IP-rated enclosures are needed for outdoor exposure
• Ensure material (polyamide) is suitable for the expected temperature range and chemical exposure

Usage recommendations

For best results use these seals in sheltered outdoor or indoor installations where occasional moisture or condensation is present but high-pressure water exposure is unlikely. Combine with enclosure seals or cable glands for enhanced protection and follow cable routing guidelines to prevent strain on terminations.
