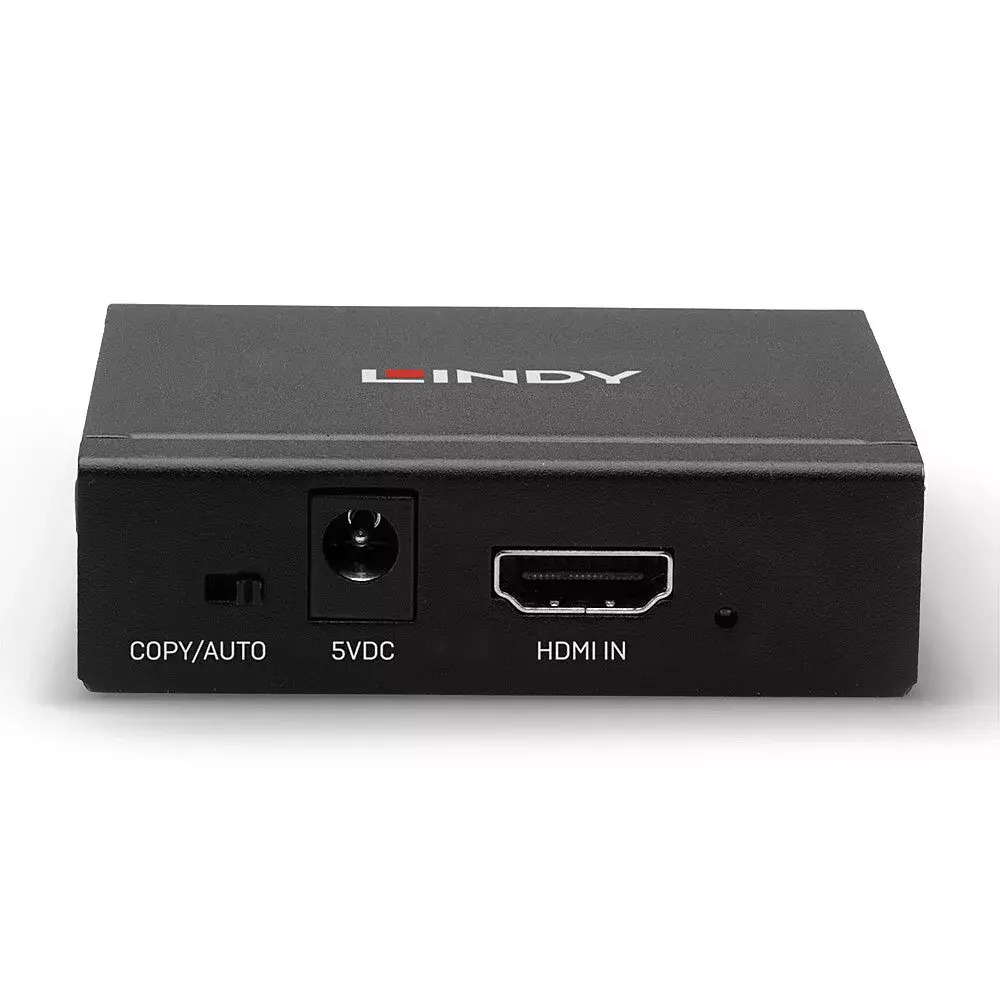

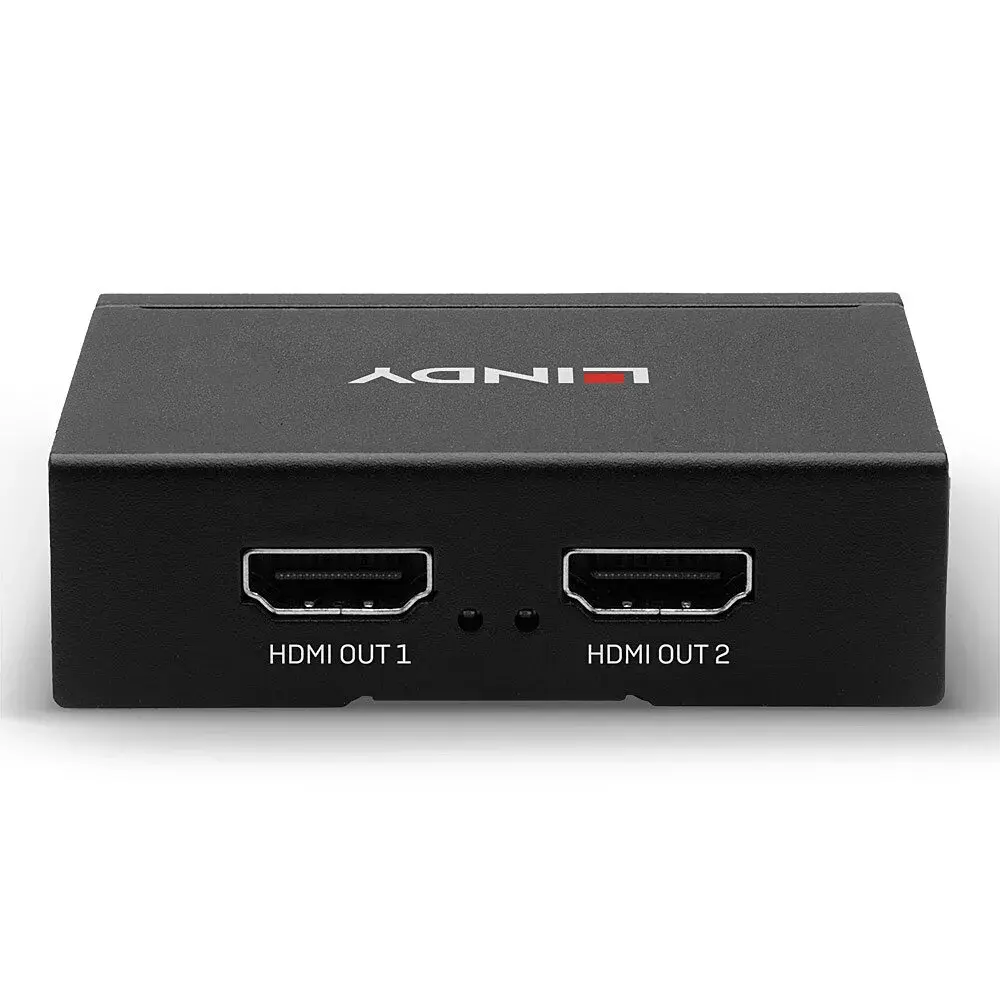

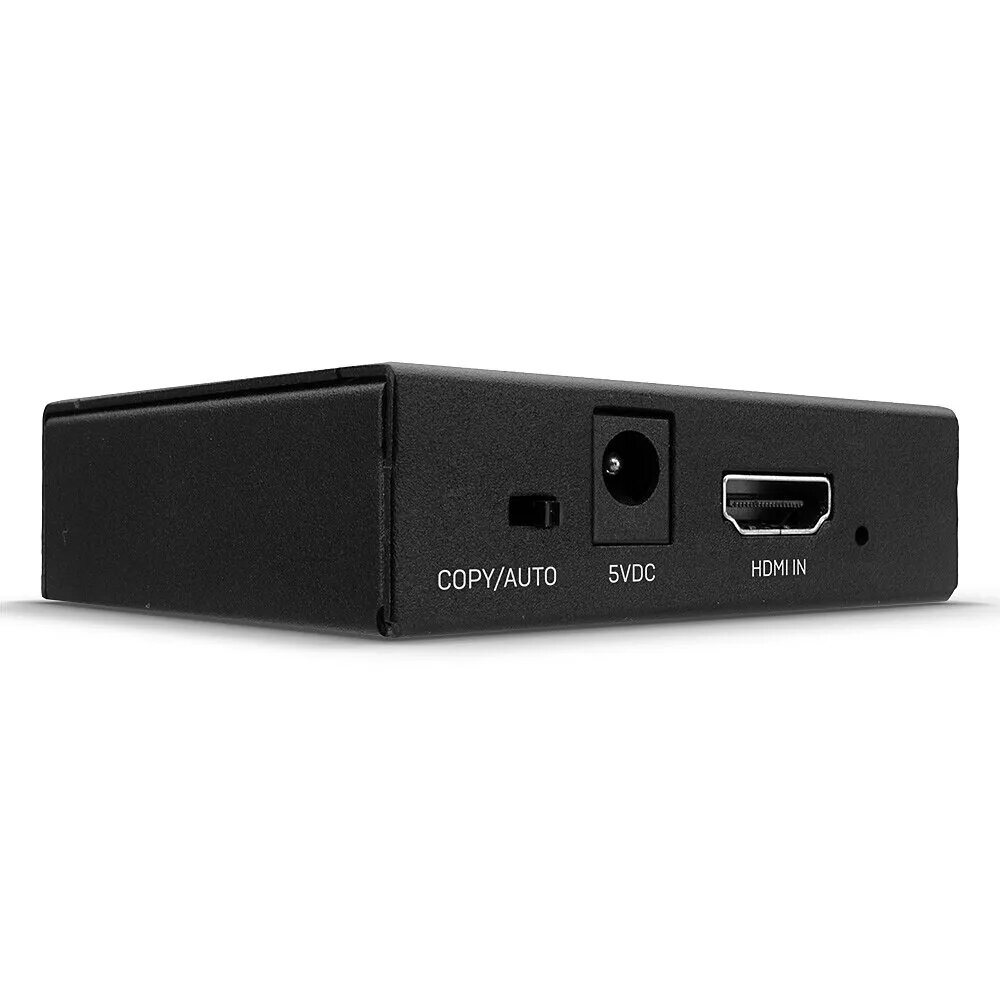

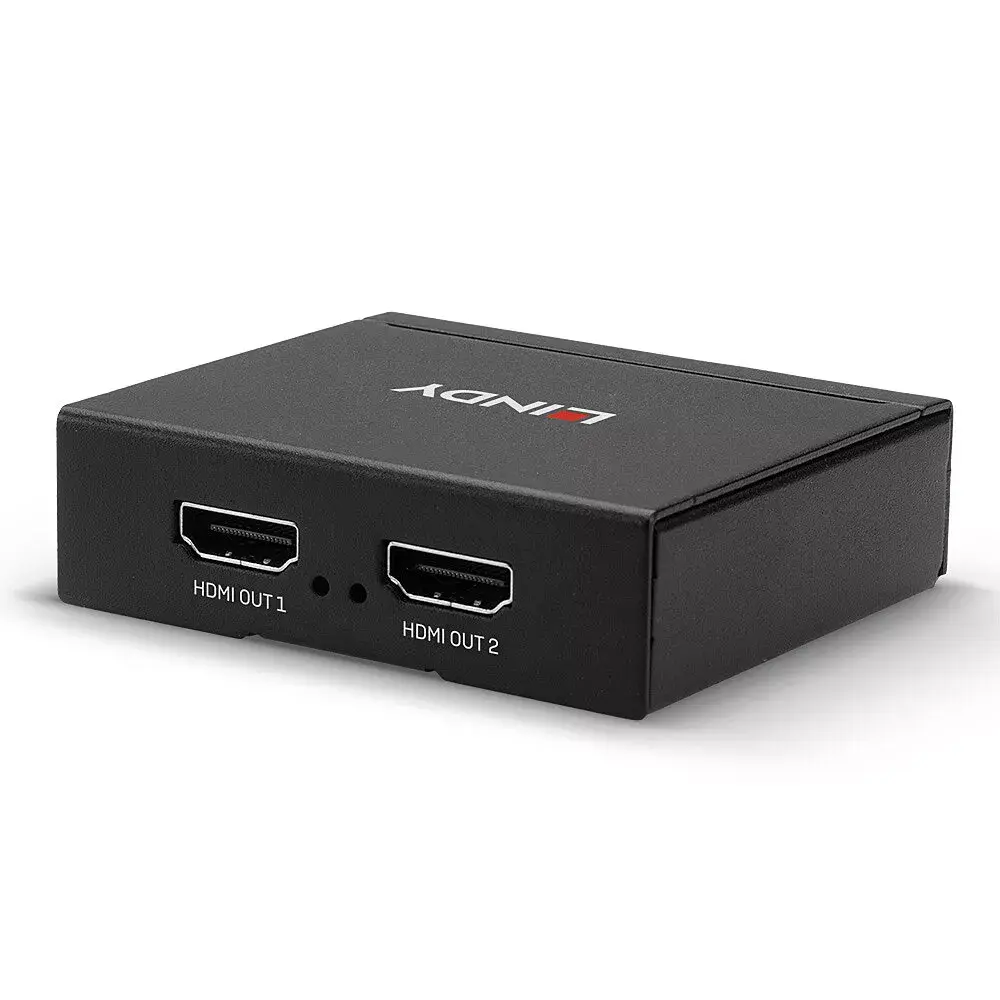

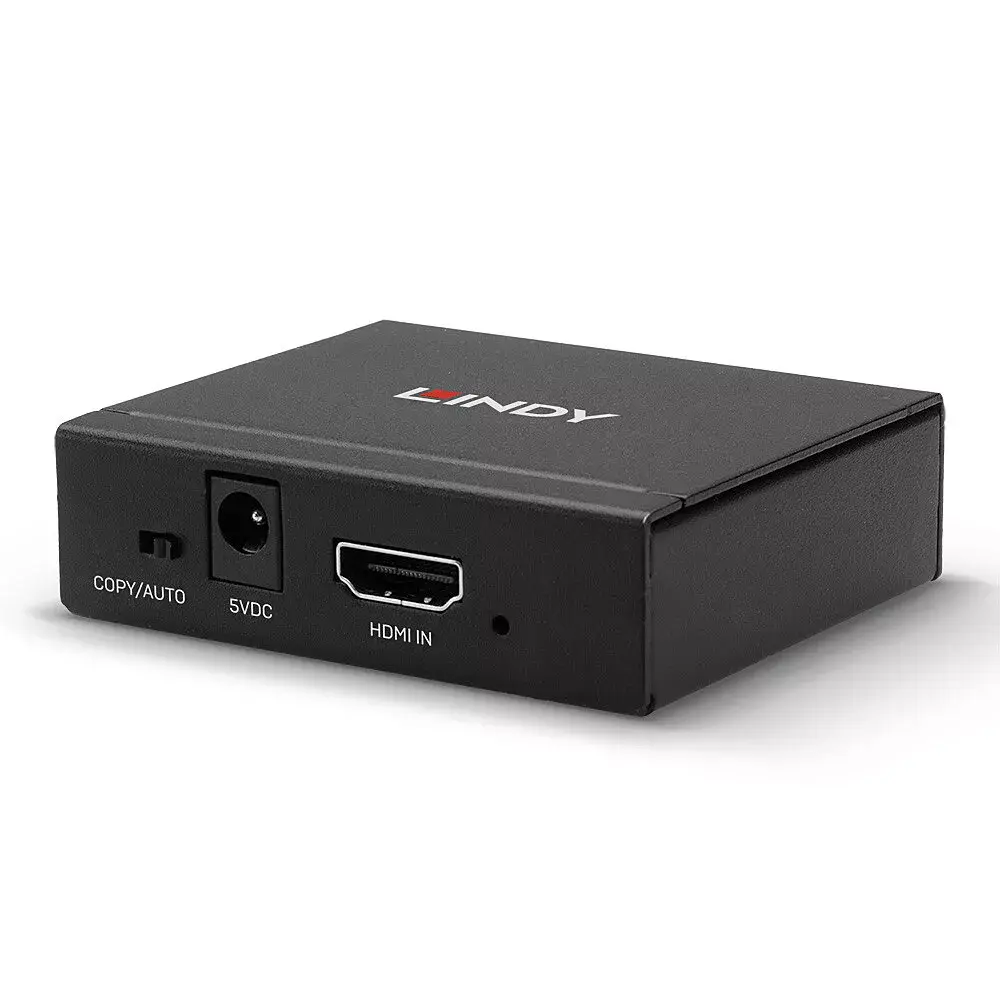

HDMI Splitter Lindy 4K 2 Port 3D 2160p30

The Lindy 2 Port HDMI 10.2G splitter distributes a single HDMI source to two 4K displays, supporting resolutions up to 3840×2160 at 60Hz (4:2:0). Designed for compact installations where multi-screen playback is required, it is suitable for retail displays, sports bars and conference rooms. The unit includes EDID management to improve compatibility with various source devices such as media players, set-top boxes and game consoles and comes with a two year warranty.

Advantages

The splitter provides simultaneous output to two displays from one HDMI source while maintaining 4K resolution at 60Hz (4:2:0). Its EDID management simplifies setup and helps ensure reliable communication between source and displays. The compact, minimalistic housing reduces footprint and visual distraction in installations. The product is cost-effective and backed by a two year warranty.

Key specifications

• Model: Lindy 2 Port HDMI 10.2G splitter
• Outputs: 2 × HDMI
• Maximum resolution: 3840×2160 @ 60Hz (4:2:0)
• EDID management: yes
• Design: compact, minimalistic housing
• Warranty: 2 years

How to use

Connect the HDMI source device to the splitter input, then connect the two HDMI displays to the splitter outputs. Power the splitter if an external power supply is required (check device packaging). Use the EDID management options to select the appropriate EDID mode for optimal compatibility with connected displays and source devices. Verify both displays are set to accept the resolution supported by the source.

Recommendations

For reliable 4K@60Hz (4:2:0) output, use high-quality HDMI cables rated for 10.2 Gbps and ensure connected displays support the target resolution and chroma subsampling. If displays show incompatibility, adjust EDID settings or test with a different source device.
