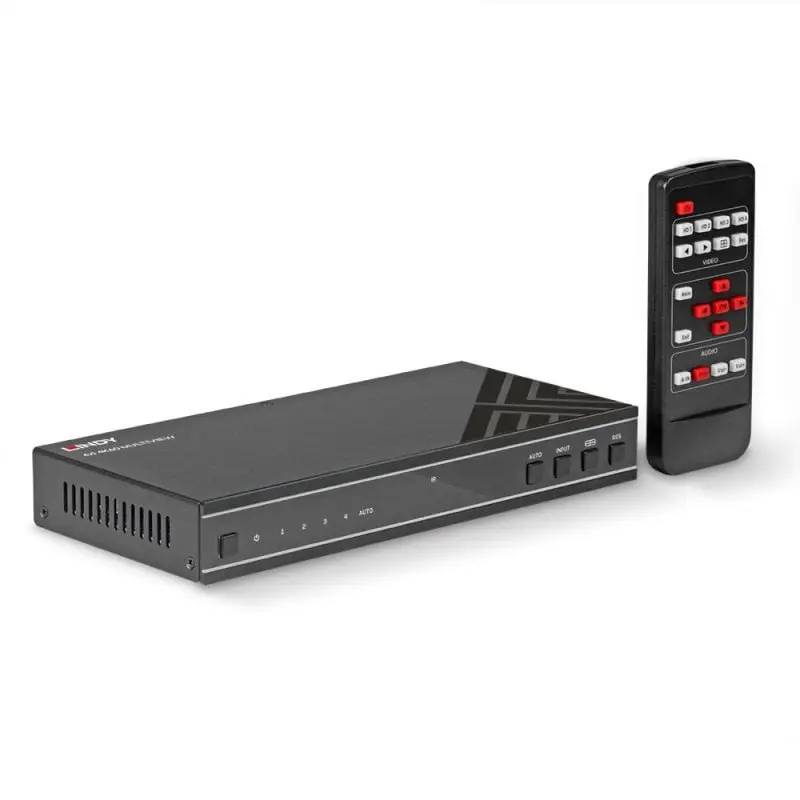

AV receiver Lindy 4x1 4K60 HDMI Seamless Multiview Switch, 3840x2160@60Hz, 12V 2.5A, black

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Rubber feet:

Yes

Technical details

Type: Characteristics of the device.

AV receiver

Warranty period:

2 year(s)

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, RoHS, REACH, Federal Communications Commission (FCC)

Material: The material from which a thing is or can be made e.g. wood, plastic.

Metal

Packaging data

Package height: The distance from the top to the bottom of the packaging.

78 mm

Package width: The distance from one side of the packaging to the other.

280 mm

Package weight: Weight of the packaged product.

1078 g

Package depth: The distance from the front to the back of the packaging.

179 mm

Quantity per pack:

1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.61 kg

Height: The measurement of the product from head to foot or from base to top.

30 mm

Depth: The distance from the front to the back of something.

111 mm

Width: The measurement or extent of something from side to side.

219 mm

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-4 - 140

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

20 - 90

Packaging content

Packaging content:

1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher 1 x IR Remote Control 1 x 3pin-3.81mm Phoenix connector (male) 1 x 38KHz IR Wideband Receiver cable (1.5 Meters) 2 x Mounting Ears 4 x Machine Screws (KM3*4) 4 x Rubber Feet 1 x 12v/2.5A Locking Power Adapter 1 x User Manual

Cables included:

HDMI

Manual:

Yes

Video

Bandwidth:

18 Gbit/s

Ports & interfaces

RS-232 input ports:

1

Audio RCA outputs:

1

Audio (L/R) out: The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).

1

Number of HDMI outputs: Port (socket) for HDMI output.

1

HDMI in: Port (socket) for HDMI input.

4

Power

Input current:

2.5

Operating voltage: Defines the range of operating voltages available

12 V

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

3840 x 2160

Maximum refresh rate:

60 Hz

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

HDCP version:

2.2
