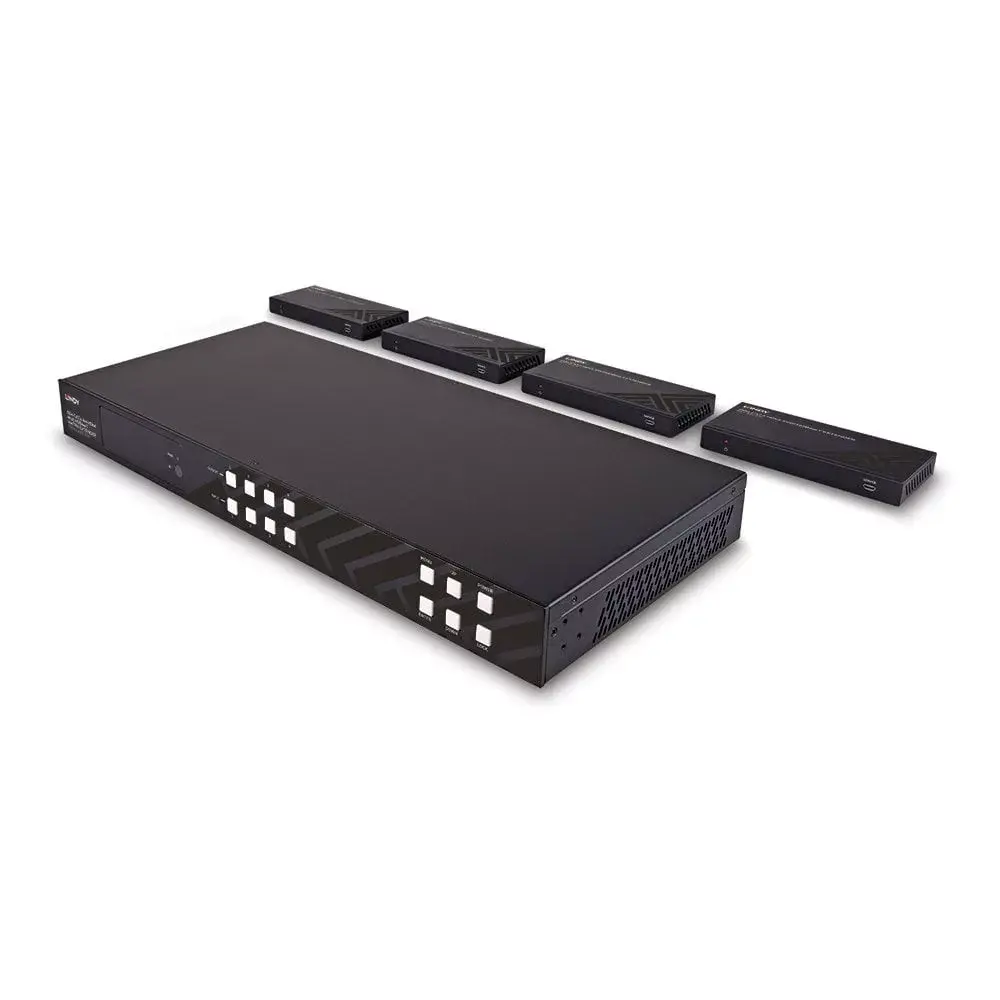

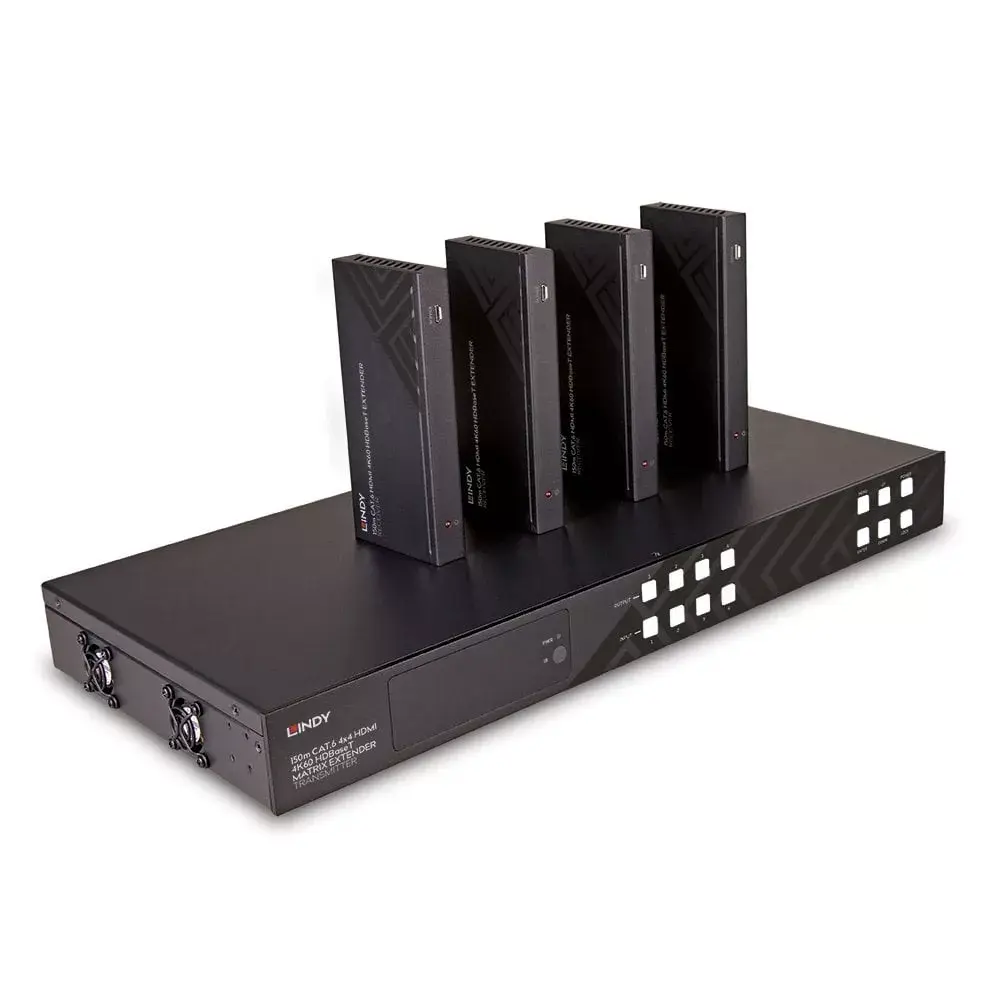

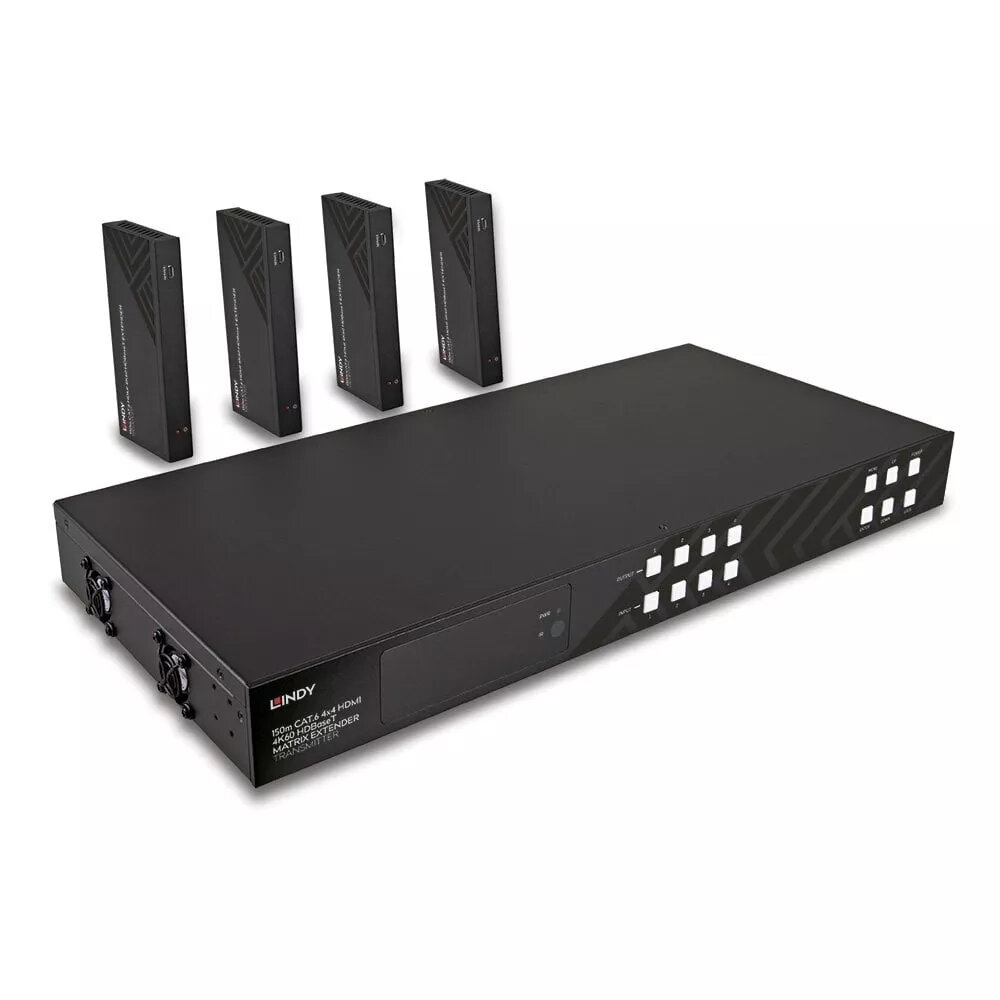

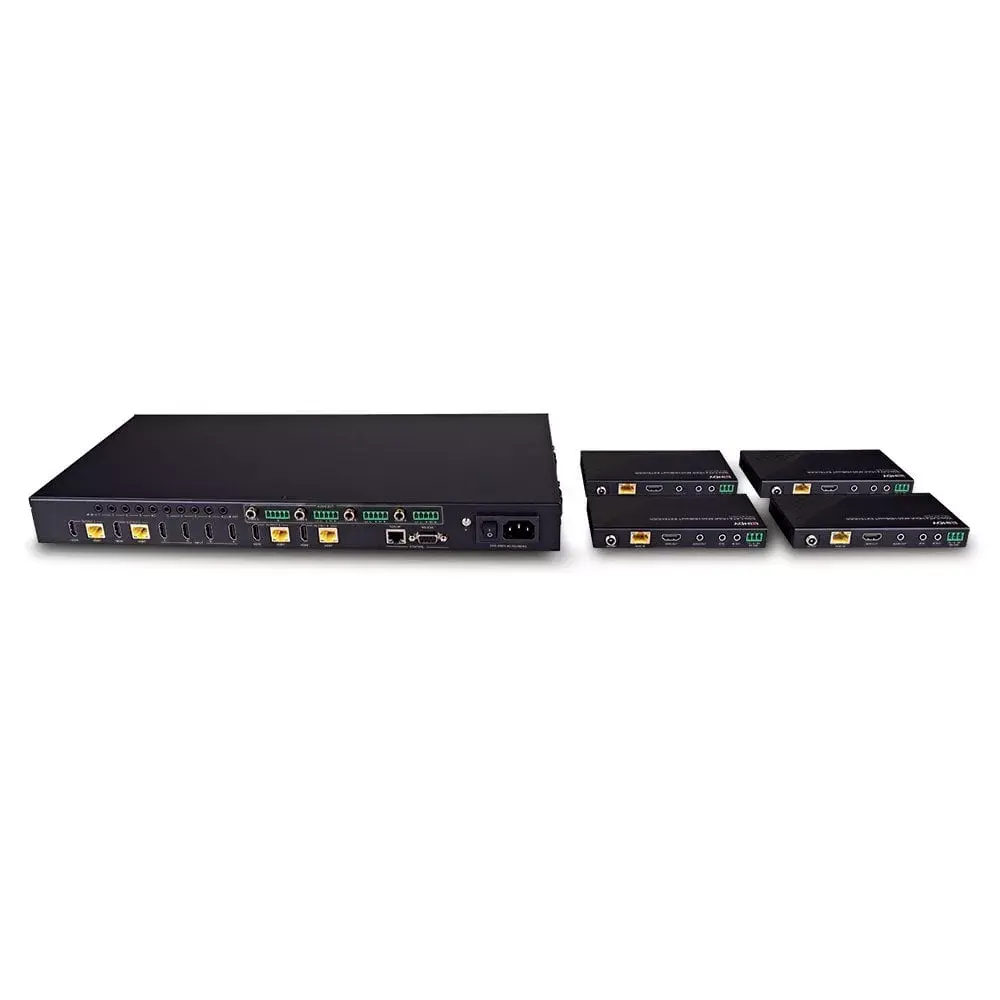

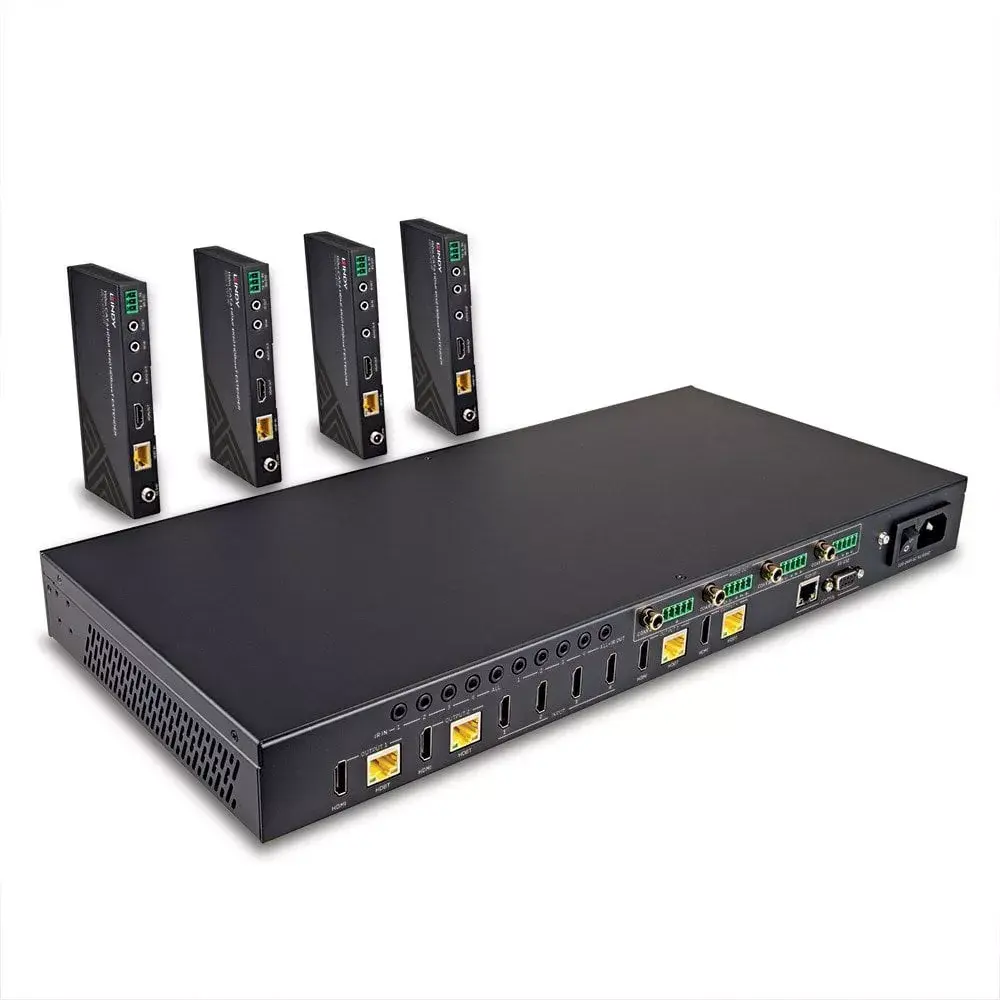

AV transmitter & receiver Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Power source type: What the power source is.

AC

Infrared (IR) frequency range:

20 - 60

HDCP pass-through:

Yes

EDID management:

Yes

Packaging data

Package height: The distance from the top to the bottom of the packaging.

98 mm

Package width: The distance from one side of the packaging to the other.

510 mm

Package weight: Weight of the packaged product.

6330 g

Package depth: The distance from the front to the back of the packaging.

401 mm

Package type: The type of product package e.g. box.

Box

Weight & dimensions

Receiver dimensions (WxDxH):

140 x 65 x 18

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

5.31 kg

Height: The measurement of the product from head to foot or from base to top.

45 mm

Depth: The distance from the front to the back of something.

200 mm

Width: The measurement or extent of something from side to side.

440 mm

Technical details

Sustainability compliance:

Yes

On/off switch: The button which is pressed to switch the device on or off.

Yes

Maximum transfer distance: The greatest distance over which the data/signal can be transferred.

150 m

Type: Characteristics of the device.

AV transmitter & receiver

Power requirements:

60 W

Warranty period:

2 year(s)

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

UKCA, RoHS, REACH, Federal Communications Commission (FCC), CE

Material: The material from which a thing is or can be made e.g. wood, plastic.

Metal

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Packaging content

Packaging content:

4x4 HDBaseT Extender Matrix - Transmitter 4 x HDBaseT Receivers 5 x IR Emitter Cable, 1.5m 5 x IR Receiver Cable, 1.5m 10 x Mounting Ears & Screws 4 x 3-Pin Terminal Block 4 x 5-Pin Terminal Block RS-232 Male to Female cable, 1.5m 4 x mains cables (EU, UK, US & AUS), 1.5m Lindy Manual

Manual:

Yes

Audio

Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.

90 dB

Video

Bandwidth:

18 Gbit/s

Certificates

Certification:

California Proposition 65

Ports & interfaces

RS-232 input ports:

2

Audio RCA outputs:

4

HDBaseT port:

Yes

3.5 mm (1/8-inch) out:

Yes

3.5 mm (1/8-inch) in:

Yes

RJ-45 output ports:

4

Digital audio coaxial out: The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector.

4

Audio (L/R) out: The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).

4

Number of HDMI outputs: Port (socket) for HDMI output.

5

HDMI in: Port (socket) for HDMI input.

4

HDMI version:

2.0

Power

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Network

Cable types supported:

Cat6

Features

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

LPCM

Supported video modes: The video modes that can be displayed by the device.

1080p

High Dynamic Range (HDR) supported:

Yes

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

HDCP version:

2.2
