header-product Lindy HDMI ARC Audio Extractor 38363 with HDMI 1.4, SPHE8107S chipset, 192 kHz supported sample rates, and USB power
49.49 €

Lindy HDMI ARC Audio Extractor 38363 with HDMI 1.4, SPHE8107S chipset, 192 kHz supported sample rates, and USB power

Lindy HDMI ARC Audio Extractor 38363 Photo 1

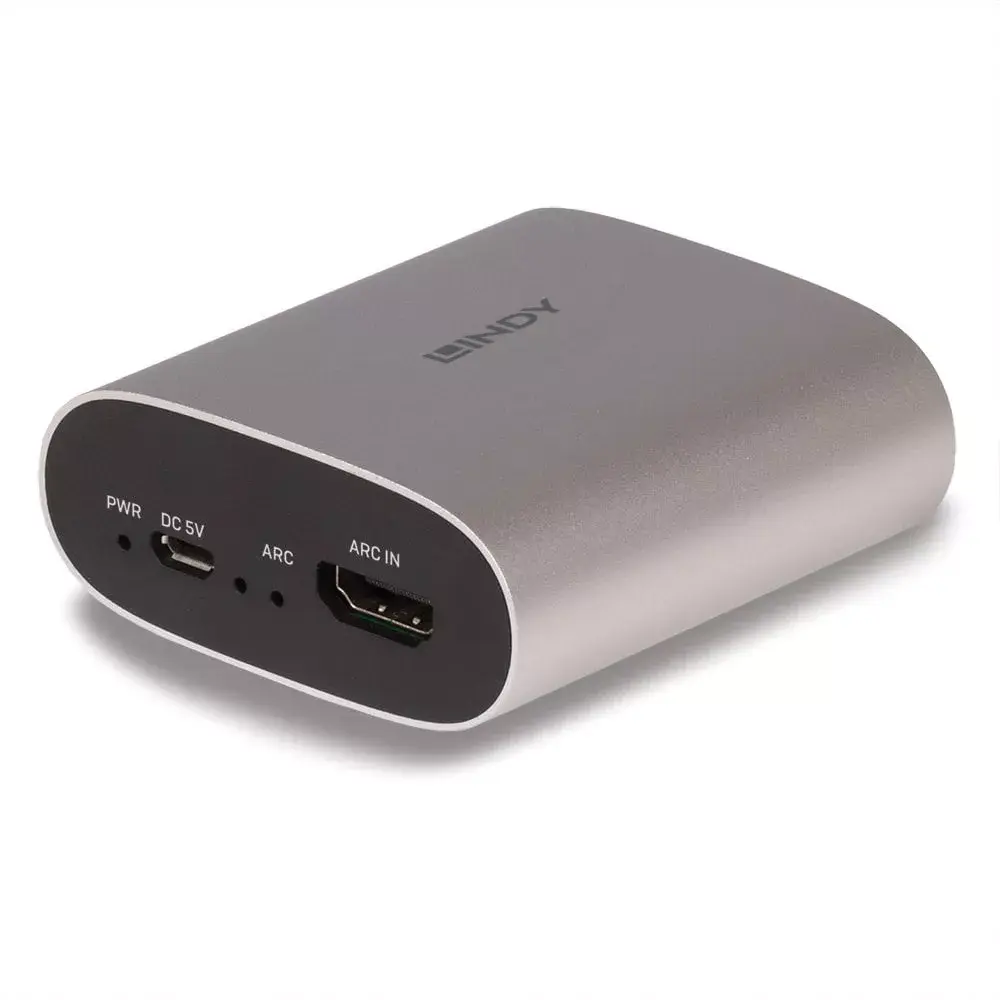

Lindy HDMI ARC Audio Extractor 38363 Photo 2

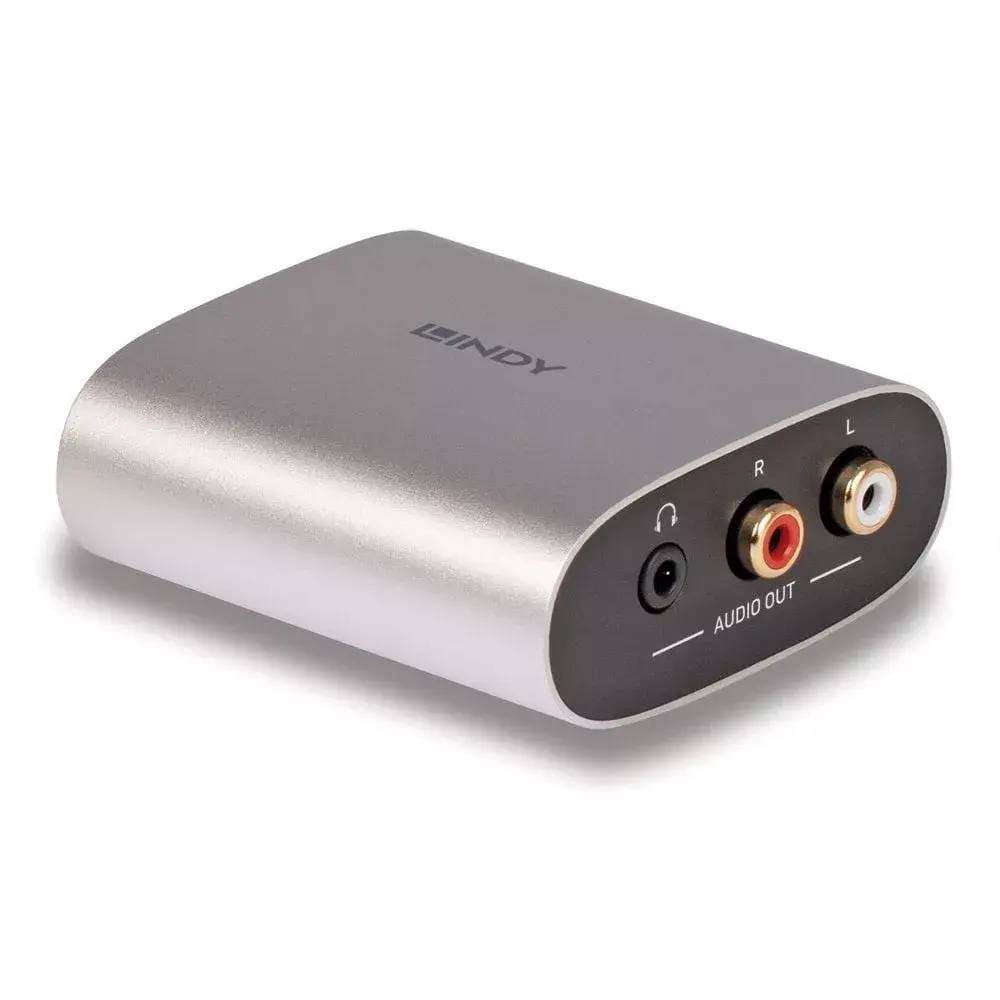

Lindy HDMI ARC Audio Extractor 38363 Photo 3

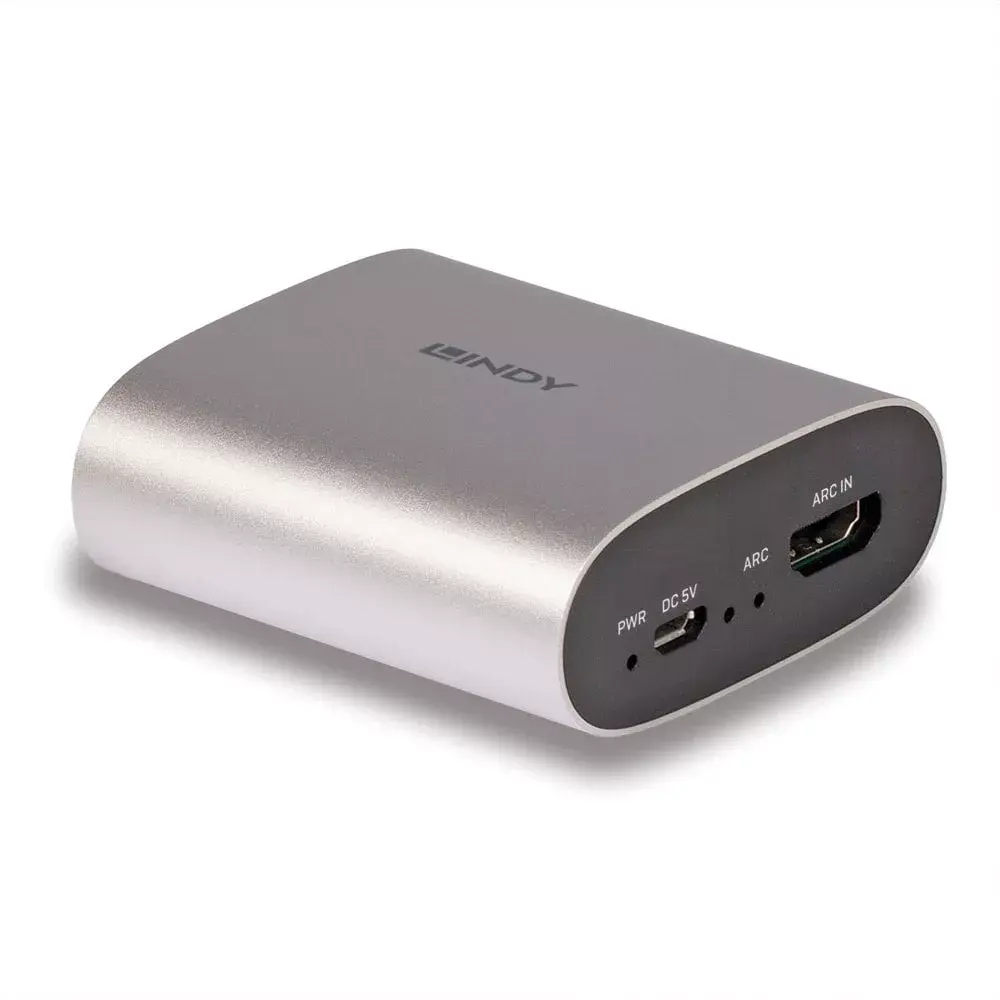

Lindy HDMI ARC Audio Extractor 38363 Photo 4

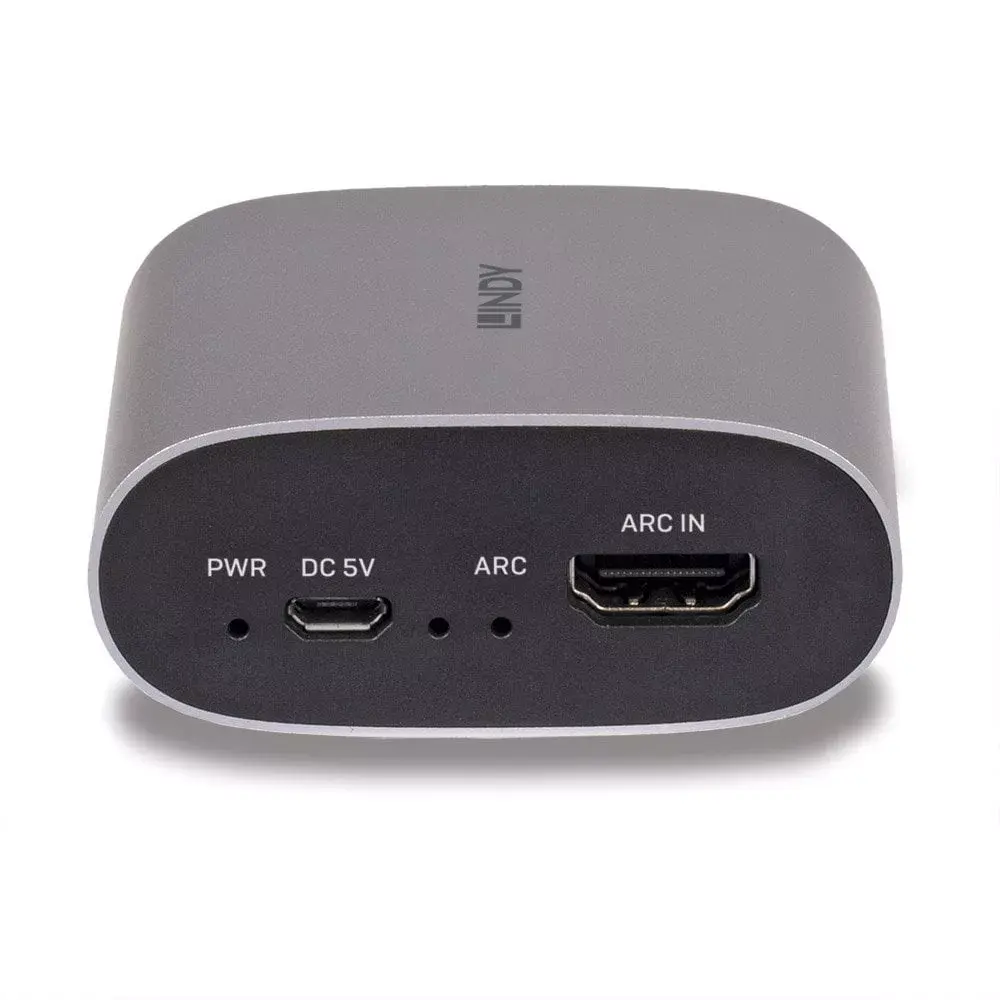

Lindy HDMI ARC Audio Extractor 38363 Photo 5

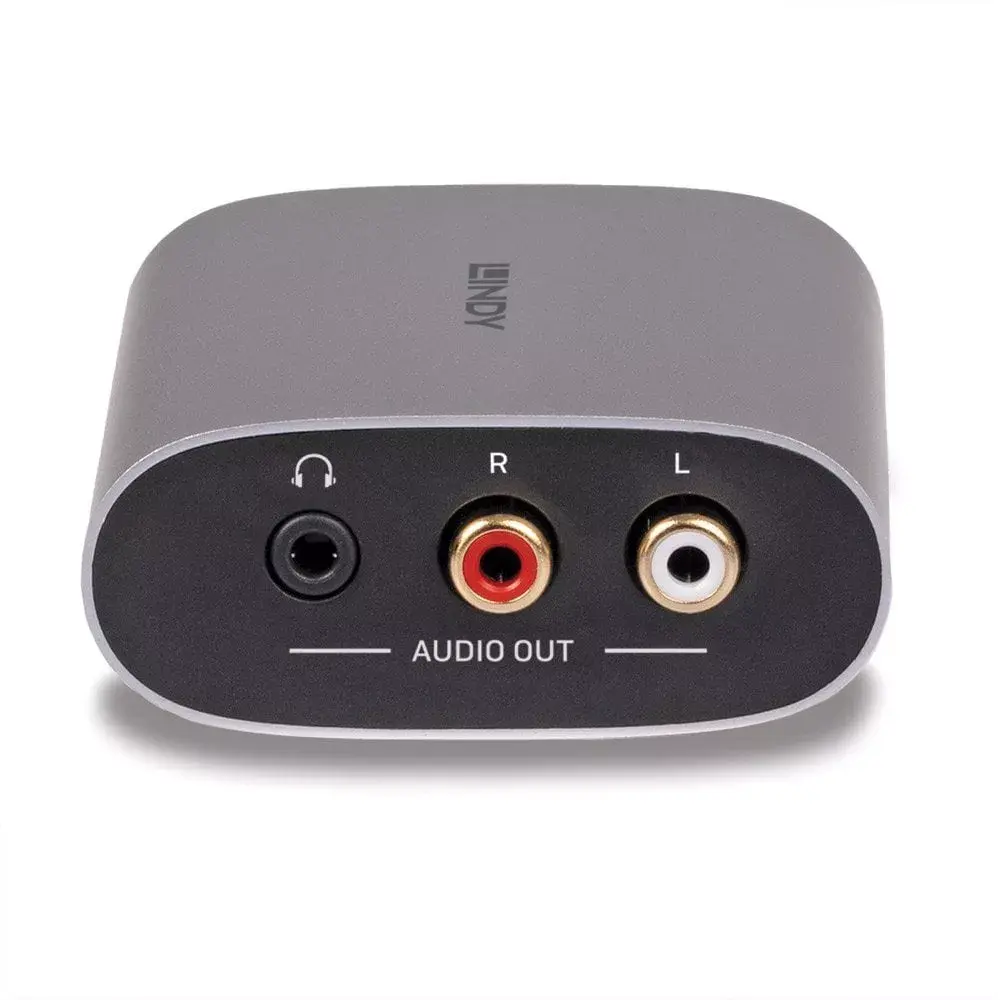

Lindy HDMI ARC Audio Extractor 38363 Photo 6
Lindy HDMI ARC Audio Extractor 38363 Photo 7
Lindy HDMI ARC Audio Extractor 38363 Photo 1
Lindy HDMI ARC Audio Extractor 38363 Photo 2
Lindy HDMI ARC Audio Extractor 38363 Photo 3
Lindy HDMI ARC Audio Extractor 38363 Photo 4
Lindy HDMI ARC Audio Extractor 38363 Photo 5
Lindy HDMI ARC Audio Extractor 38363 Photo 6
Lindy HDMI ARC Audio Extractor 38363 Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Lindy HDMI ARC Audio Extractor 38363 with HDMI 1.4, SPHE8107S chipset, 192 kHz supported sample rates, and USB power

{{email}}
You keep track of price changes

Lindy HDMI ARC Audio Extractor 38363 with HDMI 1.4, SPHE8107S chipset, 192 kHz supported sample rates, and USB power

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Lindy HDMI ARC Audio Extractor designed to extract audio signals from HDMI sources. Features HDMI 1.4 support, CEC pass-through, a 192 kHz supported sample rate, 101 dB SNR, and a frequency range of 20 to 20000 Hz. Equipped with an SPHE8107S chipset, plastic silver housing, Audio L/R output, headphone output, and Micro-USB power input operating at 5V and 500 mA. Ideal for routing audio from displays with ARC to external sound systems and amplifiers.
Available at price 49.49 €: 1 pcs.
Total available for order: 176 pcs.
Warranty: 2 Years
SKU: 10636633
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
18.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
23.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.17 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
23.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 53.99 €: 9 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Lindy HDMI ARC Audio Extractor is a dedicated device designed to extract audio signals from HDMI sources and route them to external audio systems. It is particularly useful for routing audio from modern displays equipped with an Audio Return Channel to external sound systems, amplifiers, or headphones. Built around the SPHE8107S chipset and featuring HDMI 1.4 support, this extractor ensures reliable signal handling, CEC pass-through, and high-fidelity sound reproduction with a signal-to-noise ratio of 101 dB and support for sample rates up to 192 kHz.

Advantages

This audio extractor provides a straightforward solution for bridging modern HDMI displays with traditional analog audio equipment. By supporting sample rates up to 192 kHz and a wide frequency range from 20 to 20000 Hz, it maintains audio clarity and depth. The inclusion of both an Audio L/R output and a dedicated headphone output offers flexible connection options for various listening setups. Furthermore, CEC pass-through functionality ensures that device control signals pass seamlessly through the unit, while the compact and lightweight plastic silver housing allows for discreet placement in any entertainment center.

Suitable for

  • Extracting audio from an ARC-enabled HDTV to an external stereo amplifier or receiver
  • Connecting wired headphones directly to an HDMI source or display setup
  • Routing sound from smart TV streaming apps to legacy analog sound systems

When it may not be suitable

This device may not be suitable for setups that require multi-channel digital audio output, as it is primarily designed to extract and convert signals into analog stereo format. It is also not intended for handling advanced HDMI 2.1 features such as 4K video pass-through at high refresh rates or eARC functionality.

Key specifications

  • HDMI version 1.4 with CEC pass-through support
  • Supported sample rates up to 192 kHz
  • Signal-to-Noise Ratio of 101 dB
  • Frequency range from 20 to 20000 Hz
  • Audio L/R output and headphone output
  • Micro-USB power input operating at 5V and 500 mA
  • Dimensions: 70 mm x 65 mm x 27 mm
  • Weight: 81 g

How to use

To set up the device, connect your HDMI source or ARC-enabled display to the extractor using a compatible HDMI cable. Connect your analog sound system, amplifier, or headphones to the Audio L/R output or the headphone jack on the extractor. Finally, power the unit by connecting the included USB Type-A to Micro-USB cable to a suitable 5V USB power source or port. Once connected, the device will automatically process and extract the audio signal for your external sound equipment.

What to consider before purchase

  • Verify that your television or display supports Audio Return Channel (ARC) functionality on the designated HDMI port
  • Confirm that your external sound system accepts analog stereo L/R or headphone connections
  • Note that the unit requires a continuous 5V USB power supply to operate

Usage recommendation: Ensure that the audio output format on your connected source device is set to PCM or a compatible stereo format to guarantee proper sound downmixing and playback through the analog outputs.

All features
Supported sample rates:
192
CEC pass-through:
Yes

Logistics data

Products per master (outer) case:
40 pc(s)

Packaging data

Package height: The distance from the top to the bottom of the packaging.
105 mm
Package width: The distance from one side of the packaging to the other.
65 mm
Package weight: Weight of the packaged product.
174 g
Package depth: The distance from the front to the back of the packaging.
146 mm
Package type: The type of product package e.g. box.
Box

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.081 kg
Height: The measurement of the product from head to foot or from base to top.
27 mm
Depth: The distance from the front to the back of something.
65 mm
Width: The measurement or extent of something from side to side.
70 mm

Technical details

Sustainability compliance:
Yes
Warranty period:
2 year(s)
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
REACH, RoHS, Federal Communications Commission (FCC), CE
Quantity: The number of products there are.
1

Operational conditions

Operating relative humidity (H-H):
20 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 40

Audio

Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.
101 dB
Frequency range: The lowest and the hightest frequencies that can be inputted/produced.
20 - 20000

Features

Output impedance:
100
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
SPHE8107S
Product colour: The colour e.g. red, blue, green, black, white.
Silver
Housing material: What the casing of the product is made of.
Plastic

Certificates

Certification:
California Proposition 65

Ports & interfaces

USB connector type: The type of USB connector/port that this product has.
Micro-USB
Headphone out: The socket for connecting headphones to the device.
Yes
Audio (L/R) out: The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).
1
HDMI in: Port (socket) for HDMI input.
1
HDMI version:
1.4

Packaging content

Cables included:
USB Type-A to Micro-USB Type-B
Manual:
Yes

Power

Input voltage: The voltage (V) which is required to power the product.
5
Power consumption:
500 mA
