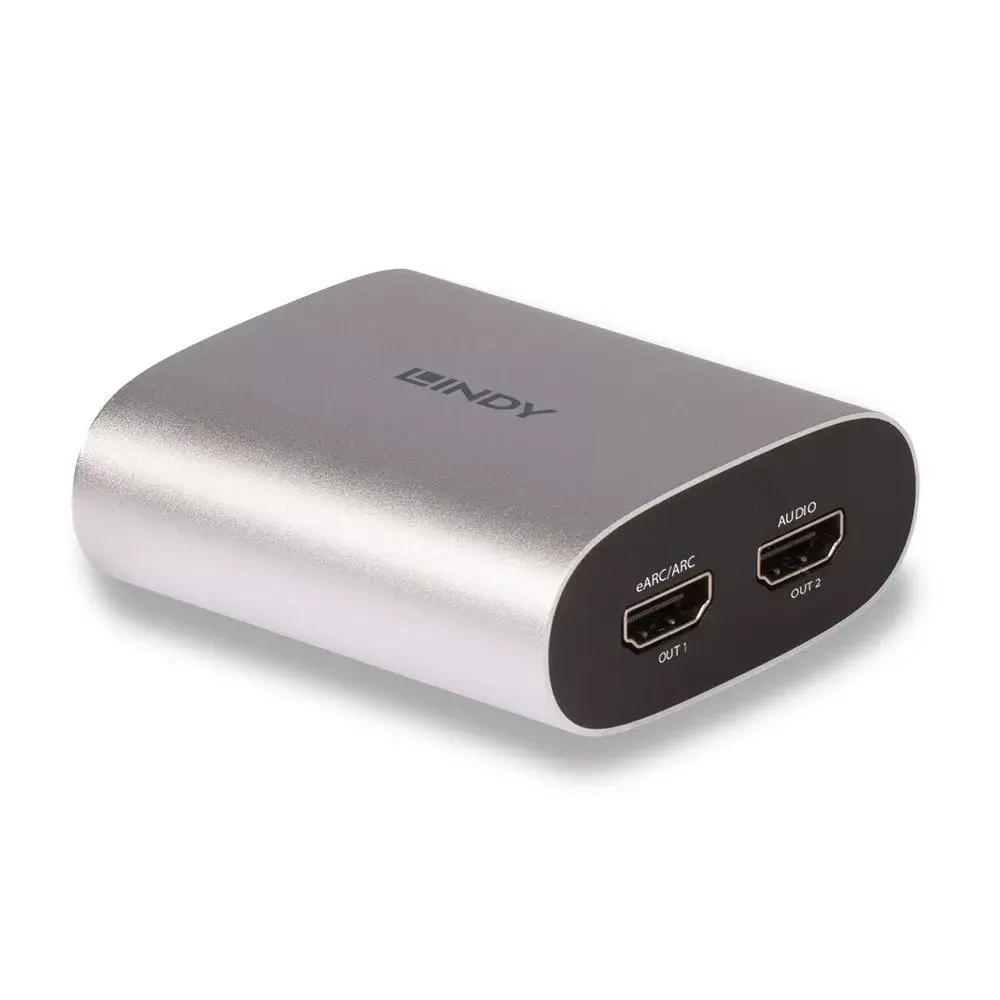

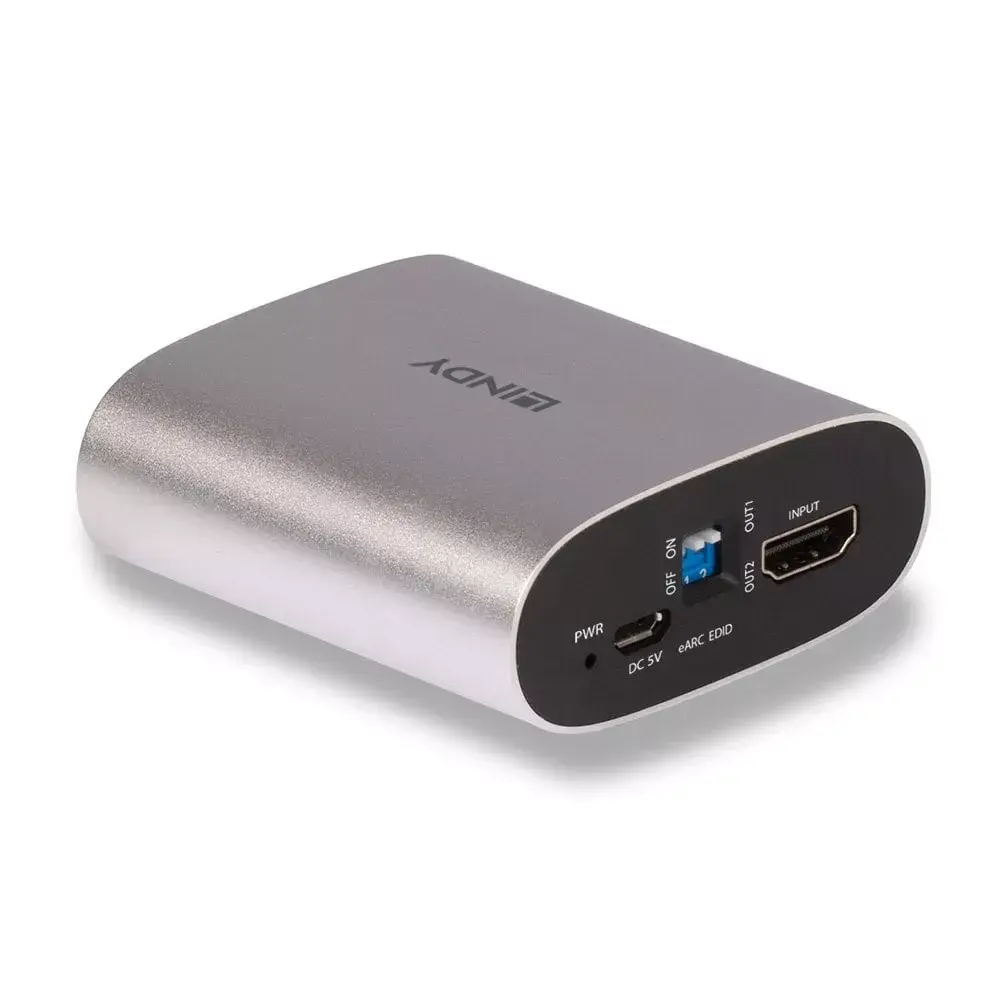

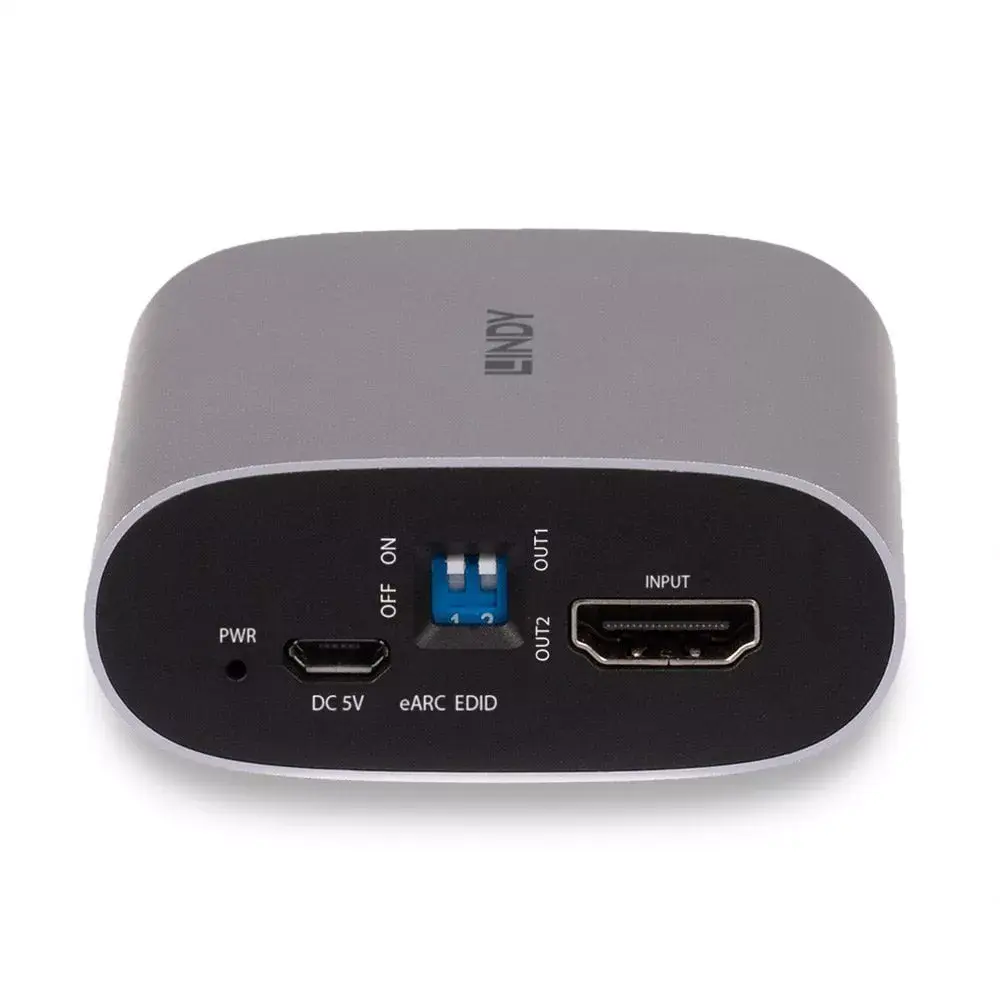

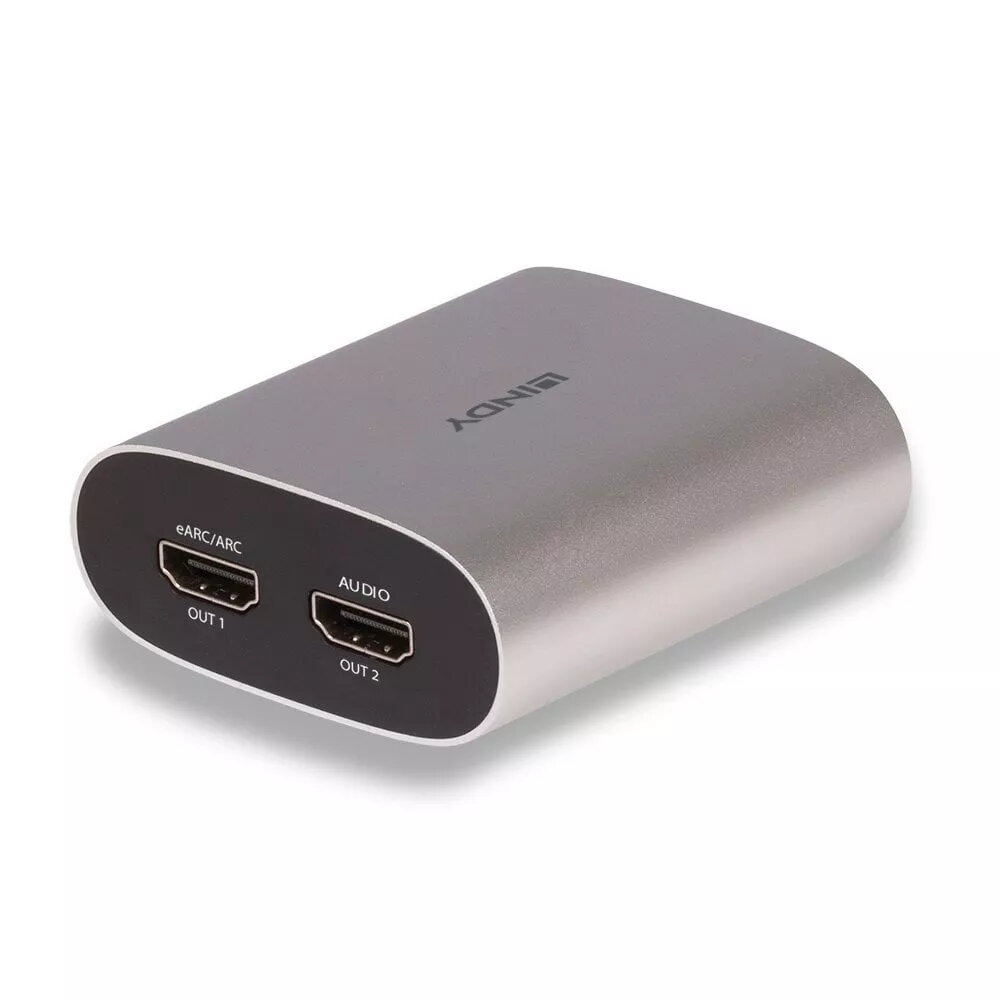

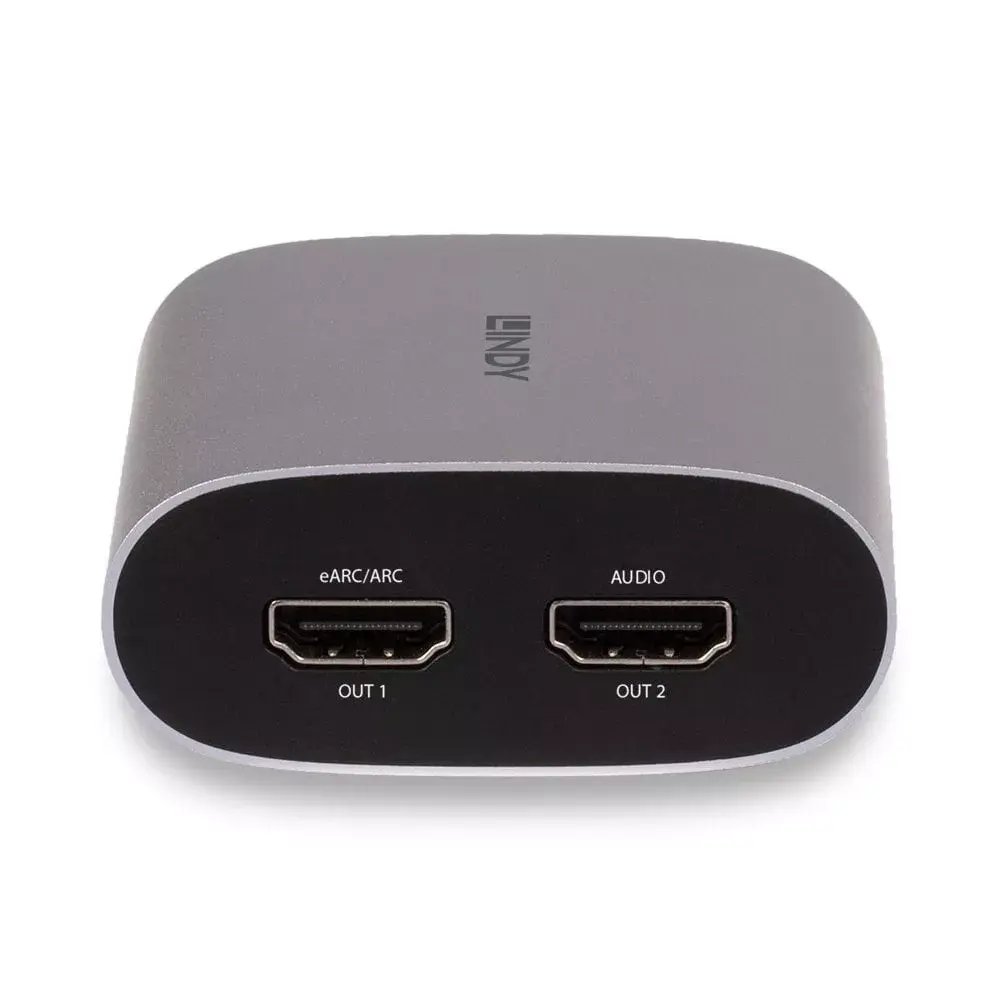

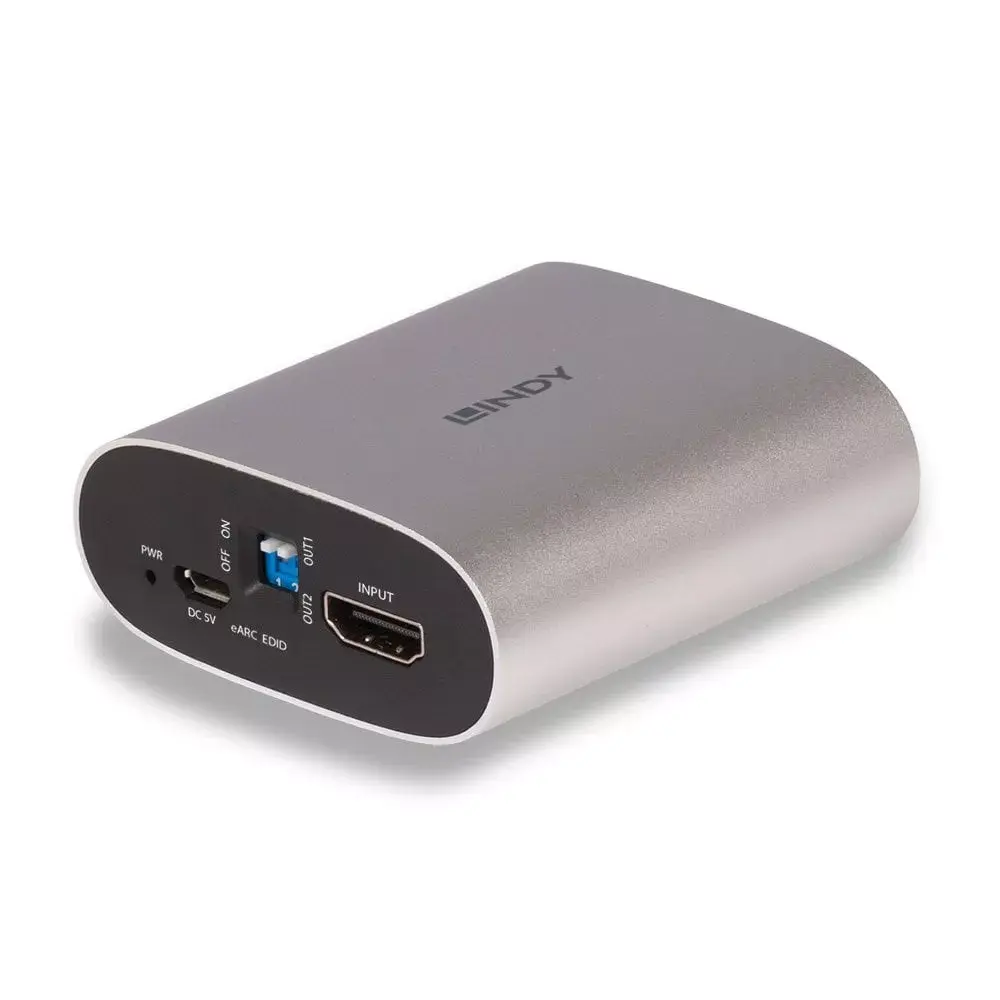

HDMI eARC Extractor Lindy 4K60

USB 1.1 ports quantity: Number of USB 1.1 ports (connecting interfaces) in the device. USB 1.1 was released in August 1998, fixing problems identified in 1.0, mostly related to using hubs. USB 1.1 was the earliest revision that was widely adopted. Usually coloured white.

1

Digital audio optical in: The socket in the device for the digital audio input. The signal is inputted via an optical cable with an TOSLINK connector.

0

Power cable length:

1 m

Bit rate:

24 bit

Audio playback formats:

LPCM, PCM

Supported sample rates:

192

Technical details

Quantity: The number of products there are.

1

Packaging data

Package height: The distance from the top to the bottom of the packaging.

27 mm

Package width: The distance from one side of the packaging to the other.

65 mm

Package weight: Weight of the packaged product.

191.6 g

Package depth: The distance from the front to the back of the packaging.

70 mm

Package type: The type of product package e.g. box.

Box

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.083 kg

Height: The measurement of the product from head to foot or from base to top.

27 mm

Depth: The distance from the front to the back of something.

70 mm

Width: The measurement or extent of something from side to side.

65 mm

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

20 - 90

Packaging content

Cables included:

USB Type-A to micro-USB Type-B

Manual:

Yes

Ports & interfaces

USB connector type: The type of USB connector/port that this product has.

Micro-USB B

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Digital audio coaxial in: The socket in the device for the digital audio input. The signal is broight into the device via a coaxial cable with an RCA connector.

0

Audio (L/R) out: The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).

0

Number of HDMI outputs: Port (socket) for HDMI output.

2

HDMI in: Port (socket) for HDMI input.

1

HDMI version:

2.0b

Features

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

4096 x 2160

Audio codecs:

PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Sil9437CNUC

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black, Silver

HDCP version:

2.2

Housing material: What the casing of the product is made of.

Aluminium
