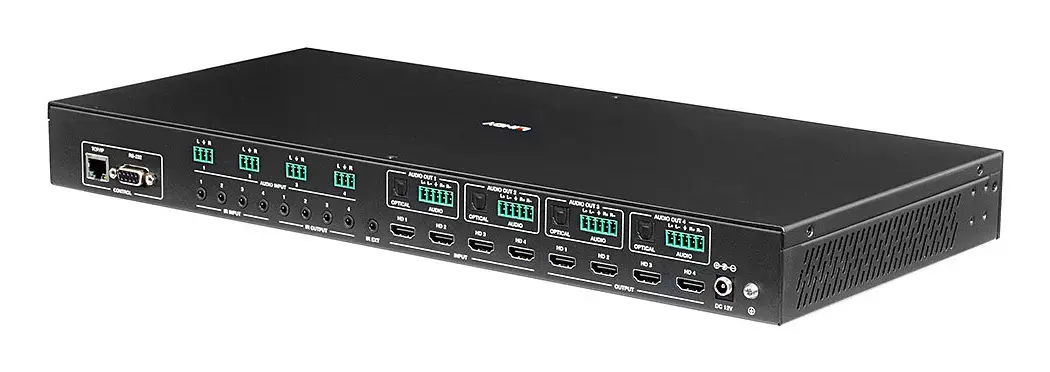

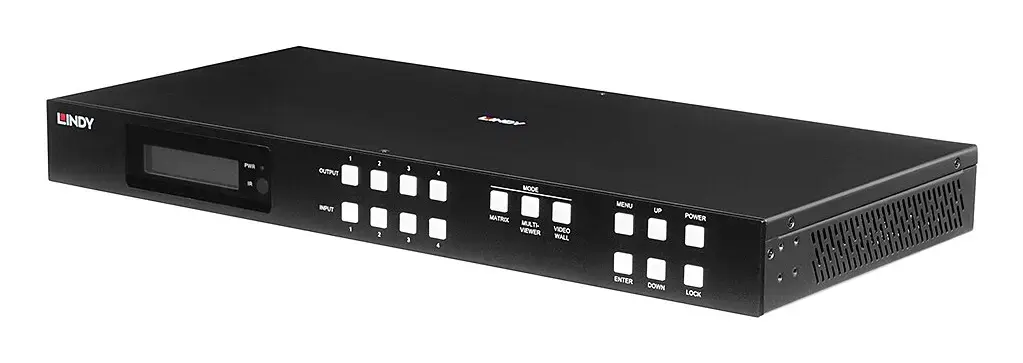

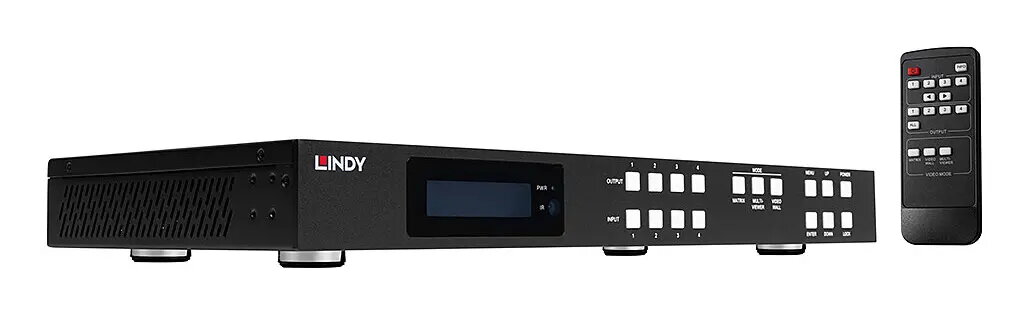

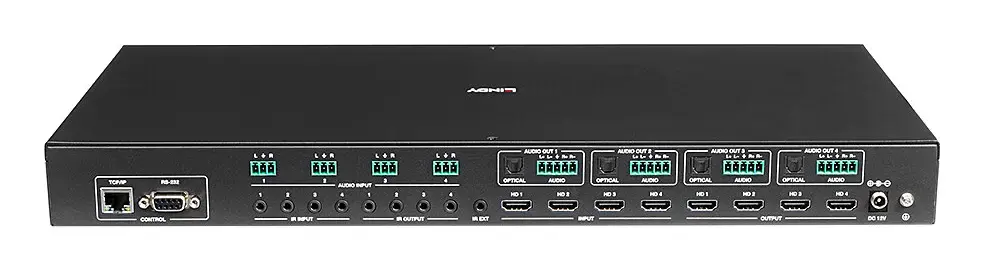

AV matrix switcher Lindy 4x4 HDMI 4K60 3840x2160 18 Gbit/s

Housing colour: The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment.

Black

HDMI input ports quantity:

4

HDMI output ports quantity:

4

EDID management:

Yes

Technical details

Sustainability compliance:

Yes

Control type: The way in which the device is controlled.

Buttons

Product type: The sub-category of the product.

AV matrix switcher

Warranty period:

2 year(s)

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

UKCA, RoHS, REACH, Federal Communications Commission (FCC), CE

Packaging data

Package height: The distance from the top to the bottom of the packaging.

119 mm

Package width: The distance from one side of the packaging to the other.

524 mm

Package weight: Weight of the packaged product.

4060 g

Package depth: The distance from the front to the back of the packaging.

316 mm

Package type: The type of product package e.g. box.

Box

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.55 kg

Height: The measurement of the product from head to foot or from base to top.

44.5 mm

Depth: The distance from the front to the back of something.

203 mm

Width: The measurement or extent of something from side to side.

440 mm

Display

Display type: Type of display (screen) e.g. LCD.

OLED

Built-in display: A display which is part of the product, so you do not need to attach another display.

Yes

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Packaging content

Manual:

Yes

Video

Bandwidth:

18 Gbit/s

Certificates

Certification:

CP65

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

1

RJ-45 input ports:

1

Audio (L/R) out: The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).

8

HDMI version:

2.0b

Power

Input current:

2.5

Power consumption (max): The maximum amount of power used by the device.

43 W

Output voltage:

12

Features

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

LPCM, DTS

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

HDCP version:

2.2

Housing material: What the casing of the product is made of.

Metal
