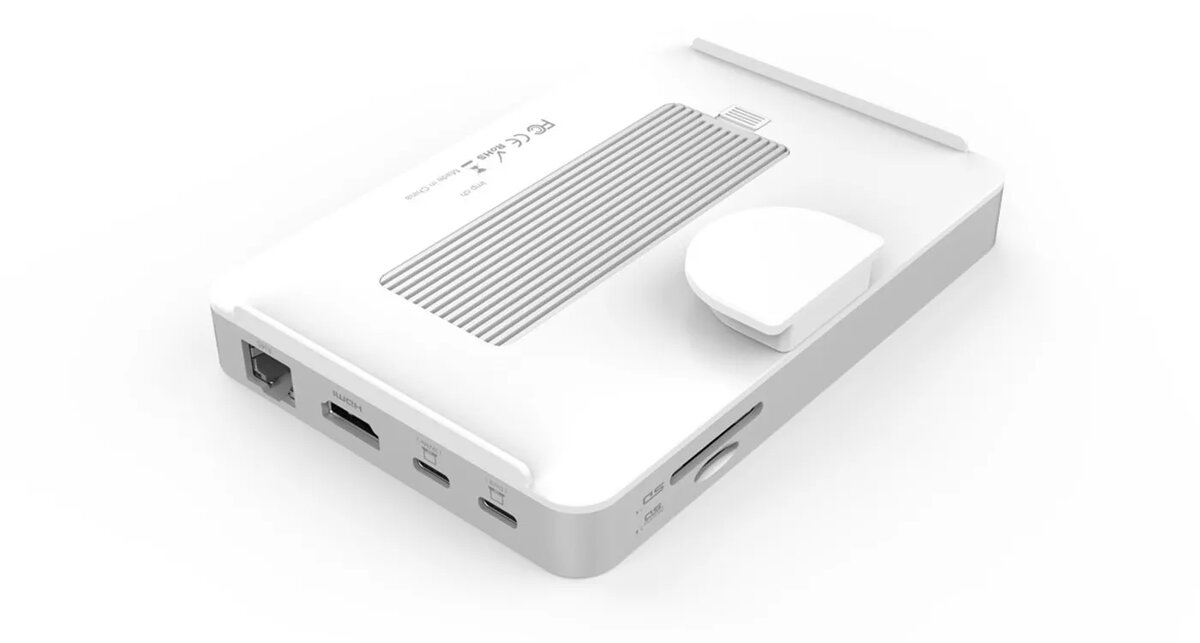

Storage drive docking station LMP 23790 — USB 3.2 Gen 2 Type-C, M.2 and SD/MicroSD support, Aluminium, White/Silver

LMP 23790 is a storage drive docking station with USB 3.2 Gen 2 Type-C host interface supporting data rates up to 10 Gbit/s. Housed in an aluminium white-and-silver enclosure, the unit accepts a single M.2 PCIe NVMe SSD and standard memory cards (SD, SDHC, SDXC and MicroSD). The DuoDock design combines a compact dock with storage functionality and can be mounted to the base of an iMac 24" M1 (2021) using a magnetic clip or used as a stand‑alone dock on any Mac or compatible host. The docking station is powered by an external 100 W supply and provides multiple ports for peripherals alongside the high-speed M.2 slot.

Advantages

The docking station offers a balanced combination of connectivity and storage: a dedicated M.2 PCIe NVMe slot for fast internal‑type SSD performance, card readers for media access and multiple USB, HDMI and Ethernet ports for peripherals. Dual USB-C connections separate dock power/host functions from NVMe data throughput to maintain optimal transfer speeds. The aluminium housing provides a durable, heat-dissipating enclosure while the compact footprint supports desktop mounting or magnetic attachment to a compatible iMac base.

Suitable for

• Fast data transfer, backup and cloning of NVMe M.2 drives
• Photographers and videographers working with SD and MicroSD media
• Expanding port availability for compact Macs and laptops (USB-A, USB-C, HDMI, Gigabit Ethernet)
• Users who need a desktop dock that can be mounted to an iMac 24" M1

Key specifications

• Host interface: USB 3.2 Gen 2 (Type-C), up to 10 Gbit/s
• M.2 slot type: PCIe NVMe (supports 2230, 2242, 2260, 2280 sizes)
• Memory card support: SD, SDHC, SDXC, MicroSD/TransFlash
• Ports: 3× USB-A, 1× USB-C (host), 1× HDMI 2.0, 1× Gigabit Ethernet
• Power delivery: USB-C Power Delivery 3.0 support for host charging (up to 100 W via supplied adapter)
• Material and finish: aluminium housing in white and silver

How to use

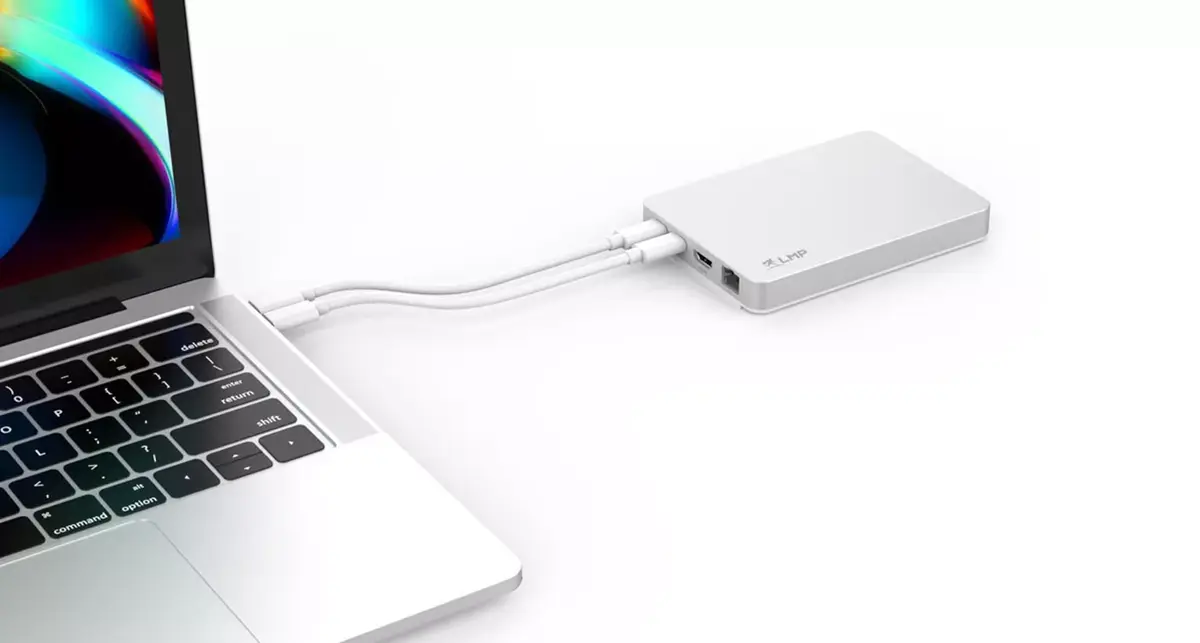

Install a compatible M.2 PCIe NVMe SSD into the M.2 slot following standard anti‑static precautions and secure it to the appropriate length (2230/2242/2260/2280). Connect the dock to your host with the supplied USB-C cables — one cable provides dock functionality and the second ensures dedicated NVMe data throughput. Insert SD or MicroSD cards into the respective readers when needed. Connect peripherals such as USB devices, HDMI displays and Ethernet via the available ports. Ensure the supplied 100 W power adapter is connected to enable Power Delivery to the host and to supply sufficient power for connected devices and the internal SSD.

Usage recommendations

Use the dock on a stable surface or attach it to a compatible iMac base with the magnetic clip. For sustained high-speed transfers and thermal management, allow airflow around the aluminium housing and avoid placing bulky objects on top. Use certified USB-C cables and a Power Delivery‑capable host port to achieve full charging and transfer performance. Regularly back up important data and follow the SSD manufacturer's guidelines for firmware updates and safe removal.
