Patch panel LogiLink F12LC4B 1U LC Fiber optic Grey Metal Rack mounting

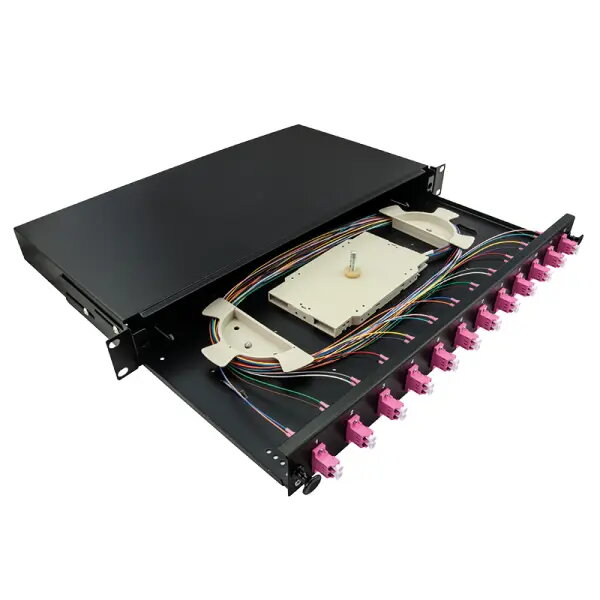

The LogiLink F12LC4B 1U LC Fiber optic patch panel is a pre-assembled rack-mount solution for organizing and protecting LC fiber connections in standard 19-inch server racks. Constructed from metal and sized at 480 mm (W) × 44 mm (H) × 243 mm (D), this grey panel holds twelve LC duplex ports and is supplied with OM4 pigtails, adapters and a splice tray to support high-speed multimode fiber installations in data centers and network cabinets.

Advantages

This fully loaded 12-port LC-Duplex patch panel offers a compact 1U footprint while providing protection and orderly cable management for fiber runs. The metal housing and slide-out tray with a changeable front plate allow safe access during installation and maintenance. Included OM4 pigtails, LC/UPC connectors and fiber adapters reduce assembly time on site, while the integrated splice tray and cable clamps keep splices and bends controlled to maintain signal integrity.

Suitable for

• Data center fiber distribution and cross-connect racks
• Enterprise network cabinets and telecom rooms
• Multimode backbone and horizontal fiber runs using OM4
• Patch and splice points where a compact 1U solution is required

Key specifications

• Form factor: 1U rack-mount metal housing
• Connector type: LC duplex ports, 12-port capacity
• Fiber type supplied: OM4 multimode pigtails with LC/UPC connectors

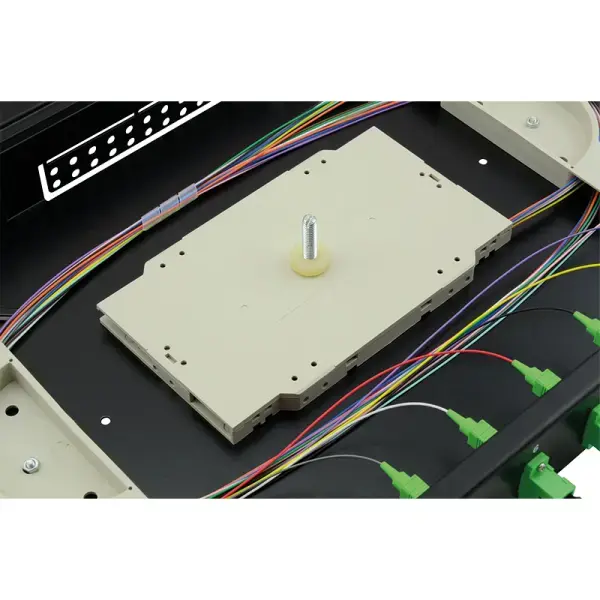

• Tray: Slide-out tray with changeable front plate and integrated splice tray

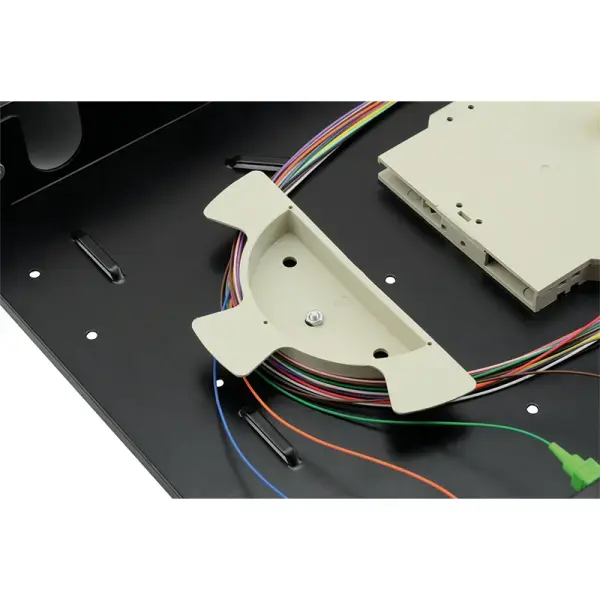

• Cable management: Includes cable clamps and cable ties for strain relief
• Dimensions: 480 mm (width) × 44 mm (height) × 243 mm (depth)
• Colour: Grey / black metal housing

How to use

Mount the panel into a standard 19-inch rack using the supplied M6 screws and nuts. Feed incoming fiber cables through the cable entry points, secure them with the supplied PG13.5 cable clamps and arrange fibers into the splice tray. Terminate fibers to the pre-installed OM4 pigtails with the LC/UPC connectors and plug them into the corresponding LC adapters on the front plate. Use the slide-out tray to access the splice area during installation and replace the front plate if needed for different adapter configurations.

Usage recommendations

For best performance, maintain minimum bend radii for OM4 fibers, keep connectors clean and use the provided cable clamps and ties to avoid strain. Perform testing after installation to verify insertion loss and continuity. If custom labelling or OEM branding is required, order the available customised front plates prior to installation.
