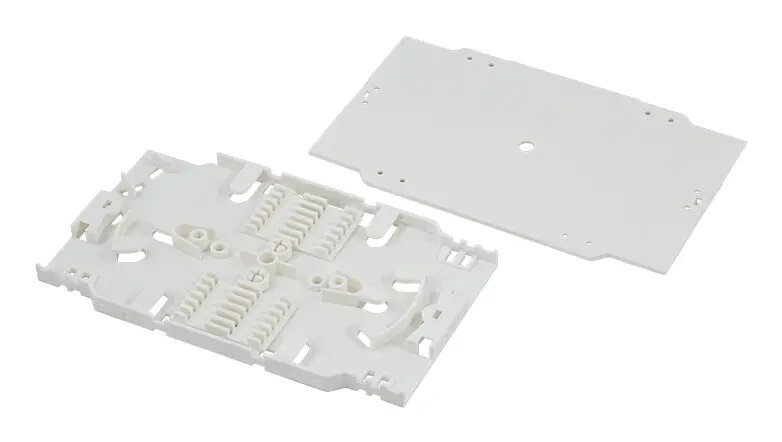

LogiLink Fiber Splice Cassette for 12 Cores, Shrink Tube Type

The LogiLink Fiber Splice Cassette is a professional-grade solution designed for the secure organization and protection of up to 12 fiber optic splices. Constructed from durable white plastic, this cassette provides a reliable environment for managing fiber connections within network infrastructure. It is specifically engineered to accommodate shrink tube splice protectors, ensuring that delicate fiber joints remain stable and protected against mechanical stress or environmental factors. The compact design allows for seamless integration into standard fiber optic distributor housings, making it an essential component for maintaining high-performance telecommunications networks.

Advantages

This splice cassette offers a robust and organized approach to fiber management, significantly reducing the risk of fiber damage during installation or maintenance. By utilizing a dedicated housing for up to 12 cores, it ensures that each splice is held securely in place, which is critical for maintaining signal integrity. The inclusion of a lid and two integrated splice holders with six positions each provides a complete, ready-to-use system that simplifies the assembly process for technicians. Its durable plastic construction ensures long-term reliability, while its compliance with CE and UKCA standards confirms that it meets rigorous quality and safety requirements for professional use.

Suitable for

• Fiber optic network installations
• Telecommunications distribution cabinets
• Data centers and server rooms
• Fiber-to-the-home (FTTH) infrastructure

This cassette may not be suitable for environments requiring high-density splicing beyond 12 cores per unit or for applications that utilize mechanical splice protectors rather than shrink tube types. It is also not intended for outdoor use without an additional protective enclosure.

Key specifications

• Capacity: Up to 12 fiber cores
• Splice type: Shrink tube
• Material: Durable plastic
• Color: White
• Dimensions: 155 mm x 91.8 mm x 10.3 mm
• Compliance: CE, UKCA

How to use

To use the LogiLink Fiber Splice Cassette, first mount the tray into your compatible fiber optic distributor housing. Prepare your fiber optic cables by stripping the outer jacket and cleaning the fibers according to standard procedures. Once the fibers are spliced, slide the shrink tube protector over the splice point and heat it until it is securely shrunk around the fiber. Place the protected splice into one of the designated slots within the splice holder. Repeat this process for all required fibers, ensuring that the excess fiber length is carefully coiled within the tray to prevent bending or kinking. Finally, secure the lid onto the cassette to protect the connections from dust and accidental contact.

What to consider before purchase

• Verify that your existing distributor housing has sufficient space for the 155 mm x 91.8 mm footprint.
• Ensure that your splicing equipment is compatible with shrink tube protectors.
• Confirm the total number of fibers to be managed to ensure the 12-core capacity is sufficient for your project.

Usage recommendations

For optimal performance and longevity of your fiber network, always ensure that the minimum bend radius of the fiber optic cables is maintained when coiling them inside the cassette. Regularly inspect the cassette for any signs of physical damage or dust accumulation to maintain signal quality.
