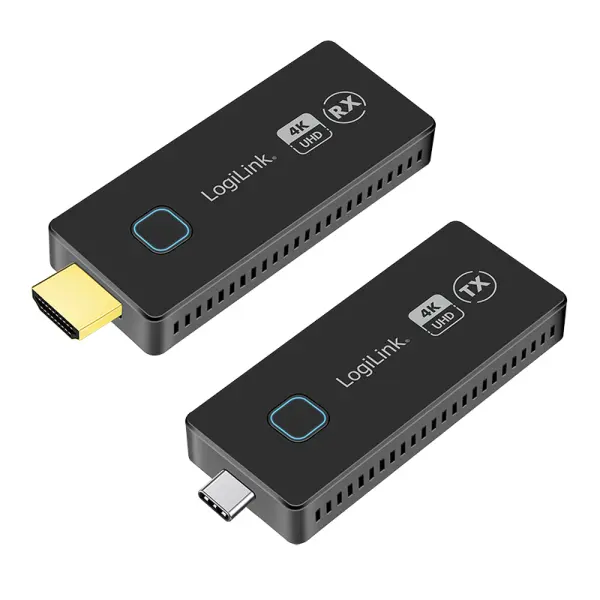

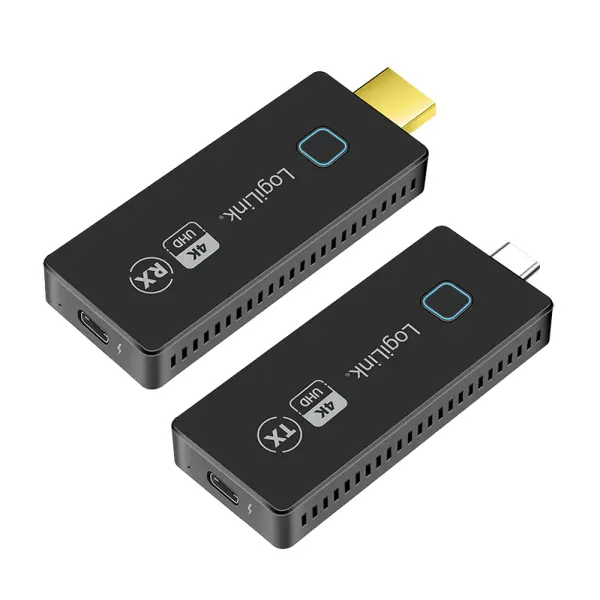

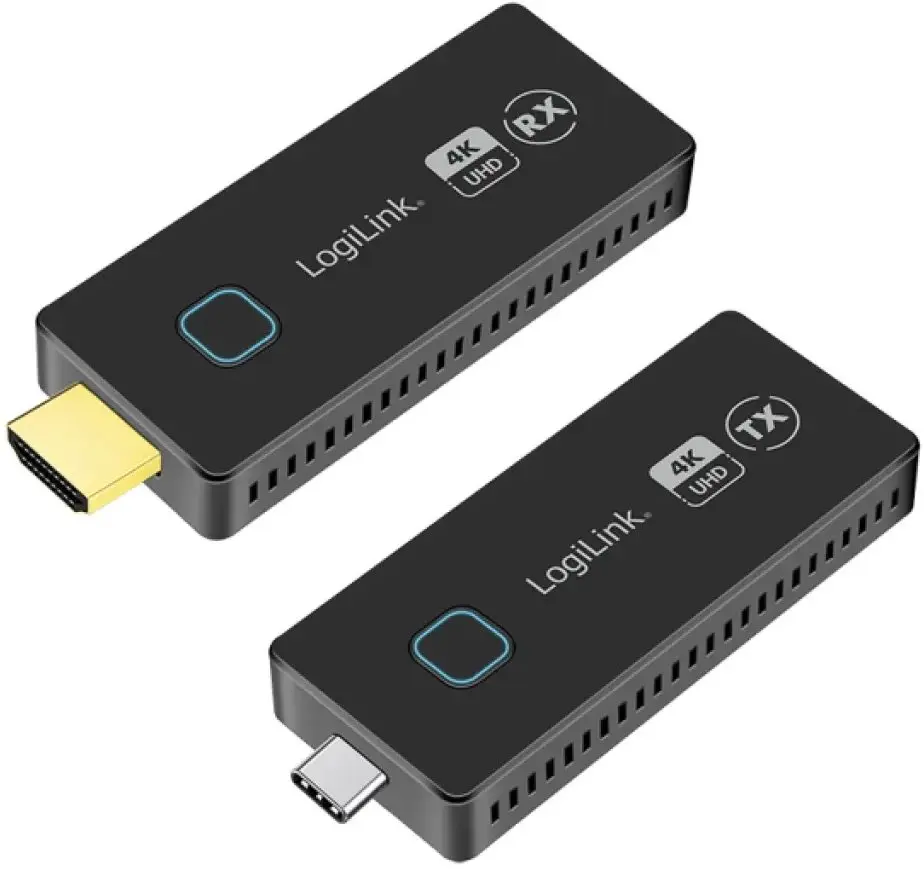

LogiLink HDW0104 AV Transmitter and Receiver with 4K Resolution and 30m Transfer Distance

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

PCM

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless

Power source type: What the power source is.

USB

Packaging data

Package height: The distance from the top to the bottom of the packaging.

48 mm

Package width: The distance from one side of the packaging to the other.

119 mm

Package weight: Weight of the packaged product.

258 g

Package depth: The distance from the front to the back of the packaging.

119 mm

Package type: The type of product package e.g. box.

Box

Quantity per pack:

2 pc(s)

Weight & dimensions

Receiver dimensions (WxDxH):

91 x 34 x 12.8

Receiver weight:

25.5 g

Transmitter dimensions (WxDxH):

87.5 x 34 x 12.8

Transmitter weight:

37.5 g

Display

Built-in display: A display which is part of the product, so you do not need to attach another display.

No

Technical details

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

128-bit AES, WPA2

RF power:

22.02 mW

Maximum transfer distance: The greatest distance over which the data/signal can be transferred.

30 m

Type: Characteristics of the device.

AV transmitter & receiver

Operational conditions

Operating relative humidity (H-H):

10 - 80

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Features

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Y

Windows operating systems supported: Windows vesions wich can be used with the device.

Y

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

LED indicators:

Y

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

External power adapter:

Yes

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

HDCP version:

1.4/2.2

Ports & interfaces

USB connector type: The type of USB connector/port that this product has.

USB Type-C

Number of HDMI outputs: Port (socket) for HDMI output.

1

HDMI in: Port (socket) for HDMI input.

1

HDMI version:

1.4/2.0

Packaging content

Cables included:

USB

Manual:

Yes

Power

Input current:

1

Operating voltage: Defines the range of operating voltages available

5 V
