Rack shelf LOGILINK SF0800B — steel 1U adjustable rack shelf, black

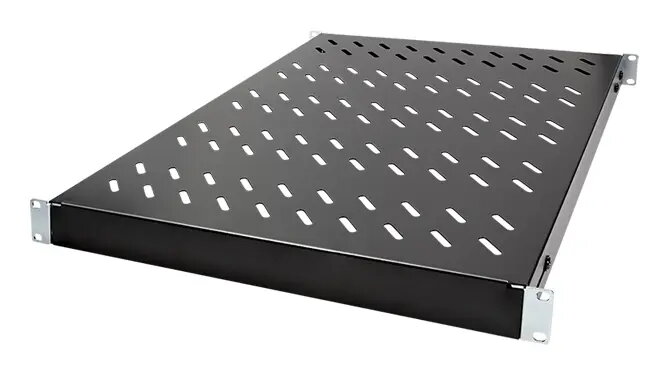

LOGILINK SF0800B is a 1U adjustable steel rack shelf in black finish designed for 19" server and network cabinets with 800 mm installation depth. The shelf features a perforated work surface to support airflow and dissipate heat from mounted equipment. It installs on both front and rear 19" mounting profiles and is delivered as a single unit with four mounting brackets and mounting hardware.

Advantages

The perforated steel tray provides a balance of rigidity and ventilation, helping to keep devices cooler than on solid shelves. Adjustable mounting depth and included brackets simplify installation in cabinets with 800 mm depth, while the black RAL 9005 finish matches common rack aesthetics. With a static load capacity rated up to 50 kg, the shelf supports a variety of servers, network devices and peripherals without requiring full 19" rail support for each device.

Suitable for

• Mounting non-rackmountable servers, switches or small UPS units inside 19" server cabinets
• Placing peripherals such as external hard drives, KVM switches, or patch panels that do not need front-to-back 19" mounting
• Temporary equipment staging or storage within a 19" enclosure where ventilation is required

When it may not be suitable

This shelf is not a replacement for full-width 19" equipment rails when precise front-panel alignment or full rail-mounted support is required. If a device needs to be fastened directly to standard 19" mounting ears or requires shock/vibration-rated mounting, a dedicated 19" rack rail or tray designed for that device type may be more appropriate.

Key specifications

• Form factor: 1U adjustable rack shelf
• Material: steel, perforated work surface
• Finish: black (RAL 9005)

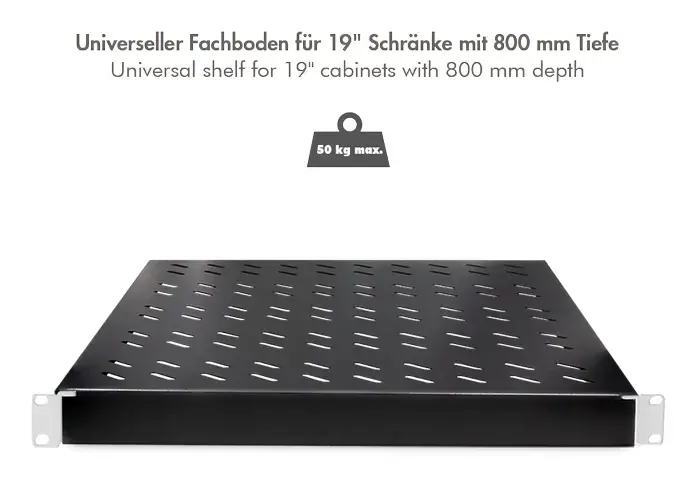

• Compatible cabinet depth: 800 mm

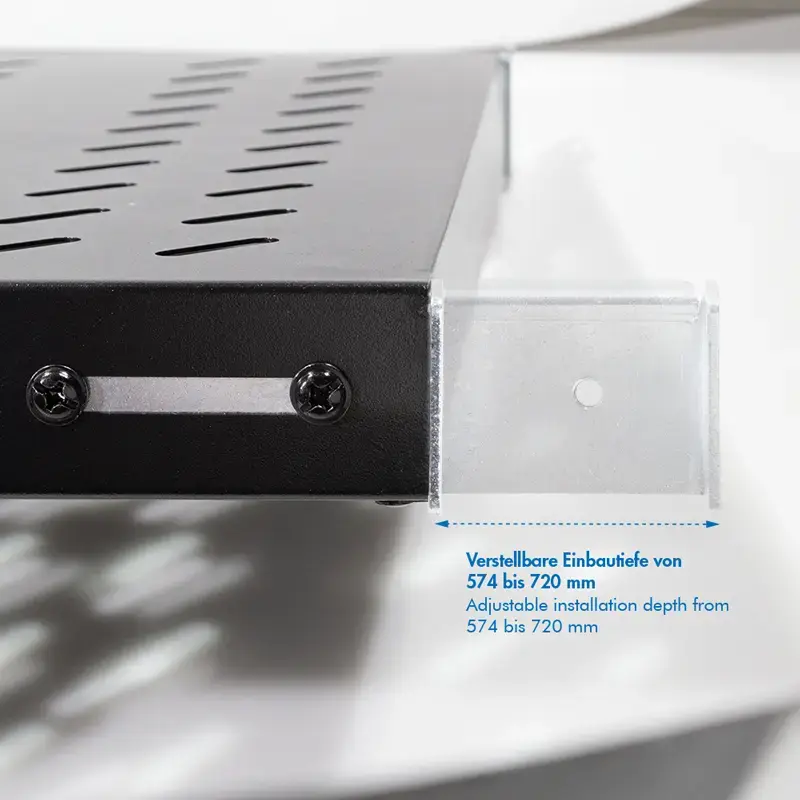

• Adjustable mounting depth: 574–720 mm
• Work surface dimensions: 440 x 570 mm (perforated)
• Static load capacity: up to 50 kg
• Mounting: front and rear 19" profiles; includes 4 mounting brackets and hardware

How to use

Measure the internal depth of your 19" cabinet to ensure compatibility with the adjustable mounting depth range of 574–720 mm. Position the shelf so its mounting brackets align with the front and rear mounting planes at 482.6 mm (19") and secure the brackets using the supplied screws and fasteners. Place equipment on the perforated surface, distributing weight evenly and ensuring the total static load does not exceed 50 kg. Leave clearance for airflow above and around heat-producing devices.

What to consider before purchase

• Confirm your cabinet internal depth and available mounting positions fall within the 574–720 mm adjustable range
• Check device dimensions and weight to ensure even support on a shelf (do not exceed 50 kg)
• Consider whether devices require front-panel mounting or additional rack rails for secure attachment
• Verify compatibility with your cabinet’s mounting hole pattern and that necessary tools are available for installation

Usage recommendations

For improved airflow, place heat-generating devices toward the front of the shelf and allow unobstructed vents; secure heavy or unevenly weighted equipment with additional fasteners or support to prevent shifting during maintenance. Regularly inspect mounting hardware for tightness after installation.
