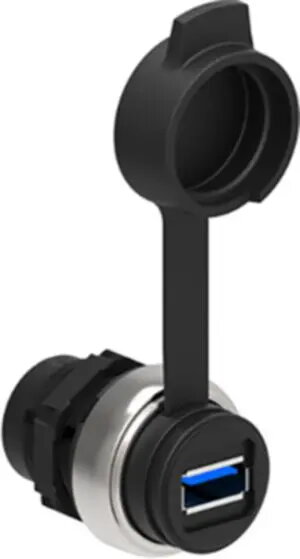

LOVATO Electric LPCD03 USB 3.0 Type A/B Panel Mount Socket, 22mm

The LOVATO Electric LPCD03 is a professional-grade USB 3.0 Type A/B panel mount socket engineered for seamless integration into industrial control panels and automation systems. Designed for a standard 22mm mounting hole, this robust connector provides a reliable interface for connecting external USB devices without the need to open the enclosure. Its high-quality construction ensures stable data transmission and long-term durability in demanding operational environments.

Advantages

This panel mount socket offers exceptional convenience by allowing secure and quick access to USB ports directly from the front of a control cabinet. The USB 3.0 standard supports high-speed data transfer rates, making it suitable for modern industrial applications that require efficient communication between devices. Its compact design and standardized 22mm diameter facilitate straightforward installation, while the durable housing protects the connection from dust and physical stress, ensuring consistent performance over time.

Suitable for

• Industrial control panels
• Automation and robotics systems
• Human-machine interface (HMI) enclosures
• Data logging and diagnostic equipment
• External peripheral connectivity in factory environments

When it may not be suitable

This device is not intended for outdoor use where it may be exposed to direct precipitation or extreme environmental conditions without additional protective housing. It is also not suitable for applications requiring specialized ruggedized connectors with IP-rated sealing beyond standard panel mounting requirements.

Key specifications

• Interface type: USB 3.0 Type A/B
• Mounting diameter: 22mm
• Housing material: Industrial-grade plastic
• Compatibility: Standard USB 3.0 devices
• Mounting style: Panel mount

How to use

To install the LOVATO Electric LPCD03, ensure the control panel has a clean 22mm diameter hole. Insert the connector through the opening from the front and secure it firmly using the provided locking nut from the rear. Once mounted, connect the internal cable to your controller or computer system. Ensure that the cable length does not exceed recommended USB 3.0 standards to maintain signal integrity during data transfer.

What to consider before purchase

• Verify the panel thickness to ensure the locking nut can be tightened securely.
• Check the internal space availability behind the panel for cable routing.
• Ensure the USB 3.0 standard is compatible with your specific hardware requirements.
• Confirm that the environment is suitable for a non-sealed panel mount connector.

Usage recommendations

For optimal performance, keep the USB cable runs as short as possible and avoid routing them near high-voltage power lines to prevent electromagnetic interference. Regularly inspect the socket for debris to ensure a clean connection.
