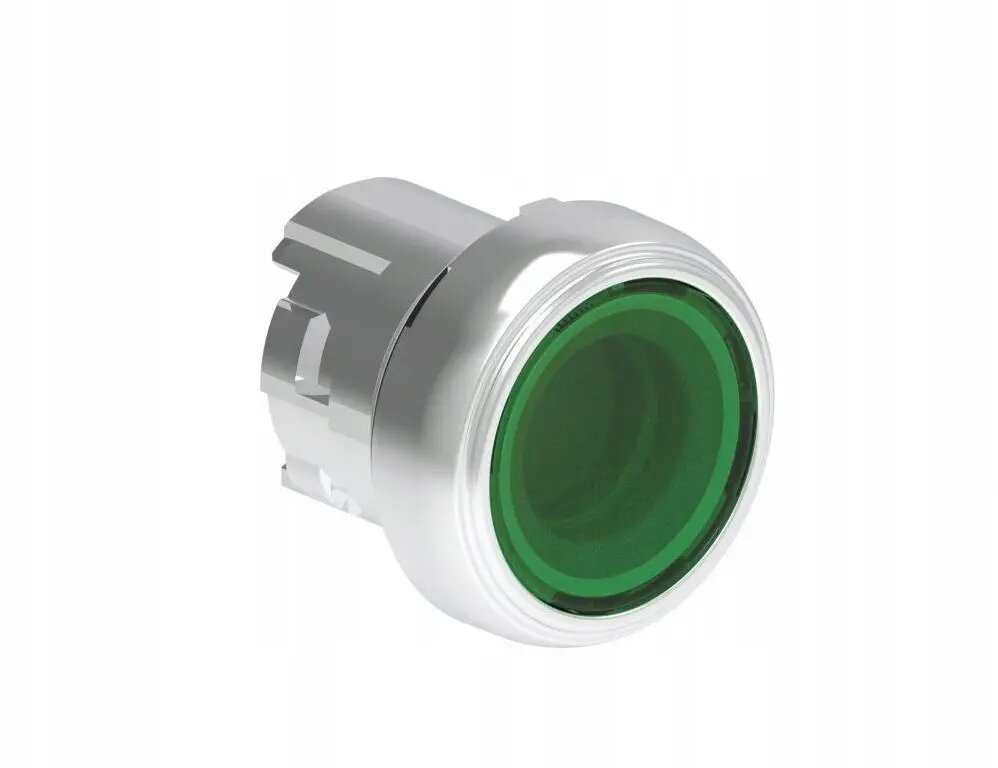

LOVATO Electric LPSBL103 Illuminated Metal Push Button, 22mm, Flush, Spring Return, Green

The LOVATO Electric LPSBL103 is a professional-grade 22mm illuminated metal push button engineered for demanding industrial control environments. This flush-mounted actuator features a spring return mechanism, ensuring that the button automatically resets to its original position after each press. Its robust metal housing is designed to withstand rigorous daily use, while the integrated green illumination provides immediate visual feedback regarding the operational status of the connected system.

Advantages

The primary benefit of this push button is its durable metal construction, which offers superior resistance to mechanical wear and environmental stress compared to plastic alternatives. The flush design minimizes the risk of accidental activation, making it a safer choice for crowded control panels. Furthermore, the integrated illumination ensures that operators can easily identify the status of the switch even in low-light conditions, enhancing overall workplace safety and operational efficiency.

Suitable for

• Industrial automation control panels
• Machine start and stop functions
• Status signaling in electrical cabinets
• Human-machine interface (HMI) consoles

This push button may not be suitable for applications requiring extreme chemical resistance or specialized hygienic environments, such as food processing or pharmaceutical manufacturing, where stainless steel or specific IP-rated enclosures might be mandatory. It is also not intended for high-voltage power switching without appropriate contact blocks or relay interfaces.

Key specifications

• Mounting diameter: 22mm
• Actuator type: Flush
• Action: Spring return
• Illumination color: Green
• Material: Metal

To install the device, insert the actuator through a standard 22mm hole in the control panel and secure it using the provided locking nut. Ensure that the contact blocks are correctly attached to the rear of the actuator before connecting the wiring. The illumination circuit should be wired according to the voltage requirements specified for the LED module to prevent damage.

What to consider before purchase

• Verify that your control panel has a standard 22mm mounting hole.
• Ensure the supply voltage for the illumination matches your system requirements.
• Check if additional contact blocks are needed for your specific switching logic.

Usage recommendations: Regularly inspect the push button for signs of mechanical wear or debris accumulation. Ensure that the electrical connections remain tight and free from oxidation to maintain consistent performance and reliable illumination.
