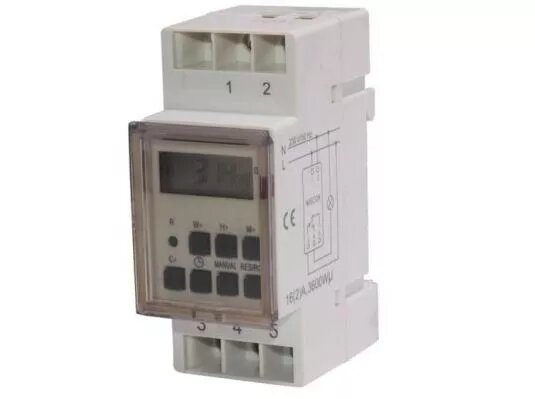

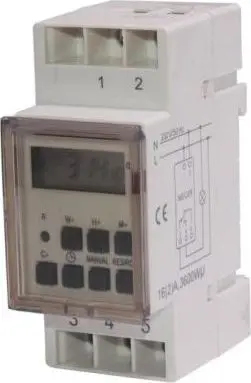

Maclean MCE09 Digital DIN Rail Timer

The Maclean MCE09 is a digital DIN rail timer designed to provide precise scheduling and automated control for various electrical devices and lighting systems. Suitable for residential, commercial, and industrial applications, this timer features a clear digital display and programmable settings to ensure reliable time-based management and improved energy efficiency. With support for multiple programs and day combinations, it integrates easily into standard electrical setups on a DIN rail.

Advantages

This digital timer offers reliable automated control that helps optimize energy consumption by operating connected devices only when needed. The clear digital display allows for straightforward programming and monitoring of the scheduled tasks. Its standard DIN rail mounting ensures a neat and secure installation within electrical enclosures. The device supports versatile scheduling options including multiple programs and weekday combinations, making it adaptable to diverse operational requirements and daily routines.

Suitable for

• Automating residential lighting and heating systems
• Controlling commercial signages and display lights
• Managing industrial equipment schedules
• Optimizing energy use in office buildings

When it may not be suitable

This timer may not be suitable for applications requiring complex automation logic beyond basic time-based scheduling. It is also not intended for outdoor use unless housed in an appropriate weather-resistant enclosure.

Key specifications

• Digital timer mechanism
• Designed for standard DIN rail mounting
• Maximum current rating of 16A
• Maximum power capacity of 3600W
• Supports up to 10 programs
• Features 16 combinations of weekdays

How to use

Installation should be performed by a qualified electrician in accordance with local electrical codes and safety standards. Mount the timer onto a standard DIN rail inside an appropriate electrical enclosure and connect the power supply and load according to the wiring diagram. Use the digital interface and buttons to set the current time and configure the desired programs and day combinations for automated operation. Verify the settings to ensure proper switching times before closing the enclosure.

What to consider before purchase

• Verify that the maximum load does not exceed 16A or 3600W
• Ensure there is available space on a standard DIN rail within your electrical panel
• Confirm that time-based scheduling meets your automation needs

Usage recommendations: Regularly check the programmed settings and time synchronization to ensure continuous and accurate operation of connected electrical devices.
