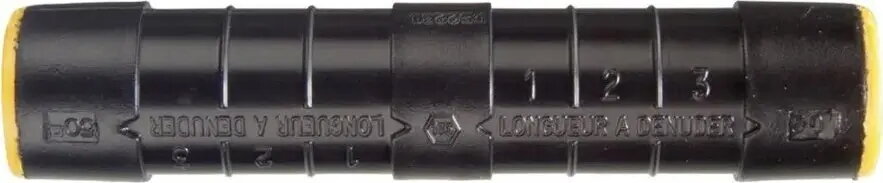

Pre-insulated Cable Connector MAGICSOFTS MJPT16 — MJPT16 pre-insulated joint for cables

Pre-insulated Cable Connector MAGICSOFTS MJPT16 is a factory-made MJPT16 joint designed for mechanically and electrically connecting insulated conductors. The connector provides built-in insulation to protect the splice from moisture and accidental contact, and is suitable for low-voltage cable installations, repairs and cable extensions where a compact, reliable insulated joint is required. Its compact form factor allows installation inside distribution boxes, enclosures and outdoor splices with limited space.

Advantages

The MJPT16 connector combines mechanical strength and electrical continuity in a single pre-insulated unit, reducing assembly time compared with separate crimp and insulation steps. Pre-insulation eliminates the need for additional heat-shrink tubing or tape for standard low-voltage splices and helps ensure consistent insulation quality. The design supports easy handling and provides a neat, compact splice that minimizes clutter in junction boxes and reduces the risk of accidental contact.

Suitable for

• Low-voltage electrical wiring splices and repairs
• Extension of insulated conductors in distribution boxes
• Field splices in confined spaces or outdoor enclosures

Key specifications

• Intended for insulated conductors used in low-voltage installations
• Pre-insulated single-unit connector for mechanical and electrical joining
• Compact dimensions for use in junction boxes and tight enclosures
• Designed to provide moisture protection and electrical insulation at the splice
• Suitable for standard conductor cross-sections commonly used in building wiring (refer to manufacturer guidance for exact conductor range)

How to use

Prepare the conductors by stripping the required insulation length, insert the exposed conductor ends into the connector according to the alignment indicated by the connector body, and complete the mechanical connection following the manufacturer's recommended crimping or insertion method. Ensure that the conductors are fully seated inside the contact chamber before finalizing the connection. After joining, verify continuity and that the pre-insulation fully covers the splice. Install the completed splice inside an appropriate enclosure or distribution box, observing local electrical codes.

Usage recommendations

Use the connector only with insulated conductors intended for low-voltage circuits and within the conductor size range specified by the manufacturer. Do not expose the connector to mechanical stress beyond normal cable strain relief, and avoid installation in locations subject to prolonged submersion unless additional protection is provided. Follow local regulations and testing procedures after installation to confirm safe electrical performance.
