Tripod Accessory Manfrotto 396B-2, aluminium, black, length 625 mm, max load 5 kg

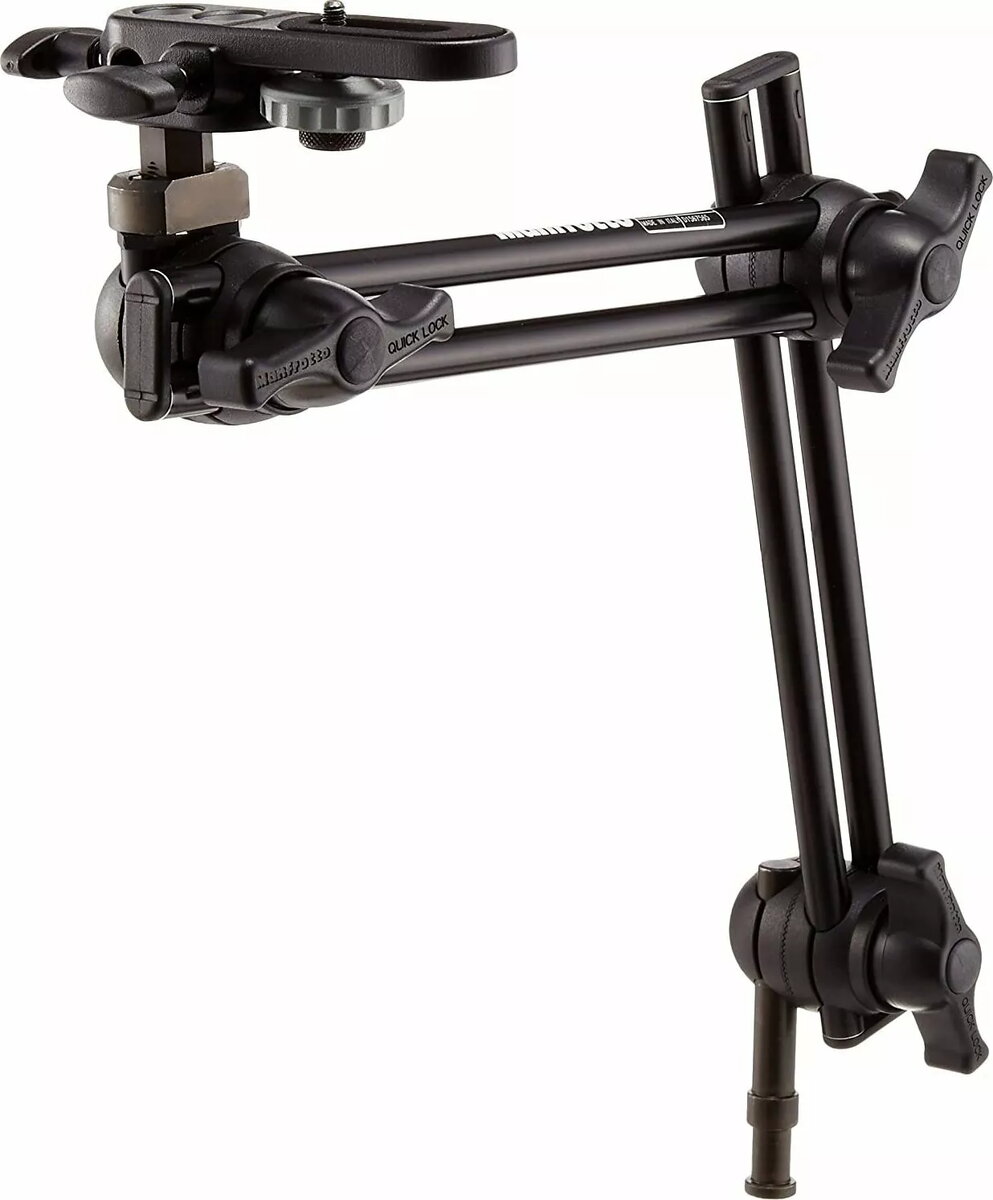

Manfrotto 396B-2 is a double articulated aluminium arm designed to extend and reinforce tripod setups. Finished in black and extending up to 625 mm, this accessory supports loads up to 5 kg while weighing 640 g. It combines a sliding extension system with a quick-lock mechanism, a dual-ended spigot solution and a camera bracket with a 16 mm spigot to provide stable mounting for compact cameras, lightweight video heads and other small accessories.

Advantages

The aluminium construction offers a balance of strength and low weight, making the arm durable without significantly increasing the overall setup mass. The extendable sliding arm with quick lock lets you adjust length precisely and secure it reliably. A new bottom attachment integrates a hexagonal anti-rotation spigot and a universal adapter section for easy and stable connection to clamps, stands and other supports. The top attachment includes a camera bracket with a 16 mm spigot and camera screw for straightforward mounting.

Suitable for

• Mounting compact mirrorless or point-and-shoot cameras
• Supporting lightweight video heads and small gimbals
• Attaching lights, monitors or audio accessories to stands and clamps
• Extending tripod reach for creative angles and positioning

Key specifications

• Material: aluminium construction with black finish
• Maximum extended length: 625 mm
• Maximum load capacity: 5 kg
• Weight: 640 g
• Attachment interfaces: top camera bracket with 16 mm spigot; bottom dual-anchored 16 mm hexagonal/universal spigot
• Adjustment: sliding arm with quick-lock system

How to use

Attach the bottom spigot to a compatible clamp, stand or the Superclamp system, ensuring the hexagonal section is engaged if anti-rotation is required. Extend the sliding arm to the desired reach and engage the quick lock to secure length. Mount the camera or accessory onto the top camera bracket using the 16 mm spigot and camera screw, then balance and tighten all connections. Check that the total mounted weight does not exceed the 5 kg capacity before operation.

Usage recommendations

For stable setups, use the 396B-2 with clamps and stands rated for the same or higher load capacity. Avoid sudden lateral impacts and regularly check locking points for wear. When mounting heavier heads or accessories near the 5 kg limit, counterbalance the setup or use additional support to minimize stress on joints and spigots.
