header-product Handheld Barcode Scanner Manhattan Contact CCD USB 1D/2D 60mm Scan Width
40.49 €

Handheld Barcode Scanner Manhattan Contact CCD USB 1D/2D 60mm Scan Width

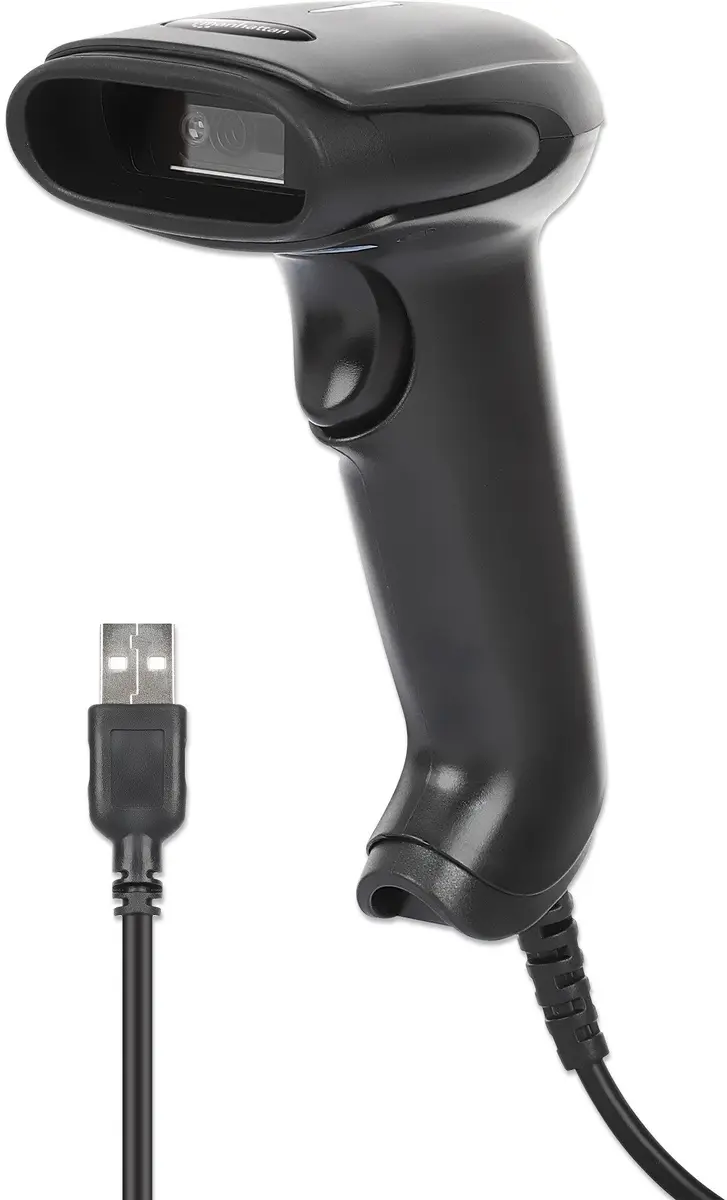

Handheld Barcode Scanner Manhattan Contact CCD Photo 1
Handheld Barcode Scanner Manhattan Contact CCD Photo 2
Handheld Barcode Scanner Manhattan Contact CCD Photo 1
Handheld Barcode Scanner Manhattan Contact CCD Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld Barcode Scanner Manhattan Contact CCD USB 1D/2D 60mm Scan Width

{{email}}
You keep track of price changes

Handheld Barcode Scanner Manhattan Contact CCD USB 1D/2D 60mm Scan Width

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Manhattan Contact CCD Handheld Barcode Scanner features a 60mm scan width, USB connectivity, and a 1.4m cable. It supports 1D and 2D scanning with a maximum ambient light of 5000 lux. The scanner is lightweight at 110g and made from durable ABS material, making it ideal for retail and inventory management.
Available at price 40.49 €: 33 pcs.
Total available for order: 109 pcs.
Warranty: 2 Years
SKU: 11206141
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
06.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
09.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.22 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
09.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 40.49 €: 6 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Manhattan Contact CCD Handheld Barcode Scanner is an affordable USB 1D/2D scanner designed for retail, warehousing, hospitality and other environments where fast, reliable barcode capture improves routine transactions and automates paper-based processes. The scanner reads codes from mobile device screens and printed 1D/2D labels such as UPC, EAN, QR Code, Data Matrix and PDF417. It features a 60 mm scan width, LED sensor and wired USB connectivity for stable operation without batteries.

Advantages

The scanner provides a wide scan field with a working distance up to 320 mm (12.6 in.) and a high read rate for quick, accurate captures that reduce manual entry errors. It supports a broad set of 1D and 2D symbologies and tolerates bright ambient light, enabling dependable performance even in well-lit or sunlit environments. Plug-and-play USB-A connection requires no additional drivers and is compatible with Windows, macOS, Chrome OS and Linux for straightforward integration.

Suitable for

  • Point-of-sale and retail checkout
  • Inventory and stock control in warehouses
  • Hospitality check-in and ticketing
  • Healthcare patient ID and document scanning
  • Coupon and loyalty card processing

Key specifications

  • Scanner type: 1D/2D handheld
  • Sensor type: LED (CCD contact)
  • Scan width: 60 mm
  • Working distance: up to 320 mm (12.6 in.)
  • Maximum read rate: 100 reads/s
  • Connectivity: Wired USB-A (1.4 m cable)
  • Ambient light tolerance: up to 5,000 lux (product data) — source text also mentions up to 100,000 lux for ambient light tolerance
  • Supported 1D codes: Code 39, Industrial 2 of 5, ISSN, GS1 Databar RSS14, GS1 Databar Limited, GS1 DataBar Expanded, EAN-8, Codabar, Code 11, Code 128, Matrix 2 of 5, Code 39 (ASCII), Code 93, EAN-13, Interleaved 2 of 5, MSI, UPC-A, UPC-E
  • Supported 2D codes: Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
  • Weight: 0.11 kg
  • Housing material: ABS (acrylonitrile butadiene styrene)
  • Colour: Black
  • Manufacturer part number (MPN): 153997
  • EAN: 0766623153997

How to use

Connect the scanner to a computer or POS terminal using the supplied USB-A cable; the device is plug-and-play and typically requires no driver installation. Aim the scanner at the barcode or QR code so the code falls within the scan window and press the trigger (or enable hands-free mode if mounted on a stand). The scanner will read and transmit the code data to the connected system at the cursor position or active input field.

Usage recommendations

For hands-free operation and faster scanning at checkout or packing stations, pair the scanner with the Manhattan Barcode Scanner Stand (Manhattan part #154192). Avoid exposing the scanner window to heavy dust or liquid; clean the window with a soft, lint-free cloth and a mild cleaner when necessary.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.11 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
Power source type: What the power source is.
USB
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
GS1 Databar Limited, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, MSI, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, UPC-E, UPC-A, Matrix 2 of 5
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
QR Code, PDF417, MicroPDF417, Micro QR Code, Data Matrix, Aztec Code
All features

Logistics data

Master (outer) case height:
400 mm
Master (outer) case width:
360 mm
Master (outer) case gross weight:
10160 g
Master (outer) case length:
565 mm
Products per master (outer) case:
40 pc(s)

Technical details

Warranty period:
3 year(s)
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50
Drop resistance:
1.2 m

Packaging data

Package weight: Weight of the packaged product.
260 g
Package height: The distance from the top to the bottom of the packaging.
105 mm
Package depth: The distance from the front to the back of the packaging.
80 mm
Package width: The distance from one side of the packaging to the other.
195 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.11 kg
Height: The measurement of the product from head to foot or from base to top.
95 mm
Depth: The distance from the front to the back of something.
150 mm
Width: The measurement or extent of something from side to side.
70 mm

Power

Power consumption:
130 mA
Input voltage: The voltage (V) which is required to power the product.
5
Power source type: What the power source is.
USB

Performance

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Print contrast:
25 %
Housing material: What the casing of the product is made of.
Acrylonitrile butadiene styrene (ABS)
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Cable length: How long the cable is.
1.4 m
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Light levels (direct sunlight):
0 - 100000
Read rate (max):
100 reads/s
Vertical field of view:
28 °
Horizontal field of view:
36 °
Working distance:
320 mm
1D resolution (min):
0.1 mm
2D resolution (min):
0.17 mm
Optical sensor resolution (W x H):
640 x 480
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
GS1 Databar Limited, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, MSI, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, UPC-E, UPC-A, Matrix 2 of 5
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
QR Code, PDF417, MicroPDF417, Micro QR Code, Data Matrix, Aztec Code
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
