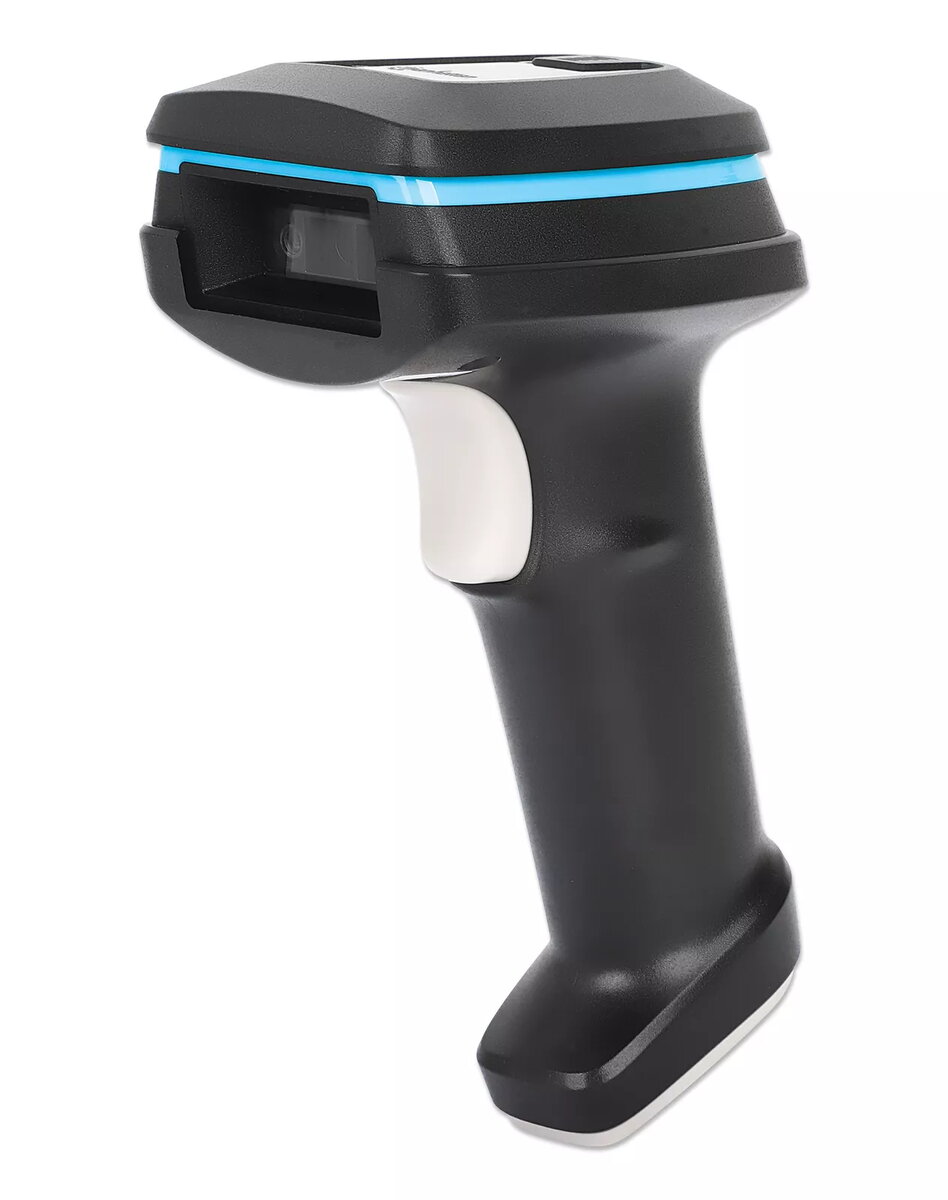

Handheld Barcode Scanner Manhattan 2D Long Range

Name: Handheld Barcode Scanner Manhattan 2D 154116
Brand: MANHATTAN
SKU: 11171785
Price: 81.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Handheld Barcode Scanner Manhattan 2D Long Range USB 450mm Scan Depth

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Manhattan 2D Long Range LED Barcode Scanner features USB connectivity, a scan depth of 450mm, and supports multiple 1D and 2D symbologies. It is designed for efficient scanning in various environments with a maximum ambient light tolerance of 100,000 lux. The scanner is lightweight at 220g and has a durable ABS housing with an IP52 rating, making it suitable for everyday use.

Available at price 81.99 €: 14 pcs.

Total available for order: 96 pcs.

Warranty: 2 Years

SKU: 11171785

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.68 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 27.33 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 2.28 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Manhattan 2D Long Range USB 450mm Scan Depth handheld barcode scanner is a durable 1D/2D LED scanner designed to streamline data entry across retail, hospitality, healthcare, warehousing and logistics. It reads barcodes from mobile device screens and paper labels including product codes, coupons and loyalty cards. The scanner offers a 450 mm working distance, wired USB connectivity and an IP52-rated ABS housing for use in demanding environments.

Advantages

This scanner delivers fast and accurate reads with a wide scan field and a maximum read rate of up to 60 reads/s, reducing errors and delays in daily operations. It supports a broad set of 1D and 2D symbologies (UPC, EAN, QR Code, Data Matrix, PDF417 and more). With ambient light tolerance up to 100,000 lux it operates reliably in bright conditions, and plug-and-play USB-A connectivity ensures quick setup on Windows, macOS, Chrome OS and Linux without additional drivers. The wired connection provides continuous power and consistent performance.

Suitable for

Retail point-of-sale scanning and coupon redemption
Hospitality check-in and ticket validation
Healthcare patient ID and medication tracking
Warehousing and logistics inventory and shipping operations

Key specifications

Scanner type: 1D/2D
Sensor type: LED
Maximum working distance: 450 mm (17.7 in.)
Read rate (max): 60 reads/s
Connectivity: Wired USB-A (plug-and-play)
Housing: ABS, colour: Black, IP52 rated
Maximum ambient light tolerance: 100,000 lux
Weight: 0.22 kg
Supported 1D codes: GS1 DataBar Expanded, Interleaved 2 of 5, China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, UPC-A, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Matrix 2 of 5, Telepen, UPC-E, MSI
Supported 2D codes: Grid Matrix Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Data Matrix, Aztec Code

How to use

Connect the scanner to a computer or terminal using the USB-A cable; the device is plug-and-play and does not require additional drivers. Position the scanner so the target barcode is within the scan field and within the working distance (up to 450 mm). Press the trigger or use the optional hands-free stand (Manhattan Barcode Scanner Stand #154192) to maintain a steady read zone for continuous scanning. For mobile screen barcodes, ensure the screen brightness is sufficient and the barcode is free of obstructions.

Usage recommendations

For consistent performance, avoid exposing the scanner to direct streams of water and keep the lens free of dust. Use the wired USB connection for high-volume scanning to ensure uninterrupted power. Pair the scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation in busy checkout or packing stations.

Specifications

Scanner type:: 1D/2D
Sensor type:: LED
Working distance:: 450 mm
Read rate (max):: 60 reads/s
Connectivity technology:: Wired
Weight:: 0.22 kg
Linear (1D) barcodes supported:: GS1 DataBar Expanded, Interleaved 2 of 5, China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, UPC-A, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Matrix 2 of 5, Telepen, UPC-E, MSI
2D (matrix & stacked) barcodes supported:: Grid Matrix Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Data Matrix, Aztec Code
Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS)

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: LED
Type:: Handheld bar code reader
Working distance:: 450 mm
Read rate (max):: 60 reads/s
Linear (1D) barcodes supported:: GS1 DataBar Expanded, Interleaved 2 of 5, China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, UPC-A, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Matrix 2 of 5, Telepen, UPC-E, MSI
2D (matrix & stacked) barcodes supported:: Grid Matrix Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Data Matrix, Aztec Code
Light levels (direct sunlight):: 0 - 100000
Horizontal field of view:: 45 °
Vertical field of view:: 36 °
Optical sensor resolution (W x H):: 1280 x 800
1D resolution (min):: 0.076 mm
2D resolution (min):: 0.18 mm

Ports & interfaces

Connectivity technology:: Wired
Cable length:: 1.8 m
Standard interfaces:: USB

Power

Input voltage:: 5
Power consumption:: 280 mA
Power source type:: USB

Technical details

Warranty period:: 3 year(s)
Compliance certificates:: REACH, RoHS, CE, UKCA, Federal Communications Commission (FCC)

Performance

Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP52
Protection features:: Drop resistant
Mean time between failures (MTBF):: 50000 h

Weight & dimensions

Weight:: 0.22 kg
Height:: 172 mm
Width:: 67 mm
Depth:: 87 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 95
Storage temperature (T-T):: -20 - 70
Operating temperature (T-T):: -10 - 50
Drop resistance:: 1.2 m

Packaging data

Package weight:: 320 g
Cables included:: USB Type-A
Package depth:: 80 mm
Package height:: 108 mm
Package width:: 175 mm

Logistics data

Master (outer) case height:: 400 mm
Master (outer) case width:: 360 mm
Master (outer) case gross weight:: 12800 g
Master (outer) case length:: 565 mm
Products per master (outer) case:: 40 pc(s)
