Handheld Barcode Scanner Manhattan Wireless 2D

Name: Handheld Barcode Scanner Manhattan Wireless 154185
Brand: MANHATTAN
SKU: 11206142
Price: 122.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Handheld Barcode Scanner Manhattan Wireless 2D 250mm Scan Depth 80m Range

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Manhattan Wireless 2D Handheld Barcode Scanner features a 250mm scan depth and an effective range of up to 80m. It operates wirelessly with a maximum ambient light tolerance of 100,000 lux. The scanner is powered by a 2000 mAh battery and features a USB Type-C charging port. Its compact design and lightweight build make it ideal for various scanning applications.

Available at price 122.49 €: 75 pcs.

Total available for order: 117 pcs.

Warranty: 2 Years

SKU: 11206142

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.28 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 122.49 €: 8 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

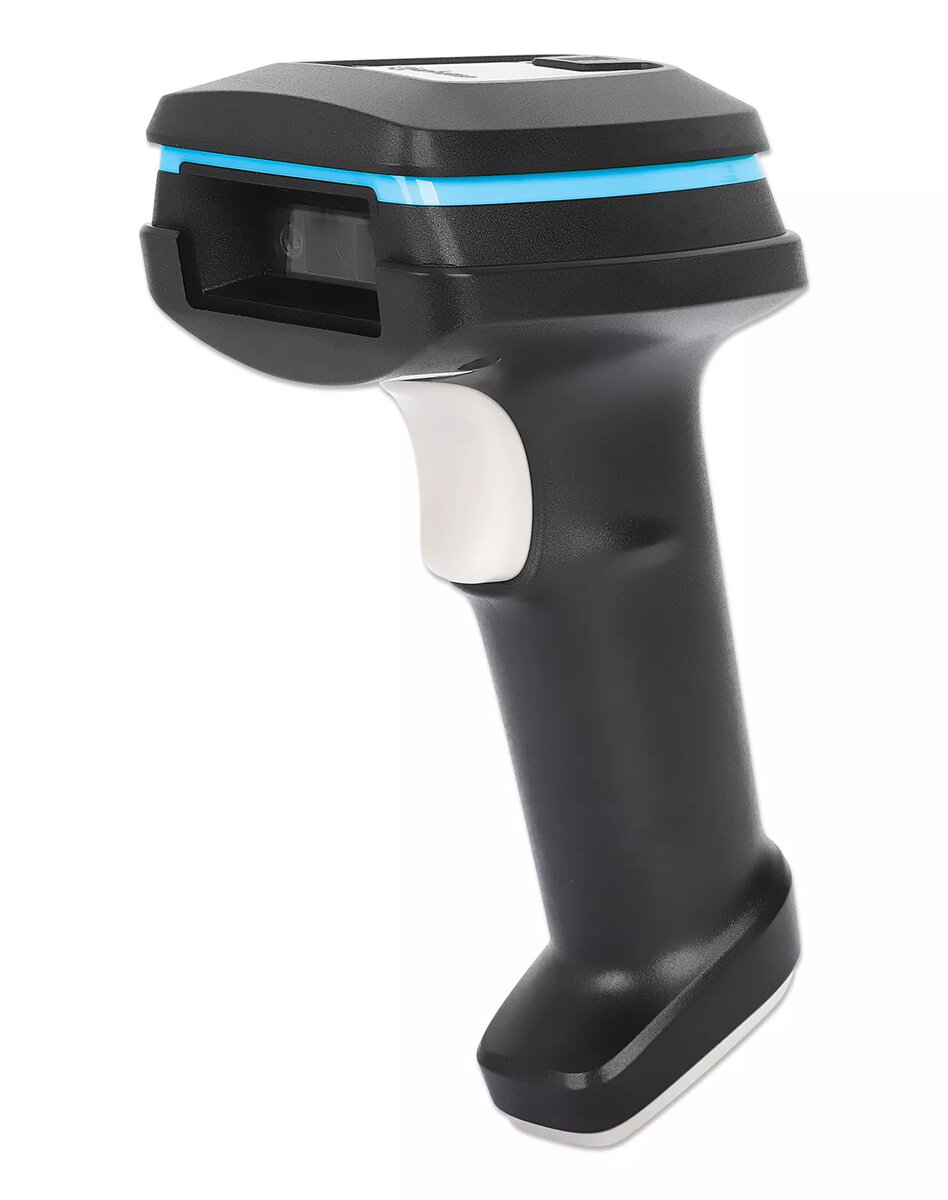

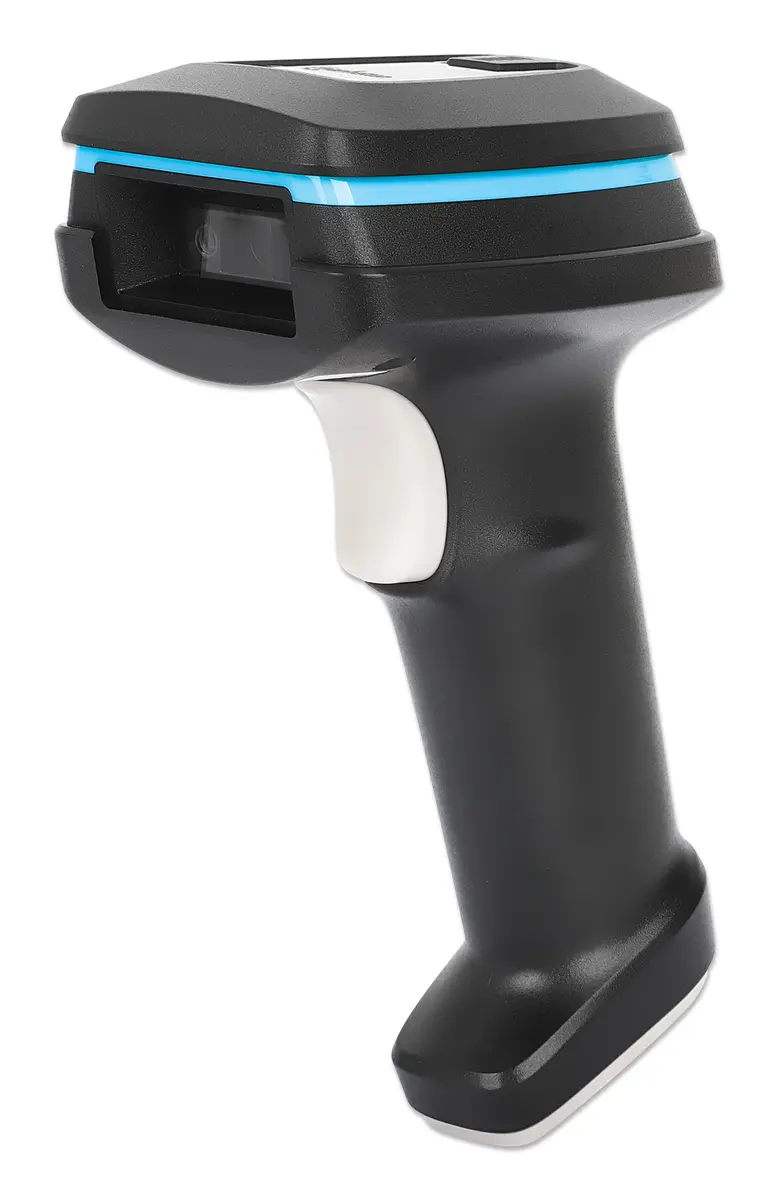

The Manhattan Wireless 2D Handheld Barcode Scanner 154185 is a rugged, LED-based 1D/2D scanner designed for data capture in retail, hospitality, healthcare, warehousing and other challenging environments. It reads barcodes from paper labels and mobile screens, supports a wide range of symbologies and offers wireless connectivity with computers and mobile devices for streamlined transactions and automated processes.

Advantages

This scanner provides flexible wireless connections via a 2.4 GHz RF nano receiver or Bluetooth/Wireless 4.2, a wide scan field with scan depth up to 450 mm, and reliable performance in bright light up to 100,000 lux. The housing meets IP52 protection against dust and moisture, the unit is lightweight (0.2 kg) and powered by a 2000 mAh battery with USB Type-C charging for extended use. It supports fast read rates (up to 60 reads/s) and decodes common 1D and 2D symbologies including UPC, EAN, QR Code, Data Matrix and PDF417.

Suitable for (tasks / use cases)

Point-of-sale scanning and coupon/loyalty processing in retail
Inventory counting and goods receiving in warehouses and logistics
Patient and medication tracking in healthcare settings
Check-in, ticketing and guest management in hospitality
Outdoor or brightly lit work areas requiring high ambient light tolerance

Key specifications

Scanner type: 1D/2D LED
Sensor type: LED
Working distance / scan depth: up to 450 mm
Read rate (max): 60 reads/s
Connectivity: 2.4 GHz RF nano receiver and Wireless 4.2 (Bluetooth)
Wireless range: up to 100 m with RF dongle, up to 50 m with Wireless 4.2
Battery: 2000 mAh, USB Type-C charging
Ambient light tolerance: up to 100,000 lux
Protection rating: IP52
Supported linear (1D) codes: Code 11, Industrial 2 of 5, ISSN, GS1-128 (UCC/EAN-128), GS1 Databar (Limited/Omnidirectional/Expanded), EAN-8, EAN-13, China Post, Codabar, Telepen, Code 128, Code 39 (including ASCII), Code 93, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
Supported 2D codes: Aztec, Data Matrix, Dot Code A, Grid Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Weight: 0.2 kg
Colour: Black
Housing material: ABS
Manufacturer part number (MPN): 154185
EAN: 0766623154185

How to use

For USB-A plug-and-play operation, insert the included 2.4 GHz nano receiver into a computer’s USB-A port; the scanner will communicate automatically. To connect directly to mobile devices, pair the scanner via Wireless 4.2 (Bluetooth) following the device pairing procedure. Aim the scanner at the barcode so the code is within the scan field and press the trigger; the scanner will emit a confirmation when the code is read. Charge the scanner using the USB Type-C port and the supplied charger or a compatible USB power source.

Usage recommendations

Position the scanner stand (Manhattan Barcode Scanner Stand #154192) for hands-free scanning in high-volume retail or processing areas. For optimal reads, ensure barcodes are clean and undamaged, keep the scanner lens free of dust, and avoid extreme angles between the scanner and barcode. Use the RF dongle for maximum wireless range in large facilities.

Specifications

Scanner type:: 1D/2D
Sensor type:: LED
Working distance:: 450 mm
Read rate (max):: 60 reads/s
Connectivity technology:: Wireless
Weight:: 0.2 kg
Linear (1D) barcodes supported:: Code 11, Industrial 2 of 5, ISSN, GS1-128 (UCC/EAN-128), GS1 Databar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, EAN-8, EAN-13, China Post, Codabar, Telepen, Code 128, Code 39, Code 39 (ASCII), Code 93, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported:: Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code
Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS)

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: LED
Type:: Handheld bar code reader
Working distance:: 450 mm
Read rate (max):: 60 reads/s
Linear (1D) barcodes supported:: Code 11, Industrial 2 of 5, ISSN, GS1-128 (UCC/EAN-128), GS1 Databar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, EAN-8, EAN-13, China Post, Codabar, Telepen, Code 128, Code 39, Code 39 (ASCII), Code 93, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported:: Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code
Light levels (direct sunlight):: 0 - 100000
Horizontal field of view:: 45 °
Vertical field of view:: 36 °
Optical sensor resolution (W x H):: 1280 x 800
1D resolution (min):: 0.076 mm
2D resolution (min):: 0.18 mm

Ports & interfaces

Connectivity technology:: Wireless
Cable length:: 1 m
Wireless range:: 80 m
Standard interfaces:: RF Wireless

Power

Charging time:: 5 h
Battery voltage:: 3.7 V
Power consumption:: 280 mA
Power source type:: Battery
Charging port type:: USB Type-C

Technical details

Warranty period:: 3 year(s)
Compliance certificates:: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Performance

Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP52
Protection features:: Drop resistant
Mean time between failures (MTBF):: 50000 h
Print contrast:: 20 %

Weight & dimensions

Weight:: 0.2 kg
Height:: 172 mm
Width:: 67 mm
Depth:: 87 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 95
Storage temperature (T-T):: -20 - 70
Operating temperature (T-T):: -10 - 50
Drop resistance:: 1.2 m

Packaging data

Package weight:: 320 g
Cables included:: USB Type-A to USB Type-C
Package depth:: 80 mm
Package height:: 108 mm
Package width:: 175 mm
Receiver type:: Nano receiver
Receiver included:: Yes

Battery

Battery capacity:: 2000 mAh

Logistics data

Master (outer) case height:: 400 mm
Master (outer) case width:: 360 mm
Master (outer) case gross weight:: 12760 g
Master (outer) case length:: 565 mm
Products per master (outer) case:: 40 pc(s)
