Handheld Barcode Scanner Manhattan 178433

Name: Handheld Barcode Scanner Manhattan 178433 178433
Brand: MANHATTAN
SKU: 107996
Price: 109.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

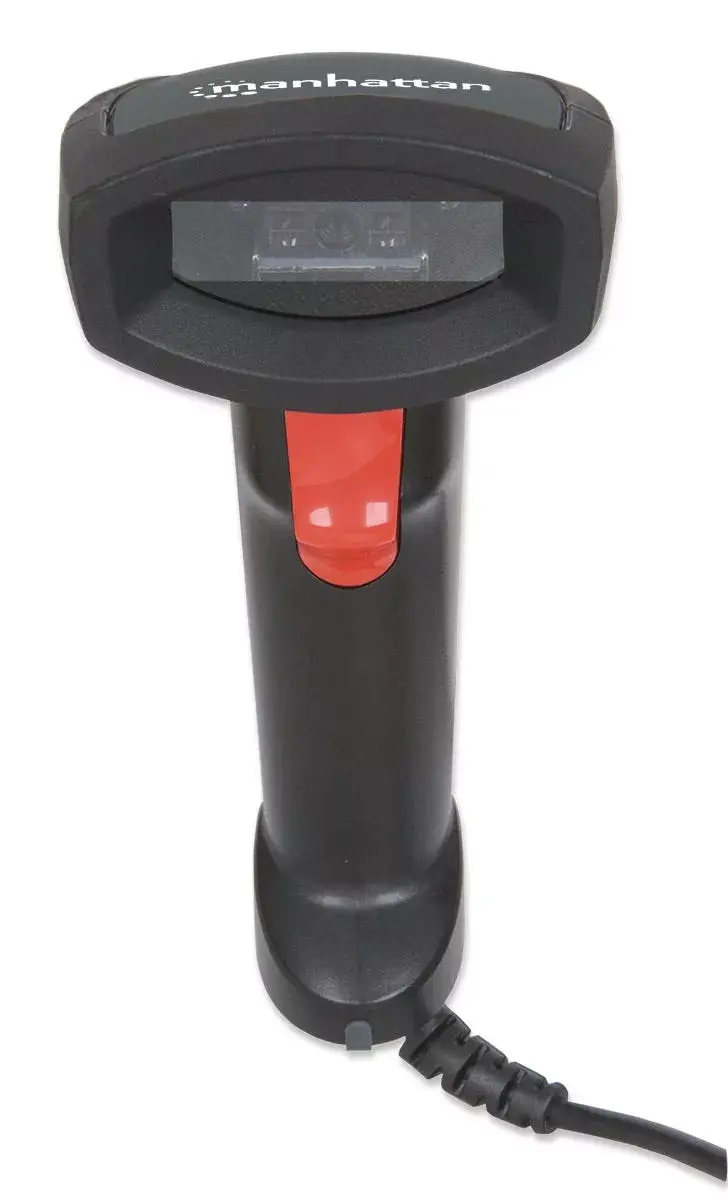

Handheld Barcode Scanner Manhattan 178433 Photo 3

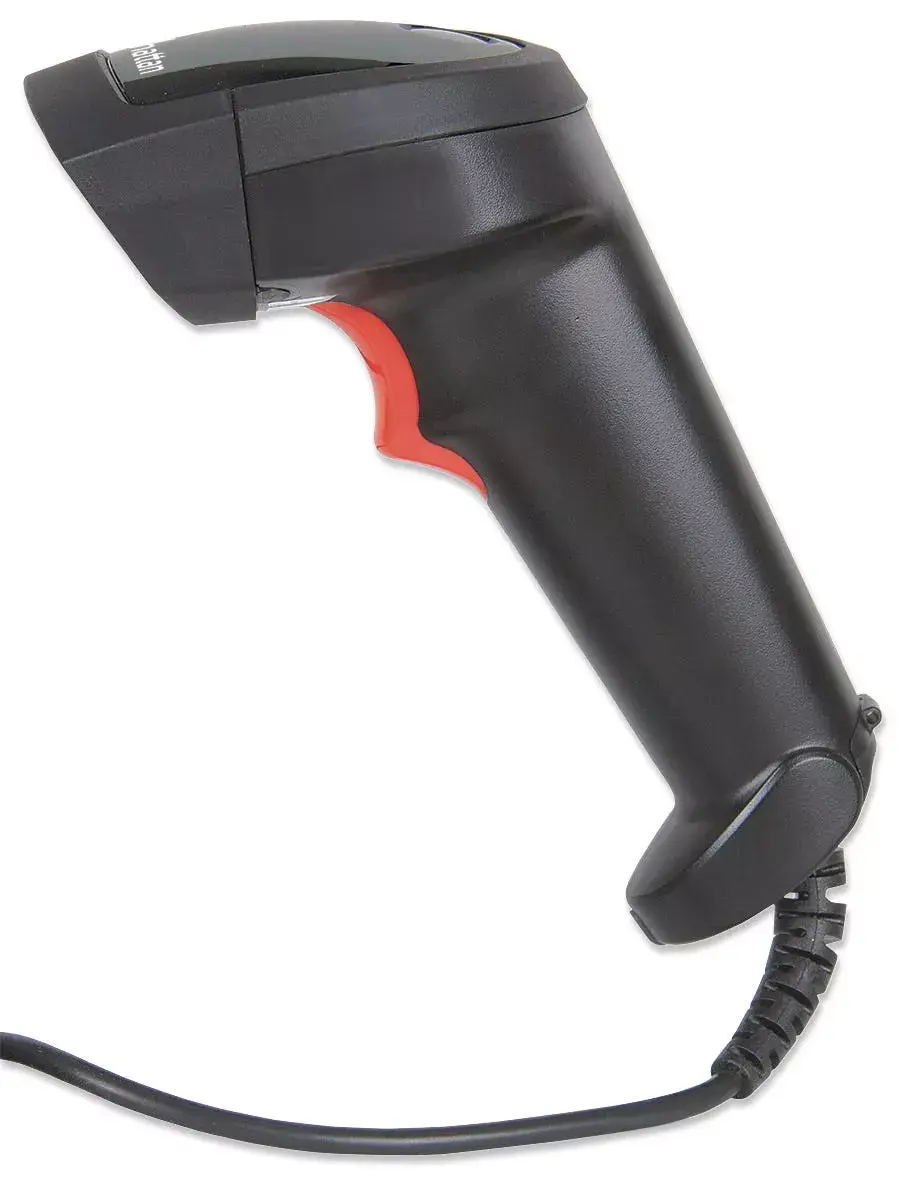

Handheld Barcode Scanner Manhattan 178433 Photo 4

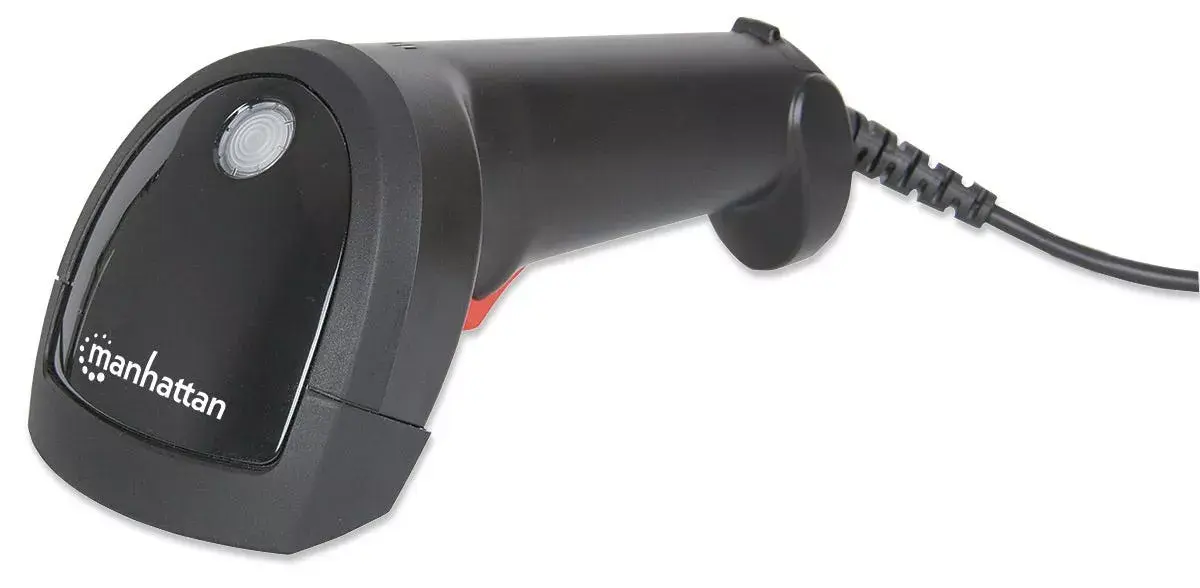

Handheld Barcode Scanner Manhattan 178433 Photo 5

Handheld Barcode Scanner Manhattan 178433 Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Manhattan Linear CCD Handheld Barcode Scanner features a 500mm scan depth, IP54 rating for dust and water resistance, and a cable length of 1.5m. It operates with a maximum ambient light of 100,000 lux, making it suitable for various environments. Weighing only 150g, it is lightweight and easy to handle. The scanner connects via USB, RS-232, or keyboard wedge, and is made from durable ABS and rubber materials. It comes with a three-year warranty.

Available at price 109.49 €: 6 pcs.

Total available for order: 26 pcs.

Warranty: 2 Years

SKU: 107996

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.34 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 123.99 €: 3 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Manhattan Linear CCD Handheld Barcode Scanner (model 178433) is a wired 1D barcode reader designed for point-of-sale, shipping, warehousing and general data-capture tasks. It uses a CCD sensor with no moving parts, offers a maximum working distance of 500 mm and a read rate of up to 500 scans per second. The scanner is built in a rugged ABS and rubber housing, supports popular linear symbologies such as Code 39, Code 128 and GS1-128, and connects via USB, RS-232 or keyboard wedge.

Advantages

The CCD scan engine provides reliable reads with an accurate scan depth and a high read rate while the impact-resistant ABS and rubber housing improves durability for everyday use. Multiple connectivity options (USB, RS-232, keyboard wedge) allow straightforward integration with existing systems. Lightweight at approximately 150 g and rated IP54 for dust and water resistance, the device balances portability with protection for a wide range of environments.

Suitable for

Point-of-sale scanning in retail environments
Package and shipping label capture
Inventory management and warehouse operations
Office data-entry automation to reduce manual typing

Key specifications

Model: Manhattan 178433
Scanner type: Handheld 1D
Sensor type: Linear CCD
Working distance: up to 500 mm (20 in.)
Read rate: up to 500 reads/s
Supported barcodes: Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
Connectivity: USB, RS-232, keyboard wedge
Housing material: ABS and rubber
Weight: 0.15 kg
Ingress protection: IP54
Warranty: 3 years

How to use

Connect the scanner to your computer or POS terminal using the appropriate cable (USB, RS-232 or keyboard wedge). Configure the host application to accept keyboard input if using the wedge mode so scanned data is delivered as keystrokes. Position the scanner so the barcode is within the 500 mm working distance and sweep the scanner across the code or hold it steady until the unit confirms a successful read. For consistent results, ensure the barcode is clean and well-contrasted against its background.

Usage recommendations

For reliable long-term operation, avoid exposing the scanner to direct jets of water and clean only with a soft, damp cloth. Use the appropriate interface for your system to prevent data-format issues (USB for modern PCs, RS-232 or keyboard wedge for legacy systems). Store the device in a dry place when not in use and follow the three-year warranty terms for service and support.

Specifications

Scanner type:: 1D
Sensor type:: CCD
Working distance:: 500 mm
Read rate (max):: 500 reads/s
Connectivity technology:: Wired
Weight:: 0.15 kg
Linear (1D) barcodes supported:: Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
2D (matrix & stacked) barcodes supported:: Not supported
Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS), Rubber

All features

Scanning

Scanner type:: 1D
Sensor type:: CCD
Type:: Handheld bar code reader
Working distance:: 500 mm
Read rate (max):: 500 reads/s
Linear (1D) barcodes supported:: Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
2D (matrix & stacked) barcodes supported:: Not supported
Wavelength:: 632 nm
Maximum scan width:: 500 mm
Light levels (direct sunlight):: 0 - 10000

Ports & interfaces

Connectivity technology:: Wired
Standard interfaces:: USB, Keyboard wedge, RS-232

Power

Input voltage:: 5
Power consumption:: 70 mA

Performance

Product colour:: Black
Housing material:: Acrylonitrile butadiene styrene (ABS), Rubber
Certification:: FCC, CE, RoHS
LED indicators:: Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP54

Weight & dimensions

Weight:: 0.15 kg
Height:: 70 mm
Width:: 70 mm
Depth:: 180 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 95
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 50

Logistics data

Harmonized System (HS) code:: 84716070

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
EU3	3	01.07.2026 Best delivery	123.99 €
WH354	3	08.07.2026	174.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	6	15.07.2026	109.49 € Best price
EU4	14	15.07.2026	123.99 €

123.99 €

Stock: 3

Delivery Date: 01.07.2026 Best delivery

Warehouse: EU3

174.99 €

Stock: 3

Delivery Date: 08.07.2026

Warehouse: WH354

Available only for legal entities

109.49 €

Stock: 6

Delivery Date: 15.07.2026

Warehouse: WH109

123.99 €

Stock: 14

Delivery Date: 15.07.2026

Warehouse: EU4

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Handheld Barcode Scanner Manhattan 178433 cost, and is it available for purchase?

The price is 109.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 26 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All MANHATTAN products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized MANHATTAN service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: scanner type, sensor type, working distance, read rate (max), connectivity technology, weight, linear (1d) barcodes supported, 2d (matrix & stacked) barcodes supported, product colour, housing material, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
