MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz

Name: AV HDMI HDBaseT Extender Kit 207638
Brand: MANHATTAN
SKU: 723837
Price: 238.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

AV HDMI HDBaseT Extender Kit MANHATTAN 4K@30Hz to 40m, 1080p to 70m, Cat5e/Cat6, PoC, IR/RS232

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 1

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 2

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 3

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 4

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 5

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 6

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 7

MANHATTAN HDMI HDBaseT Extender Kit 4K@30Hz Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Wired AV transmitter and receiver kit MANHATTAN HDBaseT extends HDMI signals over a single Cat5e/Cat6 cable. Supports up to 4K (4096×2160) at 30Hz to 40 m and 1080p to 70 m, with Power over Cable (PoC) and IR/RS232 control pass-through. Supplied with Euro 2‑pin power plug, operates at 24 V/1 A. Compact black units ideal for digital signage, conference rooms and AV installations.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 723837

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.60 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 79.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 6.64 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The MANHATTAN AV HDMI HDBaseT Extender Kit extends HDMI signals over a single Cat5e/Cat6 cable, enabling transmission of video and multichannel audio to distant displays. It supports up to 4K (4096×2160) at 30 Hz to 40 m and 1080p to 70 m, includes Power over Cable (PoC) capability and bi-directional IR and RS232 pass-through for remote control. The kit is supplied with a 24 V / 1 A Euro 2‑pin power adapter and consists of two compact black units suitable for permanent AV installations and portable setups.

Advantages

The kit delivers reliable long-distance HDMI extension using economical Ethernet cabling (Cat5e/Cat6, UTP/SSTP/SFTP), reducing the need for costly long HDMI runs or multiple repeaters. PoC simplifies installation by allowing one adapter to power both units, while IR and RS232 pass-through maintain control of source and display devices from remote locations. The units are HDCP-compliant and require no additional software, offering straightforward plug-and-play operation.

Suitable for

Digital signage and retail displays
Conference rooms and corporate AV systems
Classrooms and lecture halls
Home theatre systems and media players
Trade shows and temporary AV installations

Key specifications

Video support: up to 4K (4096×2160) at 30 Hz to 40 m; 1080p to 70 m
Transmission medium: single Cat5e/Cat6 cable (UTP, SSTP or SFTP)
Control interfaces: bi-directional IR and RS232 pass-through
Power: 24 V / 1 A adapter included; Power over Cable (PoC) supported
Compatibility: HDMI source to HDMI display, HDCP compliant

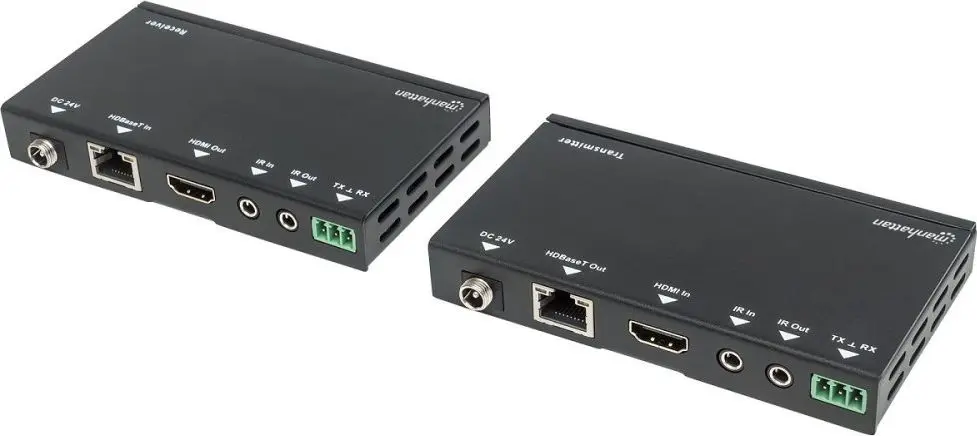

Enclosure: compact black transmitter and receiver
Weight: approximately 0.6 kg (kit)

How to use

Connect the HDMI output of your source device (Blu‑ray player, set‑top box, console, PC, etc.) to the transmitter unit and connect the receiver unit to the display using standard HDMI cables. Use a single Cat5e or Cat6 cable to link transmitter and receiver. Plug the supplied 24 V / 1 A adapter into the designated unit; PoC enables powering of the remote unit over the Ethernet cable when supported. If required, connect IR emitters/receivers or RS232 cables to the respective 3.5 mm and serial ports to enable remote control. No driver installation is necessary—once connected, the system negotiates video resolution automatically within supported ranges.

Usage recommendations

For optimal performance, use high-quality Cat6 or better cable, keep cable runs within the specified distances for the desired resolution, and terminate cables properly. Avoid routing Ethernet runs alongside high-voltage lines or strong EMI sources. When using 4K at 30 Hz, verify display and source compatibility and ensure HDCP-enabled content is supported by both ends.

Specifications

Weight:: 0.6 kg
Product colour:: Black

All features

Connectivity technology:: Wired

Ports & interfaces

DC-in jack:: Yes
HDMI in:: 1
Number of HDMI outputs:: 1
RJ-45 input ports:: 1
RJ-45 output ports:: 1

Technical details

Type:: AV transmitter & receiver
Material:: Metal
Maximum transfer distance:: 100 m
HDBaseT certified:: Yes

Power

Input current:: 1
Operating voltage:: 24 V

Weight & dimensions

Weight:: 0.6 kg
Height:: 17 mm
Width:: 65 mm
Depth:: 115 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 96
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40

Certificates

Certification:: CE, FCC, RoHS2

Packaging content

AC adapter included:: Yes
Quick start guide:: Yes
Mounting kit:: Yes

Features

Plug and Play:: Yes
LED indicators:: Y
Maximum resolution:: 4096 x 2160
Product colour:: Black
Supported graphics resolutions:: 4096 x 2160, 3840 x 2160
Supported video modes:: 2160p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Bandwidth:: 340 MHz
HDCP:: Yes
Baud rate:: 115 Kbit/s

Network

Cable types supported:: Cat5e, Cat6
