HDMI Splitter 2-Port Manhattan 207652

The Manhattan 2-Port HDMI Splitter (model 207652) distributes a single HDMI source signal to two HDMI displays simultaneously, supporting resolutions up to 1920 x 1200 (including 1080p). Compact and lightweight, the unit includes a 0.7 m USB-A power cable and draws approximately 5W. Its durable black plastic housing and compliance with HDMI, HDCP 1.0–1.2 and DVI 1.0 make it suitable for continuous AV use in a variety of environments.

Advantages

The 2-port HDMI Splitter provides a simple, no-configuration solution to duplicate HDMI audio/video from devices such as Blu-ray players, set-top boxes, game consoles and media players to two displays. A built-in signal booster enhances output strength for longer cable runs, and the unit supports cascading up to three levels to expand display counts. Installation requires only HDMI cables (not included) and the supplied USB power connection.

Suitable for

• Classrooms and lecture halls
• Trade shows and exhibition booths
• Conference rooms and video conferencing setups
• Retail digital signage and point-of-sale displays
• Remote equipment cabinets where source devices are stored separately

Key specifications

• Manufacturer: MANHATTAN, model 207652 (EAN: 0766623207652)
• Supported resolution: up to 1920 x 1200 (including 1080p)
• Video ports: HDMI, 2 outputs (1 input + 2 outputs)
• Compliance: HDMI, HDCP 1.0/1.1/1.2, DVI 1.0
• Power: USB-A power cable included (0.7 m), typical consumption 5W
• Dimensions: 54 x 60 x 20 mm; Weight: 0.04 kg
• Colour: Black; Housing: plastic
• Warranty: 3 years

How to use

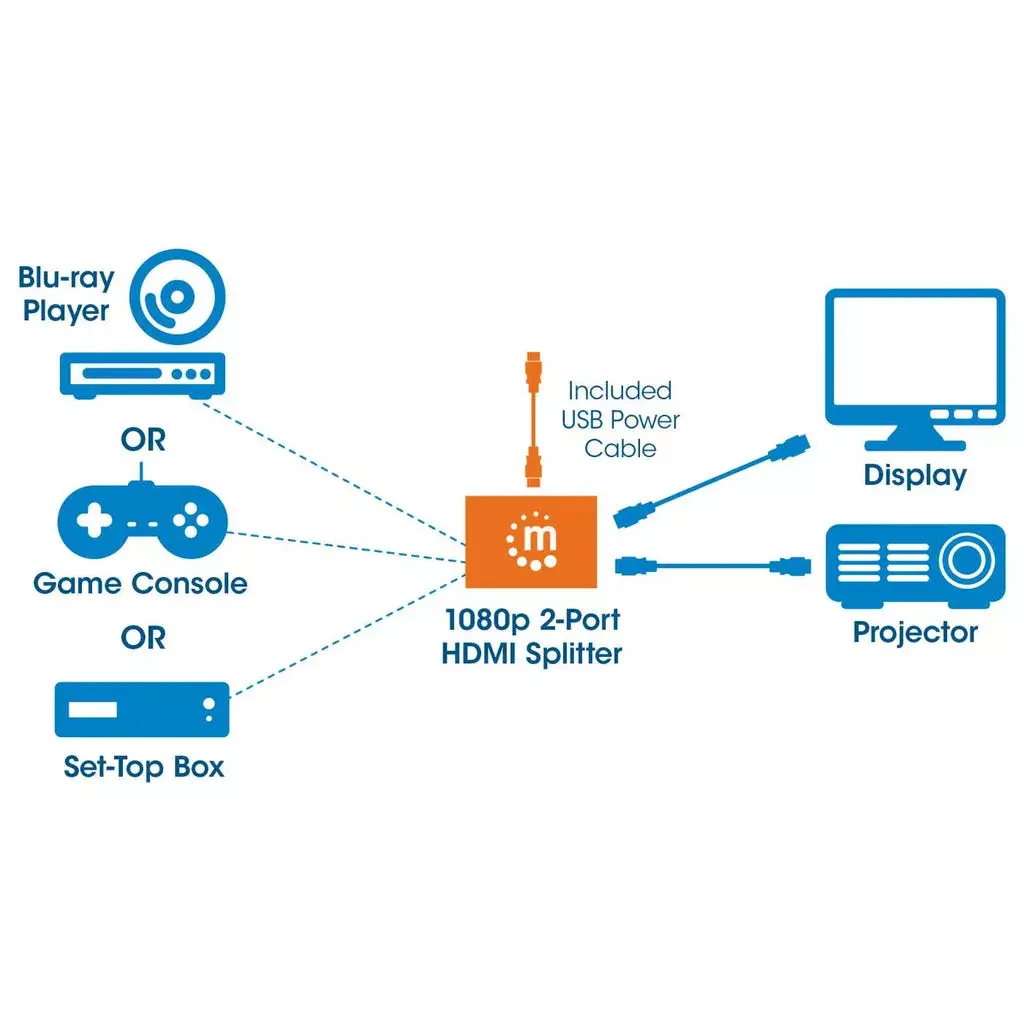

Connect the HDMI output of your source device (Blu-ray player, set-top box, PC, game console) to the splitter’s HDMI input using an HDMI cable. Connect up to two HDMI displays to the splitter’s HDMI outputs. Plug the supplied USB-A power cable into a USB power source to power the splitter. Turn on source and displays; the splitter will mirror the source signal to both connected displays without additional software or configuration. For larger installations, cascade additional splitters (up to three levels) following the same connection steps.

Usage recommendations

Use high-quality HDMI cables appropriate for your required length to maintain signal integrity. If displays are located far from the splitter, place the splitter closer to the displays or use the built-in booster and consider active HDMI cables or repeaters for longer runs. Verify that connected displays support the intended resolution and HDCP version to ensure proper playback.
